Siemens Front connector 6ES7392-1AJ00-0AA0
6ES7392-1AJ00-0AA0

Siemens
Siemens Front connector 6ES7392-1AJ00-0AA0

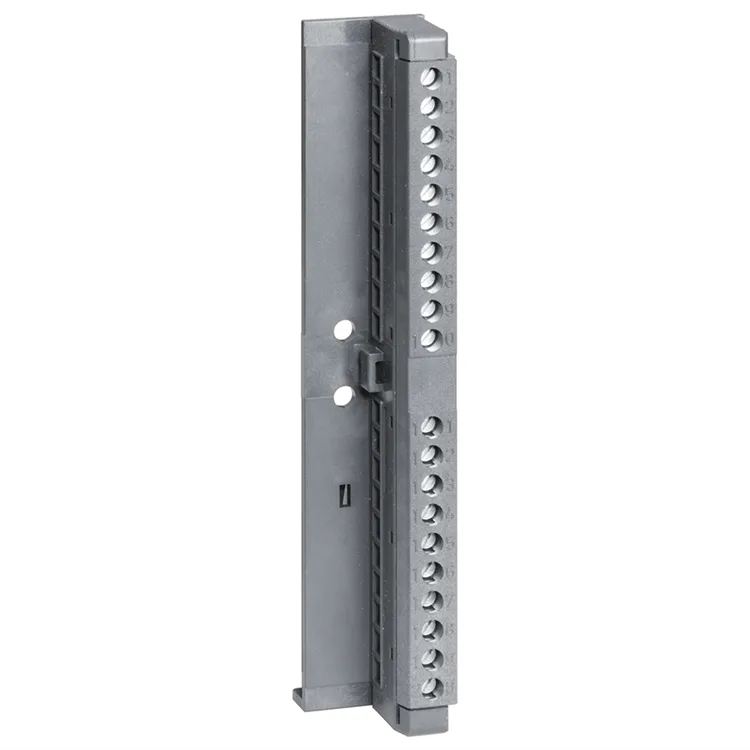

Siemens 6ES7392-1AJ00-0AA0 Front connector. For SIMATIC S7-300 signal modules. Supplied with full traceability and documentation. Worldwide shipping from stock.…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7392-1AJ00-0AA0 |
| Official Product Name | SIMATIC S7-300 Front Connector, 20-pole, screw terminals |
| Applicable System | SIMATIC S7-300 signal modules |
| Product Type | Front connector (spare part) |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Number of Poles | 20 |
| Connection Method | Screw terminals |
| Number of Lines per Connection | 1, or 2 conductors up to 1.5 mm2 (total) in a shared ferrule |
| Conductor Cross-Section (solid) | 0.25 ... 1.5 mm2 |
| Conductor Cross-Section (flexible) | 0.25 ... 1.5 mm2 |
| Conductor Cross-Section (AWG) | 24 ... 16 |
| Stripped Length | 6 mm |
| Tightening Torque | 0.4 ... 0.7 N·m |
| Tool | Screwdriver, conical design, 3 to 3.5 mm |
| Dimensions (W x H x D) | 23 x 131 x 36 mm |
| Weight | approx. 70 g |
| Ambient Temperature (operation) | 0°C ... +60°C |
| Ambient Temperature (storage/transport) | -40°C ... +70°C |
| Product Type Designation | Front connector |
Product Description
Siemens 6ES7392-1AJ00-0AA0 Front connector. For SIMATIC S7-300 signal modules. Supplied with full traceability and documentation. Worldwide shipping from stock.
It connects sensors and actuators to the I/O module through screw terminals, with each terminal accepting one conductor or two conductors up to 1.5 mm2 total in a shared ferrule. The connector supports solid and flexible conductors from 0.25 to 1.5 mm2 (AWG 24-16) and is tightened to 0.4-0.7 N·m. It measures 23 x 131 x 36 mm and weighs about 70 g. Wiring the field signals to a removable front connector lets technicians swap a module without disturbing existing field wiring. The Siemens 6ES7392-1AJ00-0AA0 is a 20-pole front connector for SIMATIC S7-300 signal modules.
Basic Product Information
- Screw terminal connection for solid and flexible conductors
- Accepts 0.25 to 1.5 mm2 (AWG 24-16) conductors with 6 mm stripped length
- Defined tightening torque of 0.4-0.7 N·m for repeatable, secure connections
- Allows quick module replacement without re-wiring the field side
- 20-pole front connector for SIMATIC S7-300 signal modules
Technical Specifications
Version & Model Difference
The 6ES7392-1AJ00-0AA0 is the 20-pole screw-type front connector for S7-300 signal modules. The 40-pole 6ES7392-1BJ00-0AA0 is used for 32-channel and analog modules, and other variants offer different pole counts or connection types, so select the version that matches the module slot.
Application Scenarios
- Wiring digital and analog signal modules in SIMATIC S7-300 control cabinets
- Field wiring of sensors, limit switches and actuators to I/O modules
- Pre-wiring spare connectors for fast module changeover during maintenance
- Machine building, material handling and process control panels using S7-300
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the Siemens 6ES7392-1AJ00-0AA0?
It is a 20-pole screw-type front connector for SIMATIC S7-300 signal modules, used to connect field wiring to the I/O module.
What conductor sizes and torque are required?
It accepts 0.25 to 1.5 mm2 (AWG 24-16) conductors with a 6 mm stripped length and a tightening torque of 0.4 to 0.7 N·m.
Is it compatible with 32-channel S7-300 modules?
No. This 20-pole version suits 16-channel modules; 32-channel and analog modules use the 40-pole 6ES7392-1BJ00-0AA0.
What are the dimensions and weight?
The connector measures 23 x 131 x 36 mm and weighs approximately 70 g.
