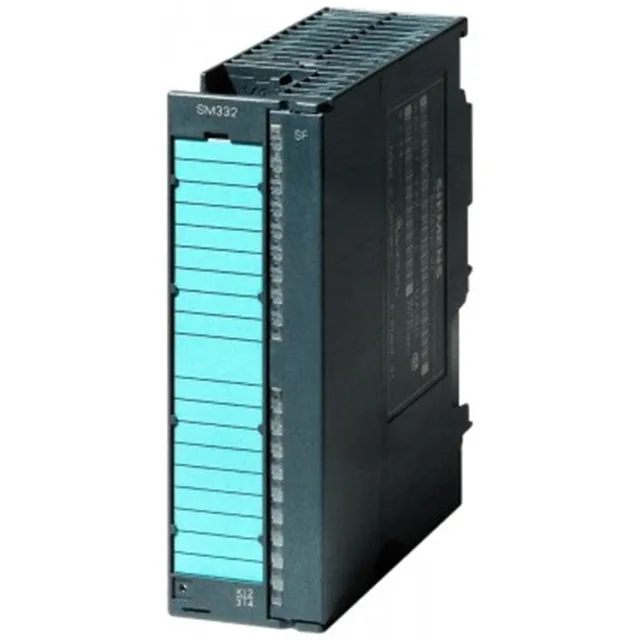

Siemens Analog Output Module 6ES7332-7ND02-0AB0
6ES7332-7ND02-0AB0

Siemens
Siemens Analog Output Module 6ES7332-7ND02-0AB0
Siemens 6ES7332-7ND02-0AB0 Analog Output Module. For SIMATIC S7-300 PLC. Supplied with full traceability and documentation. Worldwide shipping from stock. Pric…
Quoted price from our sales team
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7332-7ND02-0AB0 |
| Official Product Name | SIMATIC S7 Analog Output Module 4 AO |
| Applicable System | SIMATIC S7-300 PLC |
| Product Type | Analog Output Module |
| Equivalent Standard | cross-reference available on request |
| Product Status | Active |
| Lifecycle note | Active / Available |
| Resolution | 16 bit |
| Output signal ranges | 0-10 V, 1-5 V, plus/minus 10 V; plus/minus 20 mA, 0-20 mA, 4-20 mA |
| Isolation | Galvanically isolated |
| Dimensions (W x H x D) | 40 x 125 x 117 mm |
| Weight | approx 0.22 kg |
| Number of outputs | 4 analog outputs |
Product Description
Siemens 6ES7332-7ND02-0AB0 Analog Output Module. For SIMATIC S7-300 PLC. Supplied with full traceability and documentation. Worldwide shipping from stock.
Basic Product Information
- 16-bit resolution for high-accuracy output
- Voltage and current signal ranges (0-10 V, 1-5 V, plus/minus 10 V, plus/minus 20 mA, 0-20 mA, 4-20 mA)
- Galvanic isolation between outputs and backplane
- Diagnostic and limit-value monitoring
- 4 isolated analog output channels
Technical Specifications
Version & Model Difference
- SM332 4 AO family includes 12-bit (6ES7332-5HB01-0AB0), 13-bit (6ES7332-5HD01-0AB0) and 16-bit (6ES7332-7ND02-0AB0) versions. This is the 16-bit version.
Application Scenarios
- Closed-loop control of valves, drives and actuators
- Process setpoint generation
- Test and measurement signal generation
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
How many outputs does the 6ES7332-7ND02-0AB0 have?
It provides 4 galvanically isolated analog output channels with 16-bit resolution.
Which signal ranges are supported?
It supports voltage ranges 0-10 V, 1-5 V and plus/minus 10 V, plus current ranges plus/minus 20 mA, 0-20 mA and 4-20 mA.
Is the module isolated?
Yes, the outputs are galvanically isolated from the backplane for improved signal integrity.
What controller does it fit?
It is designed for the SIMATIC S7-300 PLC system and mounts on the S7-300 rail.
