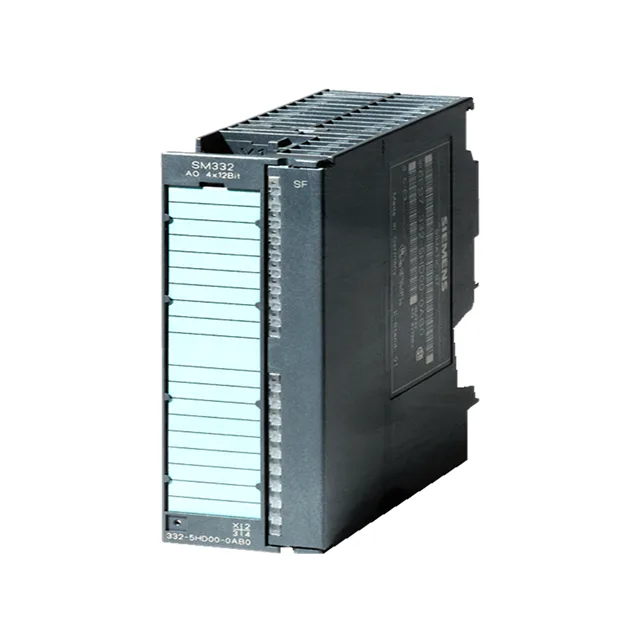

Siemens Analog Output Module 6ES7332-5HF00-0AB0
6ES7332-5HF00-0AB0

Siemens
Siemens Analog Output Module 6ES7332-5HF00-0AB0
Siemens 6ES7332-5HF00-0AB0 Analog Output Module. For SIMATIC S7-300 / ET 200M. Supplied with full traceability and documentation. Worldwide shipping from stock.…
Quoted price from our sales team
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7332-5HF00-0AB0 |
| Official Product Name | SIMATIC S7-300 Analog Output SM 332 |
| Applicable System | SIMATIC S7-300 / ET 200M |
| Product Type | Analog Output Module |
| Equivalent Standard | Contact us for details |
| Product Status | Mature |
| Lifecycle note | Phase-out announced (spare part / surplus stock) |
| Resolution | 11/12 bits |
| Output ranges | Voltage: +/-10V, 0-10V, 1-5V; Current: +/-20mA, 0-20mA, 4-20mA |
| Load impedance | Voltage min. 1 kOhm; Current max. 500 Ohm |
| Conversion time | 0.8 ms per channel (datasheet) |
| Isolation | Channel to backplane bus, 500 V DC test |
| Supply voltage | 24 V DC (L+); 5 V DC backplane |
| Power loss | Typ. 6 W |
| Dimensions | 40 x 125 x 117 mm |
| Weight | Approx. 0.272 - 0.326 kg |
| Country of origin | Germany |
| Number of outputs | 8 analog outputs |
Product Description
Siemens 6ES7332-5HF00-0AB0 Analog Output Module. For SIMATIC S7-300 / ET 200M. Supplied with full traceability and documentation. Worldwide shipping from stock.
Basic Product Information
- 11/12-bit resolution with configurable ranges
- Removable/insertable with active backplane bus (hot swap)
- 8 isolated analog outputs (voltage or current)
Technical Specifications
Version & Model Difference
- Product phase-out announced (PM400). For new designs Siemens recommends S7-1500 analog output modules; this module remains available as spare part.
Application Scenarios
- Setpoint output for control valves and variable-speed drives
- Process signal generation in S7-300 retrofits
- Analog actuator control in factory and process automation
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
How many analog outputs does it have?
It provides 8 isolated analog outputs.
What signal types are supported?
Voltage (+/-10V, 0-10V, 1-5V) and current (+/-20mA, 0-20mA, 4-20mA), each channel configurable.
What is the resolution?
11/12 bits.
Does it support diagnostics?
Yes, including wire-break, short-circuit and overload diagnostics with SF LED and OB82.
