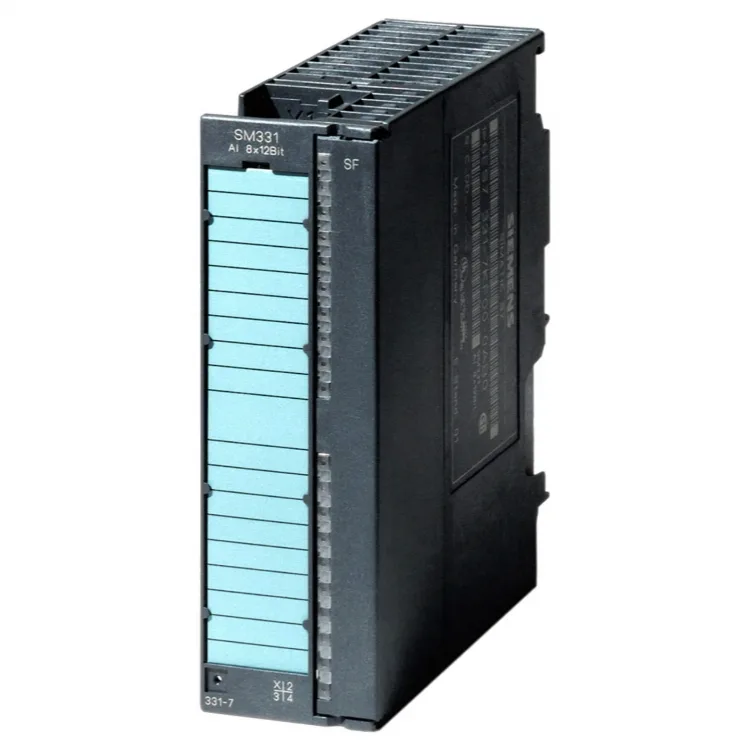

Siemens Analog Input Module 6ES7331-7NF00-0AB0
6ES7331-7NF00-0AB0

Siemens
Siemens Analog Input Module 6ES7331-7NF00-0AB0
Siemens 6ES7331-7NF00-0AB0 Analog Input Module. For SIMATIC S7-300 PLC. Supplied with full traceability and documentation. Worldwide shipping from stock. Price…
Quoted price from our sales team
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7331-7NF00-0AB0 |
| Official Product Name | SIMATIC S7-300 SM331 Analog Input Module 8 AI 16-bit |
| Applicable System | SIMATIC S7-300 PLC |
| Product Type | Analog Input Module |
| Equivalent Standard | cross-reference available on request |
| Product Status | Active |
| Lifecycle note | Active / Available |
| Resolution | 16 bit |
| Conversion time | 55 ms |
| Signal ranges | plus/minus 5 V, plus/minus 10 V, 1-5 V; plus/minus 20 mA, 0-20 mA, 4-20 mA |
| Isolation | Galvanically isolated |
| Weight | 0.311 kg |
| Number of inputs | 8 analog inputs |
Product Description
Siemens 6ES7331-7NF00-0AB0 Analog Input Module. For SIMATIC S7-300 PLC. Supplied with full traceability and documentation. Worldwide shipping from stock.
Basic Product Information
- 16-bit resolution with 55 ms conversion time
- Voltage and current measuring ranges
- Galvanic isolation between channels and backplane
- Diagnostic and limit-value interrupts
- 8 isolated analog input channels
Technical Specifications
Version & Model Difference
- SM331 8 AI family: 13-bit (6ES7331-7KB02-0AB0), 14-bit (6ES7331-7HF01-0AB0), 16-bit (6ES7331-7NF00-0AB0). This is the 16-bit high-accuracy version.
Application Scenarios
- High-accuracy process measurement
- Temperature, pressure and flow acquisition
- S7-300 analog signal conditioning
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
How many channels and what resolution?
It provides 8 galvanically isolated analog input channels with 16-bit resolution.
What conversion time applies?
Each channel converts in approximately 55 ms; this variant prioritizes accuracy over speed.
Which signal ranges are supported?
Voltage ranges plus/minus 5 V, plus/minus 10 V and 1-5 V, plus current ranges plus/minus 20 mA, 0-20 mA and 4-20 mA.
Is the module isolated?
Yes, the channels are galvanically isolated from the backplane for improved noise immunity.
