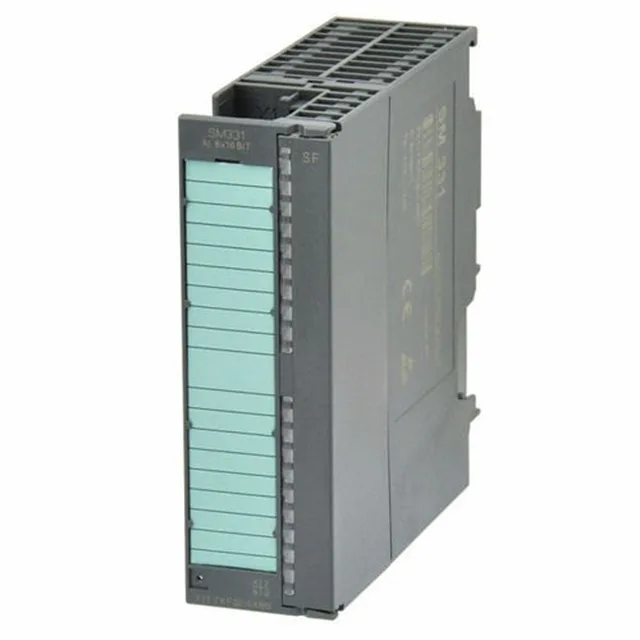

Siemens Analog Input Module 6ES7331-7HF01-0AB0
6ES7331-7HF01-0AB0

Siemens
Siemens Analog Input Module 6ES7331-7HF01-0AB0
Siemens 6ES7331-7HF01-0AB0 Analog Input Module. For SIMATIC S7-300 PLC. Supplied with full traceability and documentation. Worldwide shipping from stock. Price…
Quoted price from our sales team
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7331-7HF01-0AB0 |
| Official Product Name | SIMATIC S7-300 SM331 Analog Input Module 8 AI |
| Applicable System | SIMATIC S7-300 PLC |
| Product Type | Analog Input Module |
| Equivalent Standard | cross-reference available on request |
| Product Status | Active |
| Lifecycle note | Active / Available |
| Resolution | 14 bit |
| Conversion time | 0.052 ms per channel |
| Isolation | Galvanically isolated |
| Dimensions (W x H x D) | 40 x 125 x 117 mm |
| Weight | approx 0.23 kg |
| Number of inputs | 8 analog inputs |
Product Description
Siemens 6ES7331-7HF01-0AB0 Analog Input Module. For SIMATIC S7-300 PLC. Supplied with full traceability and documentation. Worldwide shipping from stock.
Basic Product Information
- 14-bit resolution with 0.052 ms conversion time per channel
- Galvanic isolation between channels and backplane
- Configurable for voltage and current signals
- Diagnostic interrupts and programmable limit-value monitoring
- 8 isolated analog input channels
Technical Specifications
Version & Model Difference
- SM331 8 AI family includes the 13-bit (6ES7331-7KB02-0AB0), 14-bit (6ES7331-7HF01-0AB0) and 16-bit (6ES7331-7NF00-0AB0) variants. This is the 14-bit version.
Application Scenarios
- Process measurement of temperature, pressure and flow
- Machine and plant data acquisition
- Industrial analog signal conditioning for S7-300
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
How many channels does the 6ES7331-7HF01-0AB0 provide?
It provides 8 galvanically isolated analog input channels with 14-bit resolution.
What is the conversion speed?
The module converts each channel in 0.052 ms, enabling fast analog acquisition for S7-300 controllers.
Which signal types are supported?
Voltage and current signals are configurable per channel; refer to the module manual for the exact measuring ranges.
Is the module isolated?
Yes, the channels are galvanically isolated from the backplane and from each other for improved noise immunity.
