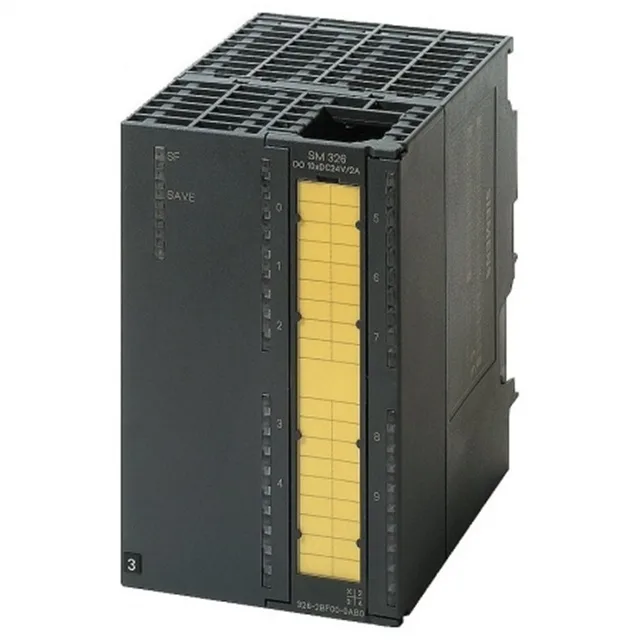

Siemens Fail-Safe Digital Output Module 6ES7326-2BF10-0AB0
6ES7326-2BF10-0AB0

Siemens
Siemens Fail-Safe Digital Output Module 6ES7326-2BF10-0AB0
Siemens 6ES7326-2BF10-0AB0 Fail-Safe Digital Output Module. For SIMATIC S7-300 F-Systems. Supplied with full traceability and documentation. Get a quote. Price…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7326-2BF10-0AB0 |
| Official Product Name | SIMATIC SM 326 F-DO 10×24 V DC / 2 A PP Fail-Safe Output |
| Applicable System | SIMATIC S7-300 F-Systems (with F-CPU) |
| Product Type | Fail-Safe Digital Output Module (SM 326) |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Safety rating | SIL 3 (IEC 61508), Cat. 4 / PL e (ISO 13849) |
| Output current '1' | Rated 2 A, range 7 mA to 2.4 A |
| Output voltage '1' | Min L+ (-1.0 V) |
| Load voltage | 2L+, 3L+ rated 24 V DC |
| Supply voltage 1L+ | 24 V DC, reverse-polarity protected |
| Switching frequency | Resistive / inductive 25 Hz, lamp 10 Hz |
| Total current per group | Horiz. up to 40 °C max 10 A, up to 60 °C max 6 A |
| Backplane current (5 V DC) | Max 100 mA |
| Power loss | Typ. 6 W |
| Cable length | Shielded max 1000 m, unshielded max 600 m |
| Isolation test | 370 V for 1 min |
| Front connector | 1x 40-pin |
| Dimensions (W×H×D) | 40 × 125 × 120 mm |
| Weight | Approx. 330 g |
| Operating temperature | 0 to 60 °C |
| Number of outputs | 10 F-DO, 24 V DC / 2 A, push-pull (PP) |
Product Description
4 / PL e. It communicates with a fail-safe CPU over the S7-300 backplane via PROFIsafe and includes load-voltage monitoring (LVV) and diagnostic alarms for safe actuator control. Typical loads are emergency-shutdown valves, safety contactors and braking devices in machine and process safety applications. The 6ES7326-2BF10-0AB0 is the SIMATIC S7-300 SM 326 fail-safe digital output module providing 10 push-pull 24 V DC outputs rated 2 A each for safety-rated load switching up to SIL 3 / Cat.
Basic Product Information
- Load-voltage monitoring (LVV) and diagnostic alarm for safe actuator control
- PROFIsafe communication with the F-CPU over the S7-300 backplane bus
- Channel-to-channel and channel-to-backplane isolation for safety integrity
- 10 fail-safe push-pull (PP) 24 V DC outputs, 2 A per channel, up to SIL 3 / Cat. 4 / PL e
Technical Specifications
Version & Model Difference
The 6ES7326-2BF10-0AB0 is the 10-channel fail-safe digital output module of the SM 326 F-family, rated 2 A push-pull with LVV. It requires a fail-safe CPU and certified safety engineering (STEP 7 Safety Advanced / S7 Distributed Safety); the matching F-DI counterpart is 6ES7326-1BK02-0AB0.
Application Scenarios
- Emergency shutdown (ESD) valves and safety contactors
- Safe braking and power-disconnect for machine tools and robots
- Safety-door, light-curtain and two-hand control output switching
- Process safety per IEC 61511 / ISO 13849-1
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What safety level does 6ES7326-2BF10-0AB0 achieve?
It reaches SIL 3 per IEC 61508 and Category 4 / PL e per ISO 13849-1, certified for the highest safety demand levels.
Can it drive AC loads?
No. It is rated for 24 V DC loads only (2 A per channel); use external safety contactors for AC switching.
What engineering software is required?
STEP 7 with S7 Distributed Safety, or TIA Portal with STEP 7 Safety Advanced; a fail-safe CPU is mandatory.
Does it monitor the load voltage?
Yes. It includes load-voltage monitoring (LVV) and diagnostic alarms, and channel isolation supports safe switching integrity.
