Siemens Fail-Safe Digital Input Module 6ES7326-1BK02-0AB0
6ES7326-1BK02-0AB0

Siemens

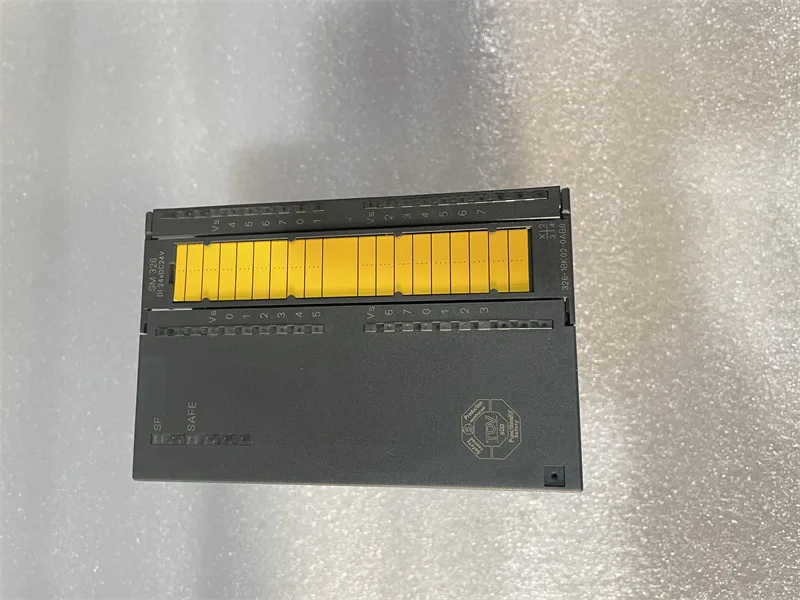

Siemens Fail-Safe Digital Input Module 6ES7326-1BK02-0AB0
Siemens 6ES7326-1BK02-0AB0 Fail-Safe Digital Input Module. For SIMATIC S7-300 F-Systems. Supplied with full traceability and documentation. Get a quote. Price …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7326-1BK02-0AB0 |
| Official Product Name | SIMATIC SM 326 F-DI 24×24 V DC Fail-Safe Digital Input |
| Applicable System | SIMATIC S7-300 F-Systems (with F-CPU) |
| Product Type | Fail-Safe Digital Input Module (SM 326) |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Safety rating | SIL 3 (IEC 61508), Cat. 4 / PL e (ISO 13849) |
| Input voltage '1' / '0' | +11 to +30 V / -30 to +5 V |
| Input current | '1' typ. 10 mA, '0' max 2 mA |
| Input delay | Max 3.4 ms (0->1 and 1->0) |
| Sensor supply | 4 isolated outputs, 400 mA rated |
| Backplane current (5 V DC) | Max 100 mA |
| Power loss | Typ. 10 W |
| Cable length | Shielded max 200 m, unshielded max 100 m |
| Front connector | 1x 40-pin |
| Dimensions (W×H×D) | 80 × 125 × 120 mm |
| Weight | Approx. 0.49 kg |
| Operating temperature | 0 to 60 °C |
| Product lifecycle | Product cancellation (spare part) |
| Number of inputs | 24 F-DI, 24 V DC |
Product Description
4 / PL e. It communicates with a fail-safe CPU over the S7-300 backplane using PROFIsafe and performs internal short-circuit, wire-break and discrepancy monitoring for single- or two-channel sensor wiring. The module is intended for emergency-stop, safety-door and light-curtain interfaces in machine and process safety systems. The 6ES7326-1BK02-0AB0 is the SIMATIC S7-300 SM 326 fail-safe digital input module providing 24 isolated 24 V DC inputs for safety-rated signal acquisition up to SIL 3 / Cat.
Basic Product Information
- Internal diagnostics: short-circuit detection, wire-break detection and two-channel discrepancy monitoring
- PROFIsafe communication with the F-CPU over the S7-300 backplane bus
- Supports single-channel and redundant two-channel sensor wiring
- 24 fail-safe 24 V DC digital inputs up to SIL 3 (IEC 61508) / Cat. 4 / PL e
Technical Specifications
Version & Model Difference
The 6ES7326-1BK02-0AB0 is the 24-channel fail-safe digital input module of the SM 326 F-family. It must be paired with a fail-safe CPU (e.g. CPU 315F / 317F / 319F) and STEP 7 with S7 Distributed Safety or TIA Portal STEP 7 Safety Advanced; a standard non-F CPU cannot operate it. The matching F-DO counterpart is 6ES7326-2BF10-0AB0.
Application Scenarios
- Emergency-stop circuits and safety-door monitoring on machines
- Light-curtain and two-hand control interfaces
- Safety-rated signal acquisition in automotive, packaging and press lines
- Process safety and machine guarding per IEC 62061 / ISO 13849-1
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What safety level does 6ES7326-1BK02-0AB0 achieve?
It reaches SIL 3 per IEC 61508 and Category 4 / Performance Level e per ISO 13849-1, suitable for the highest safety demand levels.
Can it be used with a standard S7-300 CPU?
No. It requires a fail-safe CPU (F-CPU) and F-capable firmware/engineering; it communicates via PROFIsafe over the backplane bus.
What software configures this module?
Use STEP 7 with the S7 Distributed Safety add-on, or TIA Portal with STEP 7 Safety Advanced.
Does it support two-channel sensor wiring?
Yes. It supports single-channel and redundant two-channel wiring with internal discrepancy-time monitoring for two-channel inputs.
