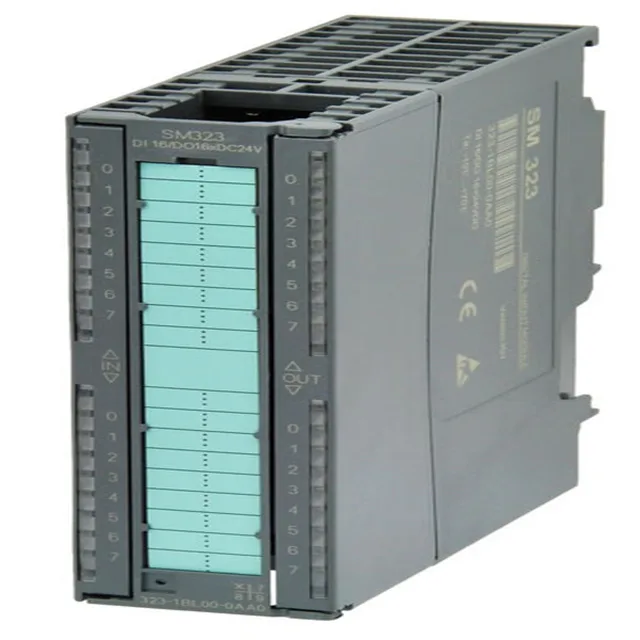

Siemens Combined Digital Input 6ES7323-1BL00-0AA0
6ES7323-1BL00-0AA0

Siemens
Siemens Combined Digital Input 6ES7323-1BL00-0AA0
Siemens 6ES7323-1BL00-0AA0 Combined Digital Input. For SIMATIC S7-300 PLC. Supplied with full traceability and documentation. Worldwide shipping from stock. Pr…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7323-1BL00-0AA0 |
| Official Product Name | SIMATIC S7-300, Digital I/O Module SM 323, 16 DI / 16 DO, 24 V DC, 0.5 A, 1 x 40-pole |
| Applicable System | SIMATIC S7-300 PLC |
| Product Type | Combined Digital Input/Output Module (SM 323) |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Module Type | SM 323 digital I/O module |
| Number of Digital Inputs | 16 |
| Number of Digital Outputs | 16 |
| Rated Load Voltage | 24 V DC (permissible 20.4 ... 28.8 V DC) |
| Rated Output Current | 0.5 A per channel (permissible 5 mA ... 0.6 A) |
| Total Current per Group | 4 A (horizontal, up to 40 C; 3 A up to 60 C) |
| Input Signal "1" | 13 V to 30 V |
| Input Signal "0" | -30 V to +5 V |
| Input Current (typ.) | 7 mA |
| Input Delay | 1.2 ms to 4.8 ms |
| Output Delay 0 to 1 / 1 to 0 | max. 100 us / max. 500 us |
| Short-Circuit Protection | Yes (electronic, typ. 1 A) |
| Lamp Load | max. 5 W |
| Load Resistance Range | 48 Ohm to 4 kOhm |
| Switching Frequency (resistive / inductive / lamp) | max. 100 Hz / 0.5 Hz / 10 Hz |
| Isolation Test Voltage | 500 V DC (optocoupler) |
| Backplane Bus Current | max. 80 mA |
| Power Loss (typ.) | 6.5 W |
| Front Connector | 1 x 40-pole |
| Dimensions (W x H x D) | 40 mm x 125 mm x 120 mm |
| Weight | approx. 260 g |
| Protection Rating | IP20 |
| Product Family | SIMATIC S7-300 |
Product Description
Siemens 6ES7323-1BL00-0AA0 Combined Digital Input. For SIMATIC S7-300 PLC. Supplied with full traceability and documentation. Worldwide shipping from stock.
It packs 16 digital inputs and 16 digital outputs into a single 40 mm wide module, with the outputs rated 24 V DC and 0.5 A each and a total current of 4 A per group. The inputs follow the IEC 61131 type 1 characteristic, while the outputs are short-circuit proof with electronic protection at roughly 1 A response threshold. Both sides are optically isolated from the backplane bus, and the module uses a single 40-pole front connector for field wiring. It is widely selected to replace or extend mixed I/O in existing S7-300 control systems. The Siemens 6ES7323-1BL00-0AA0 is a combined digital input/output module from the SIMATIC S7-300 range, designated SM 323.
Basic Product Information
- 24 V DC outputs rated 0.5 A per channel with 4 A total current per group
- Electronic short-circuit protection on the outputs, with a typical 1 A response threshold
- Optically isolated from the backplane bus; inputs isolated in groups of 16 and outputs in groups of 8
- IEC 61131 type 1 input characteristic with a typical 7 mA input current
- Single 40-pole front connector with a green status LED per channel
- 16 digital inputs and 16 digital outputs in a single 40 mm wide S7-300 module
Technical Specifications
Version & Model Difference
This module, 6ES7323-1BL00-0AA0, is the 16 DI / 16 DO version of the SM 323. The smaller variant 6ES7323-1BH01-0AA0 offers 8 DI and 8 DO, so this model doubles the channel count while keeping the same 24 V DC / 0.5 A rating. The module must be fitted with the correct 40-pole front connector. Always confirm the full article number before ordering a replacement.
Application Scenarios
- Mixed digital signal control in S7-300 automation systems
- Driving relays, contactors, solenoid valves and pilot lamps
- Reading limit switches, pushbuttons and proximity sensors
- Maintenance, replacement and retrofit of installed S7-300 cabinets
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
How many channels does the 6ES7323-1BL00-0AA0 provide?
It provides 16 digital inputs and 16 digital outputs on a single S7-300 module.
What is the output current rating?
Each output is rated 24 V DC and 0.5 A, with a maximum total current of 4 A per group when mounted horizontally up to 40 C.
What connector is required?
The module needs one 40-pole front connector for the field wiring.
Are the inputs and outputs isolated from the backplane bus?
Yes. Both the inputs and outputs are optically isolated from the backplane bus, with the inputs isolated in groups of 16 and the outputs in groups of 8.
