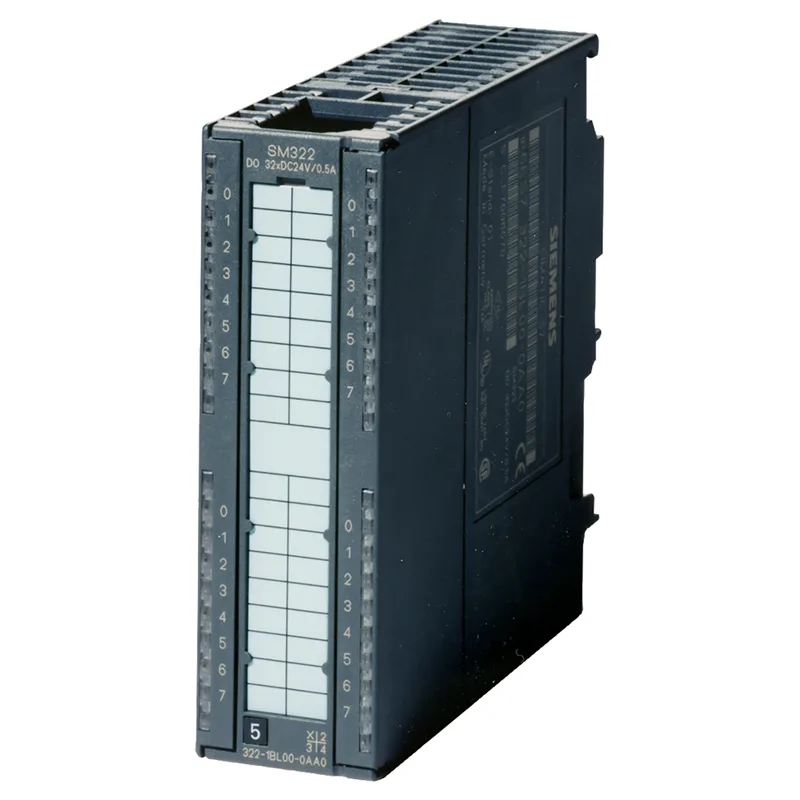

Siemens Digital Output Module 6ES7322-1BF01-0AA0
6ES7322-1BF01-0AA0

Siemens
Siemens Digital Output Module 6ES7322-1BF01-0AA0
Siemens 6ES7322-1BF01-0AA0 Digital Output Module. For SIMATIC S7-300 PLC. Supplied with full traceability and documentation. Worldwide shipping from stock. Pri…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7322-1BF01-0AA0 |
| Official Product Name | SIMATIC S7-300, Digital Output SM 322, 8 DO, 24 V DC, 2 A, 1 x 20-pin, Optically Isolated |
| Applicable System | SIMATIC S7-300 PLC (standard rack and backplane bus) |
| Product Type | Digital Output Module (SM 322) |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Module Type | SM 322 digital output module |
| Number of Digital Outputs | 8 |
| Output Type | Transistor (electronic), optically isolated |
| Rated Load Voltage | 24 V DC (permissible 20.4 V ... 28.8 V DC) |
| Rated Output Current | 2 A per channel |
| Minimum Load Current | 5 mA |
| Total Current per Group | 4 A (horizontal and vertical installation) |
| Output Delay 0 to 1 | Max. 100 us |
| Output Delay 1 to 0 | Max. 500 us |
| Switching Frequency (resistive) | Max. 100 Hz |
| Switching Frequency (inductive) | Max. 0.5 Hz |
| Switching Frequency (lamp load) | Max. 10 Hz |
| Power Loss (typ.) | 6.8 W |
| Isolation | Optocoupler; channels isolated in groups of 4 |
| Front Connector | 20-pin (required) |
| Cable Length (shielded / unshielded) | 1000 m / 600 m |
| Dimensions (W x H x D) | 40 mm x 125 mm x 120 mm |
| Weight | Approx. 190 g |
| Protection Rating | IP20 |
| Product Family | SIMATIC S7-300 |
Product Description
Siemens 6ES7322-1BF01-0AA0 Digital Output Module. For SIMATIC S7-300 PLC. Supplied with full traceability and documentation. Worldwide shipping from stock.
It provides 8 optically isolated transistor outputs for 24 V DC loads, with a rated current of 2 A per channel, which allows it to drive medium-power loads such as solenoids, contactors and relays directly. The module uses a single 20-pin front connector, mounts on a standard S7-300 rack and communicates over the backplane bus. With its higher per-channel current rating, it is commonly selected for maintenance, replacement and retrofit of existing S7-300 control systems. The Siemens 6ES7322-1BF01-0AA0 is a digital output module from the SIMATIC S7-300 series, designated SM 322.
Basic Product Information
- High 2 A rated current per channel for direct driving of medium-power loads
- Electronic short-circuit protection on the outputs
- Potential separation between channels (in groups of 4) and the backplane bus via optocoupler
- Status indicator LED for each output channel
- Single 20-pin front connector with standard 40 mm S7-300 module width
- 8 optically isolated digital outputs for 24 V DC loads
Technical Specifications
Version & Model Difference
This module, 6ES7322-1BF01-0AA0, is distinguished by its 8 outputs rated at 2 A per channel. Other S7-300 SM 322 output modules offer different channel counts and currents, for example the 16-channel 6ES7322-1BH01-0AA0 at 0.5 A and the 32-channel 6ES7322-1BL00-0AA0 at 0.5 A. Because of the higher current rating, this module can drive larger loads directly and may remove the need for intermediate relays. Always confirm the complete article number before replacement.
Application Scenarios
- Switching solenoids, contactors and relay coils
- Driving pilot lamps and medium-power 24 V DC loads
- Factory and process automation control cabinets
- Expanding digital output capacity in existing S7-300 systems
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
How many outputs does the 6ES7322-1BF01-0AA0 provide?
It provides 8 optically isolated digital outputs for 24 V DC loads, each rated at 2 A.
What is the rated current per channel?
The rated output current is 2 A per channel, with a total of 4 A per group. This higher rating lets the module drive medium-power loads directly.
What connector does the module use?
It uses a single 20-pin front connector and mounts on a standard S7-300 rack with a 40 mm module width.
Is the module isolated from the backplane bus?
Yes. The outputs are optically isolated from the backplane bus via an optocoupler, and the channels are isolated from one another in groups of 4.
