Siemens Digital Input Module 6ES7321-7BH01-0AB0
6ES7321-7BH01-0AB0

Siemens

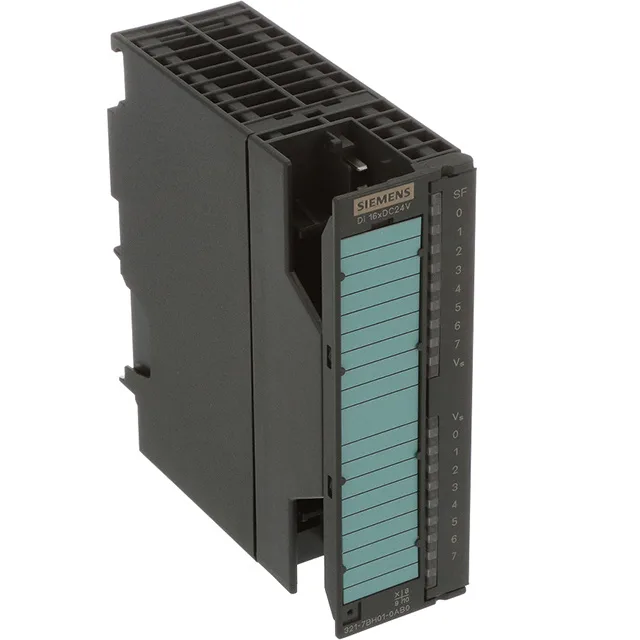

Siemens Digital Input Module 6ES7321-7BH01-0AB0
Siemens 6ES7321-7BH01-0AB0 Digital Input Module. For SIMATIC S7-300, ET 200M. Supplied with full traceability and documentation. Worldwide shipping from stock. …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7321-7BH01-0AB0 |
| Official Product Name | SIMATIC SM 321 DI 16 x DC 24 V (with interrupts) |
| Applicable System | SIMATIC S7-300, ET 200M |
| Product Type | Digital Input Module (SM 321) |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Input characteristic | IEC 61131-2, Type 2 |
| Rated input voltage | 24 V DC (20.4-28.8 V) |
| Input voltage '1' / '0' | 13-30 V / -30 to +5 V |
| Input current at '1' | Typ. 7 mA |
| Input delay | Programmable 0.1 / 0.5 / 3 / 15 / 20 ms |
| Sensor supply | 2 outputs, 120 mA each, electronic short-circuit protection |
| Backplane current (5 V DC) | Max 130 mA |
| Power loss | Typ. 4 W |
| Isolation test voltage | 500 V DC |
| Cable length | Shielded max 1000 m, unshielded max 600 m |
| Front connector | 1x 20-pin |
| Dimensions (W×H×D) | 40 × 125 × 120 mm |
| Weight | Approx. 200 g |
| Operating temperature | 0 to 60 °C |
| Number of inputs | 16 DI, 24 V DC |
Product Description
Siemens 6ES7321-7BH01-0AB0 Digital Input Module. For SIMATIC S7-300, ET 200M. Supplied with full traceability and documentation. Worldwide shipping from stock.
Unlike the basic DI modules, this variant adds hardware and diagnostic interrupts, wire-break monitoring and isochronous-mode support for time-critical signal capture. It reports channel and sensor-supply faults to the CPU diagnostic buffer, shortening troubleshooting in demanding automation lines. The 6ES7321-7BH01-0AB0 is the SIMATIC S7-300 SM 321 digital input module providing 16 isolated 24 V DC inputs for connecting field devices such as pushbuttons, limit switches and 2-/3-/4-wire proximity sensors.
Basic Product Information
- Hardware interrupt, diagnostic interrupt and channel-level diagnostics with wire-break monitoring
- Programmable input delay (0.1 / 0.5 / 3 / 15 / 20 ms) and isochronous-mode support
- Two short-circuit-protected sensor supply outputs (120 mA each) with redundant supply support
- 16 electrically isolated 24 V DC digital inputs grouped in one isolated group of 16
Technical Specifications
Version & Model Difference
Within the S7-300 DI 16x24 V family, 6ES7321-7BH01-0AB0 is the high-feature variant with hardware/diagnostic interrupts and isochronous mode, whereas 6ES7321-1BH02-0AA0 is the basic module without diagnostics. In HF operation it requires a High-Feature IM 153-2 (PROFIBUS) or IM 153-4 (PROFINET) interface module for channel-level diagnostics.
Application Scenarios
- Reading pushbuttons, limit switches and proximity sensors (BERO) on production lines
- High-speed, time-synchronized signal capture in isochronous-mode applications
- Process automation where channel-level diagnostics reduce downtime
- Distributed I/O via ET 200M with IM 153 HF interface modules
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the difference between 6ES7321-7BH01-0AB0 and the basic DI module?
The 7BH01 variant adds hardware and diagnostic interrupts, wire-break monitoring and isochronous-mode support; basic modules such as 6ES7321-1BH02-0AA0 lack these diagnostics.
What front connector does it need?
It uses a single 20-pin front connector; the connector is ordered separately (e.g. 6ES7392-1AJ00-0AA0).
Does it support sensor supply redundancy?
Yes. It provides two short-circuit-protected sensor supply outputs (120 mA each) and supports an additional redundant sensor supply.
Can it run in isochronous mode?
Yes, it supports isochronous mode and parameter reassignment in RUN; channel-level HF diagnostics require a High-Feature IM 153-2/4 interface module.
