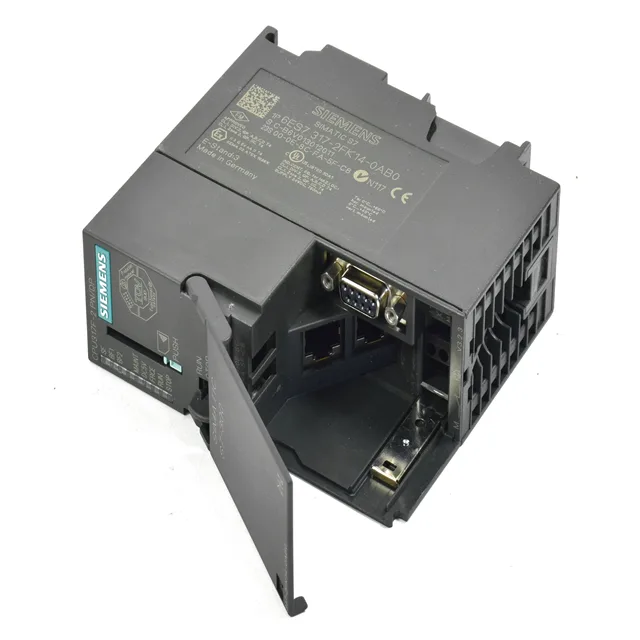

Siemens Fail-safe central processing unit 6ES7317-2FK14-0AB0
6ES7317-2FK14-0AB0

Siemens
Siemens Fail-safe central processing unit 6ES7317-2FK14-0AB0
Siemens 6ES7317-2FK14-0AB0 Fail-safe central processing unit. For Fail-safe and standard automation. Supplied with full traceability and documentation. Price &…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7317-2FK14-0AB0 |
| Official Product Name | SIMATIC S7-300 CPU 317F-2 PN/DP |
| Applicable System | Fail-safe and standard automation (S7-300) |
| Product Type | Fail-safe central processing unit (F-CPU) |
| Equivalent Standard | IEC 62061 SIL 3 / ISO 13849-1 PL e |
| Product Status | Commercialized (spare part per Siemens) |
| Load memory | Micro Memory Card required, up to 8 MB |
| 1st interface | MPI / PROFIBUS DP, 12 Mbit/s |
| 2nd interface | Ethernet PROFINET with 2-port switch |
| Supply voltage | 24 V DC (20.4 to 28.8 V) |
| Power loss | 4.65 W (typical) |
| Processing time | 0.025 us per bit, 0.16 us floating point |
| Firmware | V3.2 |
| Programming | STEP 7 V5.5+ and Distributed Safety V5.4 SP4 |
| Form factor | S7-300 standard module |
| Work memory | 1.5 MB integrated (256 KB retentive) |
Product Description
Siemens 6ES7317-2FK14-0AB0 Fail-safe central processing unit. For Fail-safe and standard automation. Supplied with full traceability and documentation.
It combines standard and safety-related control in one module, certified up to SIL 3 per IEC 62061 and PL e per ISO 13849-1. With 1.5 MB of integrated work memory and both a PROFIBUS DP/MPI and a PROFINET interface, it is suited to machine safety, burner management and distributed fail-safe I/O. The Siemens 6ES7317-2FK14-0AB0 is a fail-safe central processing unit of the SIMATIC S7-300 family, designated CPU 317F-2 PN/DP.
Basic Product Information
- 1.5 MB integrated work memory
- MPI/PROFIBUS DP (12 Mbit/s) and PROFINET (2-port switch)
- Safety up to SIL 3 (IEC 62061) and PL e (ISO 13849-1)
- Integrated fail-safe and standard control in one CPU
Technical Specifications
Version & Model Difference
['6ES7317-2FK14 = CPU 317F-2 PN/DP (fail-safe, PROFINET + DP)', 'Non-fail-safe CPU 317-2 PN/DP has a different order number and is not a safety replacement', 'Earlier 317F-2 DP variants with two PROFIBUS interfaces existed in the S7-300 family']
Application Scenarios
- Machine safety and safety interlock systems
- Burner management and process safety functions
- Distributed fail-safe I/O and mixed standard/safety automation
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
Is the 6ES7317-2FK14-0AB0 fail-safe?
Yes, it is a CPU 317F-2 PN/DP fail-safe CPU certified up to SIL 3 (IEC 62061) and PL e (ISO 13849-1).
What communication interfaces does it have?
It provides an MPI/PROFIBUS DP interface at 12 Mbit/s and an Ethernet PROFINET interface with an integrated two-port switch.
How much memory is integrated?
It has 1.5 MB of integrated work memory and requires a Micro Memory Card (up to 8 MB) for load memory.
What software is needed to program it?
It is programmed with STEP 7 V5.5 or higher together with Distributed Safety V5.4 SP4 or later.
