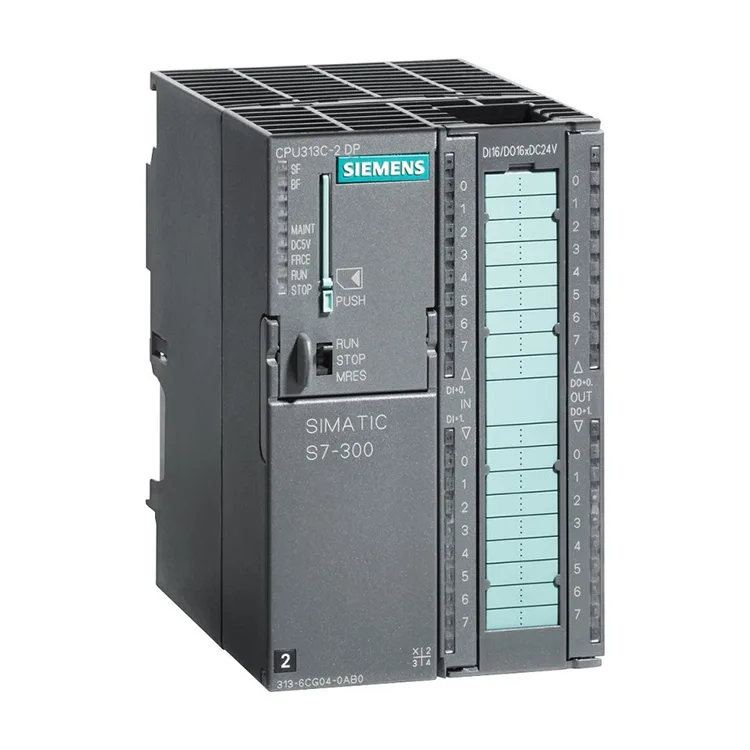

Siemens Compact PLC CPU with 6ES7313-6CG04-0AB0
6ES7313-6CG04-0AB0

Siemens
Siemens Compact PLC CPU with 6ES7313-6CG04-0AB0
Siemens 6ES7313-6CG04-0AB0 Compact PLC CPU with integrated digital I/O. For SIMATIC S7-300. Supplied with full traceability and documentation. Get a quote. Pri…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7313-6CG04-0AB0 |
| Official Product Name | SIMATIC S7-300 CPU 313C-2 DP compact CPU |
| Applicable System | SIMATIC S7-300 (STEP 7 V5.5 + SP1 or higher) |
| Product Type | Compact PLC CPU with integrated digital I/O |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Product family | SIMATIC S7-300 |
| CPU type | CPU 313C-2 DP (compact CPU) |
| Hardware version | 01 |
| Firmware version | V3.3 |
| Work memory (integrated) | 128 KB (not expandable) |
| Retentive memory | 64 KB |
| Load memory | SIMATIC Micro Memory Card (MMC), max 8 MB |
| Integrated digital inputs | 16 x 24 V DC |
| Integrated digital outputs | 16 x 24 V DC, 500 mA per channel |
| High-speed counters | 3, up to 30 kHz |
| Pulse outputs | 3, up to 2.5 kHz |
| Supply voltage | 24 V DC (19.2 - 28.8 V DC) |
| Current consumption (rated) | 800 mA |
| Power loss (typ.) | 9 W |
| Bit operation time (typ.) | 0.07 microseconds |
| Floating-point operation (typ.) | 0.72 microseconds |
| Communication interfaces | MPI + PROFIBUS DP |
| PROFIBUS DP baud rate | Up to 12 Mbit/s |
| Front connector | 1 x 40-pole |
| Dimensions (W x H x D) | 80 x 125 x 130 mm |
| Weight | Approx. 0.5 kg |
| Programming software | STEP 7 V5.5 + SP1 or higher |
| Operating temperature | 0 to 60 degrees C |
| Manufacturer | Siemens |
Product Description
It offers 128 KB of work memory and an integrated PROFIBUS DP interface for distributed I/O. Three high-speed counters (up to 30 kHz) and three pulse outputs (up to 2.5 kHz) handle counting and simple positioning tasks without extra modules. A 40-pole front connector and a SIMATIC Micro Memory Card are required for operation. The Siemens 6ES7313-6CG04-0AB0 is the SIMATIC S7-300 CPU 313C-2 DP, a compact CPU that combines the processor, 16 digital inputs, 16 digital outputs, communication and the 24 V DC power supply in a single module.
Basic Product Information
- 128 KB integrated work memory with a 64 KB retentive area
- 3 high-speed counters up to 30 kHz and 3 pulse outputs up to 2.5 kHz
- Integrated MPI and PROFIBUS DP interfaces (DP up to 12 Mbit/s)
- Built-in 24 V DC power supply with battery-free operation via a SIMATIC Micro Memory Card
- Compact CPU with 16 integrated digital inputs and 16 digital outputs (24 V DC, 500 mA per output)
Technical Specifications
Version & Model Difference
The 6ES7313-6CG04-0AB0 is the PROFIBUS DP variant of the CPU 313C-2 compact CPU; the closely related 6ES7313-6BG04-0AB0 is the PtP (point-to-point) version. Both share the 128 KB work memory, 16 DI / 16 DO and three high-speed counters. The '6CG04' order code identifies the integrated PROFIBUS DP interface with the 128 KB memory configuration. Confirm the interface type (DP versus PtP) when cross-referencing.
Application Scenarios
- Small to medium machine control with local I/O and distributed stations
- Counting and basic positioning tasks using the integrated high-speed counters
- Space-constrained control cabinets where a compact all-in-one CPU is preferred
- Maintenance and retrofit of existing S7-300 systems
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
How many I/O points does the CPU 313C-2 DP have onboard?
It has 16 digital inputs and 16 digital outputs integrated in the CPU, plus 3 high-speed counters (30 kHz) and 3 pulse outputs (2.5 kHz). Additional I/O is added with S7-300 signal modules.
What is the difference between the 6CG04 and 6BG04 versions?
The 6ES7313-6CG04-0AB0 has an integrated PROFIBUS DP interface, while the 6ES7313-6BG04-0AB0 uses a point-to-point (PtP) interface. Both otherwise share the same 128 KB work memory and 16 DI / 16 DO.
Is a memory card required?
Yes. A SIMATIC Micro Memory Card (MMC, up to 8 MB) is required for program and data storage, and the CPU operates battery-free.
Which software is used to configure it?
STEP 7 V5.5 + SP1 or higher, or STEP 7 V5.3 + SP2 with HSP 203.
