Siemens Compact CPU Module 6ES7313-5BF03-0AB0
Home > Siemens > SIMATIC S7-300 > CPU 313C 6ES7313-5BF03-0AB0 Need Siemens 6ES7313-5BF03-0AB0? Compact CPU Module for SIMATIC S7-300. Supplied with fu…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7313-5BF03-0AB0 |
| Official Product Name | SIMATIC S7-300 CPU 313C Compact CPU |
| Applicable System | SIMATIC S7-300 |
| Product Type | Compact CPU Module |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Digital Inputs | 24 DI, 24 V DC |
| Digital Outputs | 16 DO, 24 V DC |
| Analog Inputs | 4 AI |
| Analog Outputs | 2 AO |
| Temperature Input | 1 x Pt100 |
| High-Speed Counters | 3 channels, 30 kHz |
| Supply Voltage | 24 V DC (20.4 - 28.8 V) |
| Power Loss | typ. 14 W |
| Communication Interface | MPI |
| Required Accessories | 2 x 40-pole front connectors, SIMATIC MMC |
| Programming | STEP 7 V5.3 SP2 or higher |
| Work Memory | 64 KB (integrated, not expandable) |
Product Description

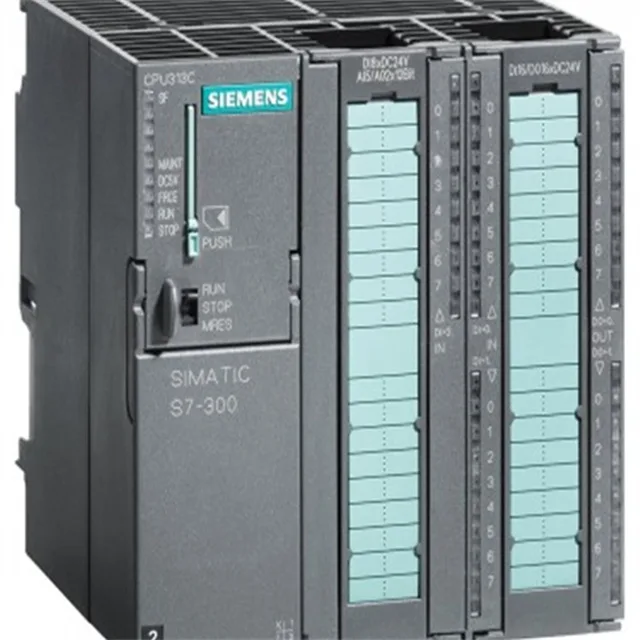

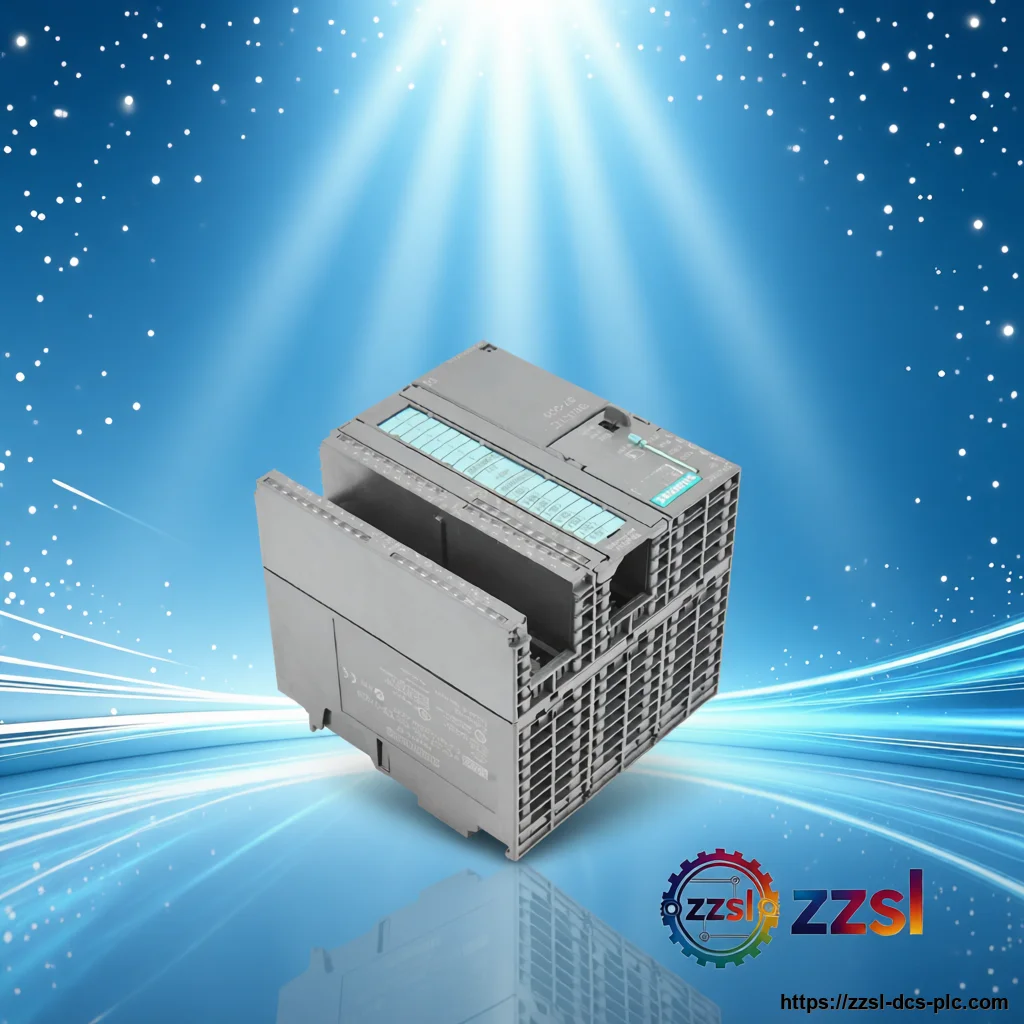

It provides 64 KB of work memory, 24 digital inputs, 16 digital outputs, 4 analog inputs, 2 analog outputs and one Pt100 temperature input for mixed-signal machine control. Three integrated high-speed counters rated at 30 kHz handle fast counting tasks without changing the CPU variant. Communication is via the MPI interface, and operation requires two 40-pole front connectors plus a SIMATIC Micro Memory Card. 6ES7313-5BF03-0AB0 is the Siemens SIMATIC S7-300 CPU 313C compact central processing unit, combining a PLC, an integrated 24 V DC supply and on-board I/O in one module.
Basic Product Information
- 64 KB work memory with maintenance-free backup via plug-in Micro Memory Card (MMC)
- Integrated MPI interface for programming and HMI/PG communication
- Three high-speed counters up to 30 kHz for fast counting applications
- Compact CPU 313C with integrated 24 V DC power supply and on-board mixed I/O
Technical Specifications
Version & Model Difference
CPU 313C 6ES7313-5BF03-0AB0 is the earlier hardware version (firmware V2.6); the later successor revision is 6ES7313-5BG04-0AB0. Match the exact article number and hardware revision when replacing an installed controller.
Application Scenarios
- Compact machine and equipment control with integrated digital and analog signals
- Retrofit and maintenance of installed SIMATIC S7-300 systems
- Small-scale automation requiring high-speed counting
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the work memory of Siemens 6ES7313-5BF03-0AB0?
The CPU 313C provides 64 KB of integrated work memory for program and data, not expandable. Program and data are backed up maintenance-free on the required Micro Memory Card.
Which integrated I/O does the CPU 313C offer?
It integrates 24 digital inputs, 16 digital outputs, 4 analog inputs, 2 analog outputs and one Pt100 temperature input, plus three 30 kHz high-speed counters.
What accessories are required to operate this CPU?
Operation requires two 40-pole front connectors and a SIMATIC Micro Memory Card. The MMC stores the user program and allows maintenance-free backup without a battery.
What is the successor model for 6ES7313-5BF03-0AB0?
The later successor revision is 6ES7313-5BG04-0AB0. When replacing an installed controller, confirm the exact article number, hardware revision and saved STEP 7 project before ordering.
