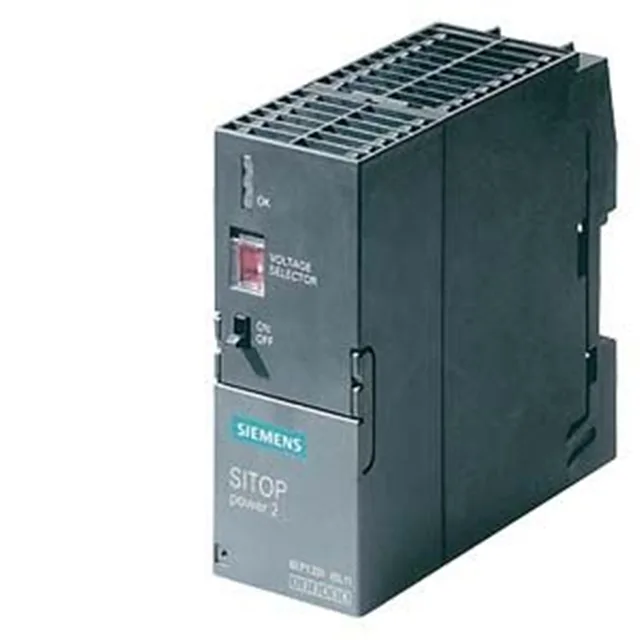

Siemens Regulated Power Supply Module 6ES7307-1EA00-0AA0
6ES7307-1EA00-0AA0

Siemens
Siemens Regulated Power Supply Module 6ES7307-1EA00-0AA0
Siemens 6ES7307-1EA00-0AA0 Regulated Power Supply Module. For SIMATIC S7-300. Supplied with full traceability and documentation. Worldwide shipping from stock. …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7307-1EA00-0AA0 |
| Official Product Name | SIMATIC S7-300 PS 307 Power Supply Module (5 A) |
| Applicable System | SIMATIC S7-300 (ET 200M) |
| Product Type | Regulated Power Supply Module |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Output Current | 5 A (rated) |
| Output Power | 120 W |
| Input Voltage | 120 / 230 V AC (auto-switching) |
| Input Frequency | 50 / 60 Hz (range 47-63 Hz) |
| Input Current | 2 A at 120 V ; 1 A at 230 V |
| Inrush Current | 45 A (at 25 C) |
| Short-circuit Protection | Electronic, non-latching, 1.1-1.3 x I_N |
| Residual Ripple | max 150 mVss |
| Voltage Rise Time | max 2.5 s |
| Parallel Operation | Not possible |
| Dimensions (W x H x D) | 80 x 125 x 120 mm |
| Weight | approx. 740 g |
| Mounting | S7-300 DIN rail |
| Isolation | to EN 60950 |
| Output Voltage | 24 V DC (+-5 %) |
Product Description
Siemens 6ES7307-1EA00-0AA0 Regulated Power Supply Module. For SIMATIC S7-300. Supplied with full traceability and documentation. Worldwide shipping from stock.
It feeds both the S7-300 backplane bus and external 24 V field loads, with electronic short-circuit and overload protection that auto-recovers after the fault clears. The module mounts directly on the S7-300 rail and requires no configuration, making it the standard power source for small and mid-size S7-300 stations. A green LED indicates that the 24 V DC output is present. The Siemens 6ES7307-1EA00-0AA0 is the PS 307 regulated power supply module for the SIMATIC S7-300 automation system, delivering a stable 24 V DC / 5 A (120 W) load supply from a 120/230 V AC mains input.
Basic Product Information
- Auto-switching 120/230 V AC input at 50/60 Hz for worldwide mains
- Electronic, non-latching short-circuit and overload protection (1.1-1.3 x I_N)
- Low residual ripple of max 150 mVss for a clean, stable supply
- Green LED shows 24 V DC output available; reliable isolation to EN 60950
- 24 V DC output at 5 A (120 W) for backplane and external 24 V field loads
Technical Specifications
Version & Model Difference
The 6ES7307-1EA00-0AA0 is the original 5 A AC-input PS 307 variant. Its direct successor is 6ES7307-1EA01-0AA0, which is hardware- and pin-compatible and can replace it without rewiring. The 2 A version (6ES7307-1BA01-0AA0) has lower current and is not a direct substitute; the 10 A version (6ES7307-1KA02-0AA0) offers more headroom on the same rail.
Application Scenarios
- Powering SIMATIC S7-300 PLC stations in factory automation
- Supplying 24 V DC to sensors and actuators on the S7-300 backplane
- Process control and machinery control cabinets requiring stable 24 V
- Retrofit of legacy S7-300 systems needing a 5 A regulated supply
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What does the 6ES7307-1EA00-0AA0 power?
It supplies 24 V DC at 5 A (120 W) to the S7-300 backplane bus and to external 24 V loads such as sensors and actuators.
Is it compatible with the 230 V mains in my region?
Yes. The input auto-switches between 120 V and 230 V AC at 50/60 Hz, so it works on both international and North American mains without a manual selector.
What happens during a short circuit?
The output is electronically protected (non-latching) and automatically recovers once the short circuit is removed; a green LED shows output status.
Can I parallel two units for more current?
No. The PS 307 5 A outputs cannot be connected in parallel; use the 10 A version (6ES7307-1KA02-0AA0) if more current is required.
