Siemens Digital I/O Expansion Module 6ES7223-1BH22-0XA0
6ES7223-1BH22-0XA0

Siemens
Siemens Digital I/O Expansion Module 6ES7223-1BH22-0XA0
Siemens 6ES7223-1BH22-0XA0 Digital I/O Expansion Module. For SIMATIC S7-200. Supplied with full traceability and documentation. Worldwide shipping from stock. …
Market reference price (web) | https://priceofparts.com/part/6es7-223-1bh22-0xa0
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7223-1BH22-0XA0 |

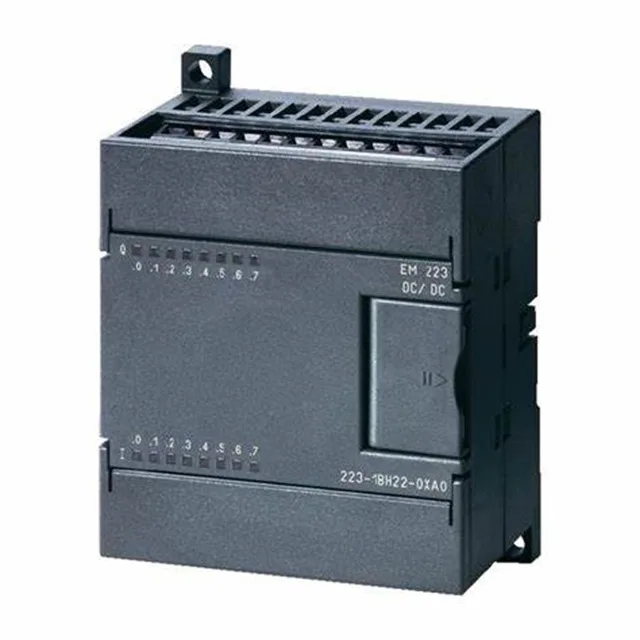

| Official Product Name | SIMATIC S7-200 EM 223 Digital I/O Module, 8 DI / 8 DO (DC/DC) |
| Applicable System | SIMATIC S7-200 (S7-22X CPUs) |
| Product Type | Digital I/O Expansion Module |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Digital Inputs | 8 x 24 V DC, sink/source, 7 mA/pt |
| Digital Outputs | 8 x 24 V DC transistor, 0.75 A/pt |
| Isolation | 500 V AC optical isolation |
| Response Time | 0.2 ms typical |
| Bus Current Consumption | 80 mA |
| Power Loss | 3 W |
| Operating Temperature | 0 C to +55 C |
| Dimensions (W x H x D) | 71.2 x 80 x 62 mm (approx.) |
| Weight | approx. 185 g |
| Certifications | CE, UL, CSA, FM approved |
| Input Voltage | 24 V DC (20.4-28.8 V) |
Product Description
Siemens 6ES7223-1BH22-0XA0 Digital I/O Expansion Module. For SIMATIC S7-200. Supplied with full traceability and documentation. Worldwide shipping from stock.
Inputs accept 24 V DC sink/source signals, while the outputs are 24 V DC transistor points rated 0.75 A each with 500 V AC optical isolation between field and logic circuits. DIN-rail mounting and industrial-grade construction make it suitable for machine control, packaging and building automation on legacy S7-200 systems. It draws its logic supply from the 24 V DC bus and occupies a single slot in the S7-200 expansion rack. The Siemens 6ES7223-1BH22-0XA0 is an EM 223 digital input/output expansion module for the SIMATIC S7-200 PLC, providing 8 digital inputs and 8 digital outputs in one compact unit.
Basic Product Information
- 8 digital transistor outputs at 24 V DC, 0.75 A per channel
- 500 V AC optical isolation between field and logic circuits for noise immunity
- DIN-rail mounting, IP20 protection, 0-55 C operating range
- Direct expansion for S7-200 S7-22X CPUs via the I/O bus
- 8 digital inputs at 24 V DC (sink/source), 7 mA per input
Technical Specifications
Version & Model Difference
The -1BH22-0XA0 is the 8 DI / 8 DO DC/DC (transistor) version of the EM 223 for S7-200. Other EM 223 variants include 4 DI/4 DO, 16 DI/16 DO and relay-output (e.g. -1BL22-0XA0) configurations that differ in I/O count and output type. All EM 223 modules are for the legacy S7-200 S7-22X CPUs and are not compatible with S7-1200; Siemens recommends S7-1200 SM 1223 for new systems.
Application Scenarios
- Automated production lines coordinating multiple sensors and actuators
- Material handling, conveyor and sorting systems
- Machine tool and discrete control within process systems
- Building automation and panel-mounted digital control
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
- Siemens 5SY6225-8 SENTRON Miniature Circuit Breaker 25A 2P Type D
Frequently Asked Questions
What is the output type of the 6ES7223-1BH22-0XA0?
It provides 8 digital transistor (sourcing) outputs at 24 V DC, 0.75 A per channel - not relay outputs. For relay switching, use the -1BL22-0XA0 variant.
Is this module compatible with S7-1200 PLCs?
No. The EM 223 family is exclusive to the legacy SIMATIC S7-200 (S7-22X) CPUs. For S7-1200, use the SM 1223 digital I/O modules.
What input voltage and isolation does it offer?
Inputs are 8 x 24 V DC (sink/source, 7 mA each) with 500 V AC optical isolation between field and logic circuits for EMI immunity.
How is the module mounted and powered?
It snaps onto a DIN rail and draws its 24 V DC logic supply from the S7-200 I/O bus; no separate power wiring is needed for the logic side.
