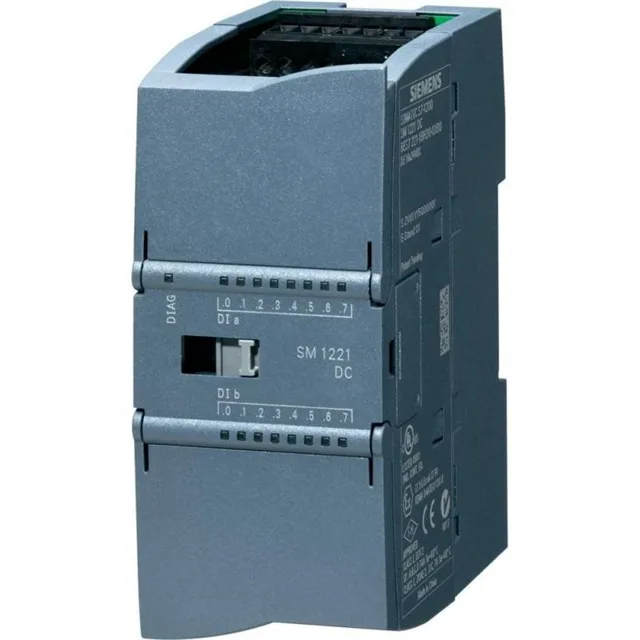

Siemens Digital Input Signal Module 6ES7221-1BH32-0XB0
6ES7221-1BH32-0XB0

Siemens
Siemens Digital Input Signal Module 6ES7221-1BH32-0XB0
Siemens 6ES7221-1BH32-0XB0 Digital Input Signal Module. For SIMATIC S7-1200 CPUs with signal module expansion. Contact us for price, stock and delivery. Price …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7221-1BH32-0XB0 |
| Official Product Name | SIMATIC S7-1200 SM 1221 Digital Input Module, DI 16x24 V DC |
| Applicable System | SIMATIC S7-1200 CPUs with signal module expansion |
| Product Type | Digital Input Signal Module |
| Equivalent Standard | IEC 61131-2, input characteristic curve type 1 |
| Product Status | In Stock |
| Number of digital inputs | 16, in 4 groups of 4 |
| Rated input voltage | 24 V DC (permissible range 20.4 ... 28.8 V DC) |
| Input voltage for signal "0" | 5 V DC at 1 mA |
| Input voltage for signal "1" | 15 V DC at 2.5 mA |
| Input current for signal "1" | 4 mA typical, 2.5 mA minimum |
| Current from backplane bus (5 V DC) | max. 130 mA |
| Power loss | typ. 2.5 W |
| Max. cable length | 500 m shielded / 300 m unshielded |
| Dimensions (W x H x D) | 45 x 100 x 75 mm |
| Weight | approx. 210 g |
| Degree of protection | IP20 |
| Ambient operating temperature | -20 ... +60 °C |
| Front connector | Required (ordered separately) |
| Product type | SM 1221, DI 16x24 V DC |
Product Description
Its inputs are arranged in four isolated groups of four and can be wired in either sink or source configuration, so the same module works with both PNP and NPN field devices. It converts the level of external 24 V DC process signals into the internal signal level of the S7-1200 controller. A parameterizable input filter of 0.2 to 12.8 ms, selected per group of four, suppresses noise on standard inputs, while per-channel LEDs and diagnostic alarms simplify troubleshooting. The module is 45 mm wide, IP20 rated for control-cabinet installation, and requires a front connector for wiring. The Siemens 6ES7221-1BH32-0XB0 is a SIMATIC S7-1200 SM 1221 digital input signal module with 16 inputs rated at 24 V DC.
Basic Product Information
- Inputs grouped into 4 isolated groups of 4 for noise immunity
- Parameterizable input delay of 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 12.8 ms per group
- Input characteristic curve in accordance with IEC 61131, type 1
- Per-channel status LEDs and diagnostic alarms for fast troubleshooting
- 16 digital inputs, 24 V DC, sink/source configurable
Technical Specifications
Version & Model Difference
The 6ES7221-1BH32-0XB0 is the 16-channel member of the S7-1200 SM 1221 digital input family; the 6ES7221-1BF32-0XB0 is the 8-channel version with otherwise similar 24 V DC sink/source inputs. Both belong to the SIMATIC S7-1200 range and need a separate front connector for wiring. The module is used with S7-1200 CPUs that support signal-module expansion; for the newer S7-1200 G2 generation Siemens points to a successor module, and existing S7-1200 systems continue to use this G1 module.
Application Scenarios
- Expanding digital input capacity on SIMATIC S7-1200 machine controllers
- Connecting 24 V DC sensors, pushbuttons and limit switches on production lines
- Discrete signal acquisition in packaging and material-handling equipment
- Building and process automation requiring high input channel density
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
How many digital inputs does the 6ES7221-1BH32-0XB0 provide?
It provides 16 digital inputs rated 24 V DC, arranged in four isolated groups of four.
Can it be wired for both PNP and NPN field devices?
Yes. The sink/source configurable inputs allow connection to both sourcing (PNP) and sinking (NPN) 24 V DC devices.
Is a front connector included with the module?
No. The module requires a separate SIMATIC S7-1200 front connector for wiring, which must be ordered in addition.
What is the maximum permissible cable length?
Up to 500 m for shielded cable and up to 300 m for unshielded cable.
