Siemens Compact PLC CPU 6ES7217-1AG40-0XB0
6ES7217-1AG40-0XB0

Siemens

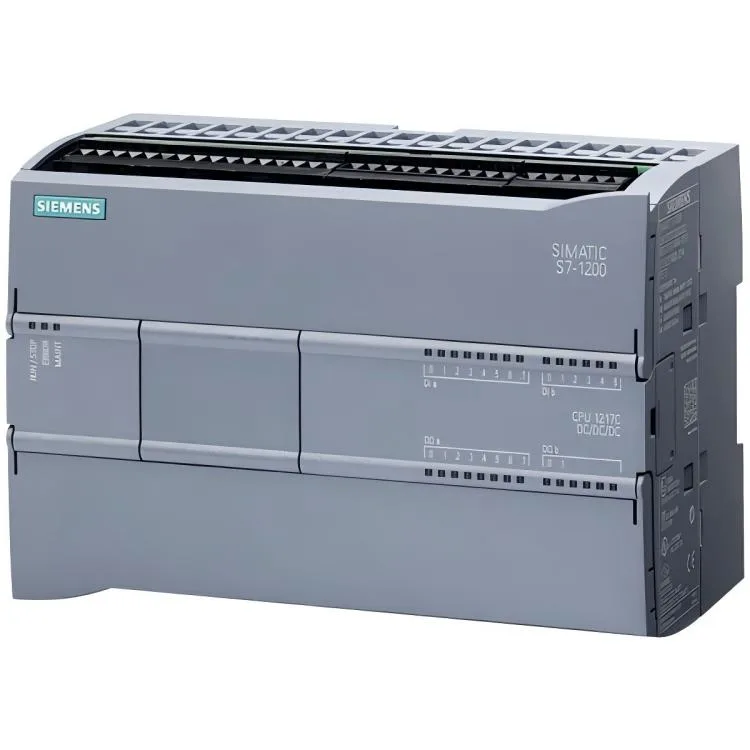

Siemens Compact PLC CPU 6ES7217-1AG40-0XB0
Siemens 6ES7217-1AG40-0XB0 Compact PLC CPU. For SIMATIC S7-1200. Supplied with full traceability and documentation. Contact us for price, stock and delivery. P…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7217-1AG40-0XB0 |
| Official Product Name | SIMATIC S7-1200 CPU 1217C (DC/DC/DC) |
| Applicable System | SIMATIC S7-1200 |
| Product Type | Compact PLC CPU |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Supply Voltage | 20.4 ... 28.8 V DC (24 V DC rated) |
| Reverse Polarity Protection | Yes |
| Digital Inputs | 10 x 24 V DC + 4 x RS-422/485 (differential) |
| Digital Outputs | 6 x 24 V DC 0.5 A + 4 x RS-422/485 |
| Analog Inputs | 2 x 0-10 V DC |
| Analog Outputs | 2 x 0-20 mA |
| Communication | 2 x PROFINET ports onboard |
| Work Memory | 250 KB |
| Load Memory | 4 MB (integrated) |
| Current Consumption | 600 mA (CPU only); max 1600 mA |
| Power Loss | typ. 12 W |
| Firmware | V4.7 (upgradeable) |
| Product Type | CPU 1217C DC/DC/DC |
Product Description
It integrates 10 digital 24 V DC inputs, 4 RS-422/485 differential inputs, 6 digital 24 V DC outputs (0.5 A) plus 4 RS-422/485 outputs, and 2 analog inputs (0-10 V) and 2 analog outputs (0-20 mA). Powered from 20.4-28.8 V DC, it offers 250 KB of integrated work memory and 4 MB load memory for demanding control tasks. Engineered in STEP 7 (TIA Portal) V20 or higher, it is the top-end S7-1200 CPU for high-speed and motion-oriented applications. The Siemens 6ES7217-1AG40-0XB0 is the SIMATIC S7-1200 CPU 1217C compact controller in DC/DC/DC configuration, combining a powerful PLC with two onboard PROFINET ports.
Basic Product Information
- 10 DI 24 V DC + 4 DI RS-422/485 + 6 DO 24 V DC 0.5 A + 4 DO RS-422/485
- 2 AI (0-10 V) and 2 AO (0-20 mA) integrated on the CPU
- 24 V DC supply with reverse-polarity protection
- 250 KB work memory and 4 MB integrated load memory; programmed in STEP 7 (TIA Portal) V20+
- Two integrated PROFINET ports for network and device communication
Technical Specifications
Version & Model Difference
The 6ES7217-1AG40-0XB0 is the DC/DC/DC (24 V in, transistor out) version of the CPU 1217C. Relay-output (DC/DC/RLY) is the other 1217C wiring option; choose RLY if you need isolated or AC outputs. Siemens has announced the S7-1200 G2 family as the next generation - confirm compatibility before upgrading an existing 1217C project.
Application Scenarios
- High-speed discrete manufacturing and packaging machine control
- Motion control and positioning tasks using the differential I/O
- Building and process automation with integrated analog I/O
- Networked stations with two PROFINET ports for line topologies
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the difference between the 1217C and smaller S7-1200 CPUs?
The CPU 1217C offers the largest integrated I/O and memory in the S7-1200 range, adding RS-422/485 differential inputs/outputs and 2 PROFINET ports for demanding motion and high-speed tasks.
What software is required to program it?
It is configured and programmed in STEP 7 (TIA Portal) V20 or higher; older TIA Portal versions do not support the latest firmware.
Can I expand the I/O?
Yes. The CPU supports S7-1200 signal boards, signal modules and communication modules mounted on the same rail, drawing up to 1600 mA from the 5 V backplane bus.
What supply voltage does it need?
It runs on 20.4-28.8 V DC (24 V DC nominal) with reverse-polarity protection and provides 24 V encoder/sensor supply (L+ minus 4 V).
