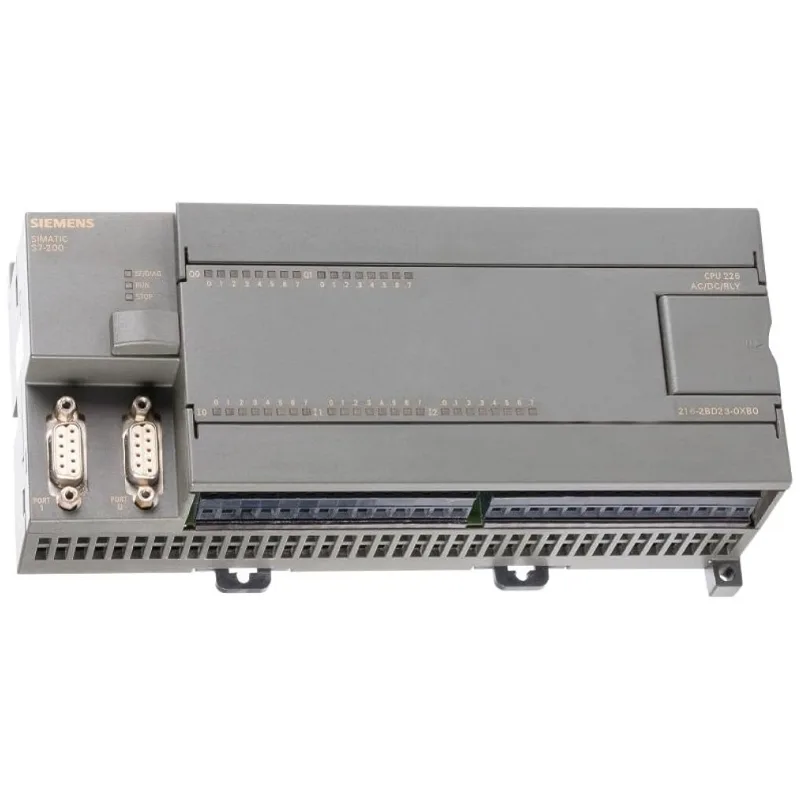

Siemens Programmable Logic Controller CPU 6ES7216-2AD23-0XB0
6ES7216-2AD23-0XB0

Siemens
Siemens Programmable Logic Controller CPU 6ES7216-2AD23-0XB0
Siemens 6ES7216-2AD23-0XB0 Programmable Logic Controller CPU. For SIMATIC S7-200 PLC system with S7-22x expansion modules. Worldwide shipping from stock. Price…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7216-2AD23-0XB0 |
| Official Product Name | SIMATIC S7-200 CPU 226 Compact Unit |
| Applicable System | SIMATIC S7-200 PLC system with S7-22x expansion modules |
| Product Type | Programmable Logic Controller (PLC) CPU |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| CPU Type | CPU 226 |
| Supply Voltage | 24 V DC (20.4 to 28.8 V) |
| Digital Inputs | 24 x 24 V DC |
| Digital Outputs | 16 x 24 V DC transistor, 0.75 A per point |
| Analog I/O (on board) | None (expandable via modules) |
| Program Memory | 16 KB (24 KB total with runtime edit) |
| Data Memory | 10 KB |
| Communication Ports | 2 x RS-485 (PPI, MPI, freeport/ASCII) |
| Max. Expansion Modules | 7 |
| Max. Digital I/O | 248 points (128 DI / 120 DO) |
| Max. Analog I/O | 35 channels (28 inputs / 7 outputs) |
| High-Speed Counters | 6, up to 30 kHz |
| Pulse Outputs | 2 x 20 kHz (DC output versions) |
| Bit Operation Time | 0.22 microseconds per instruction |
| Timers / Counters | 256 timers / 256 counters |
| Dimensions (W x H x D) | 196 x 80 x 62 mm |
| Weight | Approx. 0.55 kg |
| Degree of Protection | IP20 |
| Series | SIMATIC S7-200 |
Product Description
Siemens 6ES7216-2AD23-0XB0 Programmable Logic Controller CPU. For SIMATIC S7-200 PLC system with S7-22x expansion modules. Worldwide shipping from stock.
It runs on a 24 V DC supply and provides 24 digital inputs plus 16 transistor outputs on board, together with 16/24 KB of program memory and 10 KB of data memory. Two integrated RS-485 ports support PPI, MPI and freeport (ASCII) communication, and the CPU can drive up to seven expansion modules for a maximum of 248 digital or 35 analog points. Six high-speed counters and two 20 kHz pulse outputs make it suitable for simple positioning tasks. As the S7-200 series has been phased out in favour of S7-200 SMART and S7-1200, this CPU 226 is mainly supplied today as a spare part for existing machinery. The Siemens 6ES7216-2AD23-0XB0 is a SIMATIC S7-200 CPU 226 compact controller, the highest-integrated unit in the S7-200 family.
Basic Product Information
- 16/24 KB program memory and 10 KB data memory
- Two RS-485 ports supporting PPI, MPI and freeport (ASCII)
- Supports up to 7 expansion modules for 248 digital or 35 analog I/O points
- Six high-speed counters up to 30 kHz and two 20 kHz pulse outputs
- Built-in real-time clock and 2 analog potentiometers
- Three-stage password and know-how protection
- 24 digital inputs and 16 transistor digital outputs on board
Technical Specifications
Version & Model Difference
The 6ES7216-2AD23-0XB0 is the DC/DC/DC CPU 226 variant with a 24 V DC supply and transistor outputs. A closely related variant, 6ES7216-2BD23-0XB0, uses an AC supply with relay outputs and should not be interchanged. The S7-200 range was discontinued and is superseded by S7-200 SMART and S7-1200, so migration usually requires program conversion. Always match the exact suffix when replacing an existing unit.
Application Scenarios
- Retrofit and spare-part support for existing S7-200 machinery
- Small machine and packaging control
- Standalone control of compact production equipment
- Simple motion and positioning tasks using high-speed pulse outputs
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What are the on-board I/O points of this CPU?
It provides 24 digital inputs and 16 transistor digital outputs on board, with no integrated analog I/O.
How much memory does the CPU 226 have?
It offers 16 KB of program memory (24 KB total including runtime editing) and 10 KB of data memory.
Which communication protocols are supported?
Its two RS-485 ports support PPI, MPI and freeport (ASCII) protocols.
Is the S7-200 CPU 226 still in production?
No. The S7-200 series has been phased out and is replaced by S7-200 SMART and S7-1200; this CPU is generally supplied as a spare part for existing installations.
