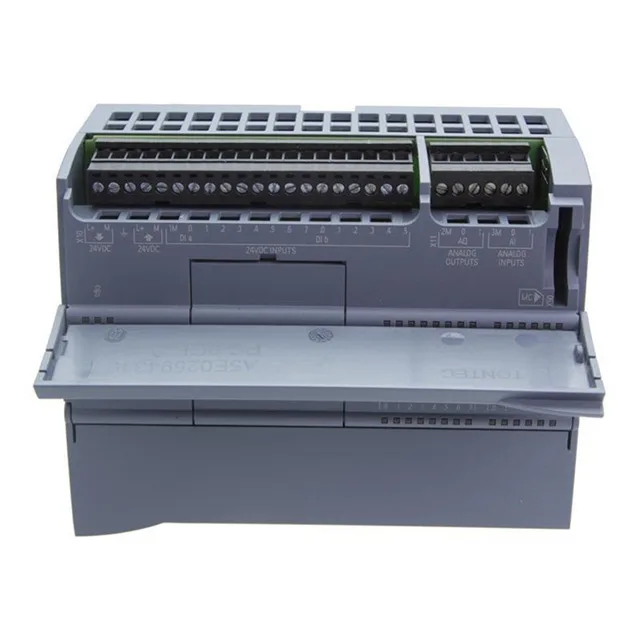

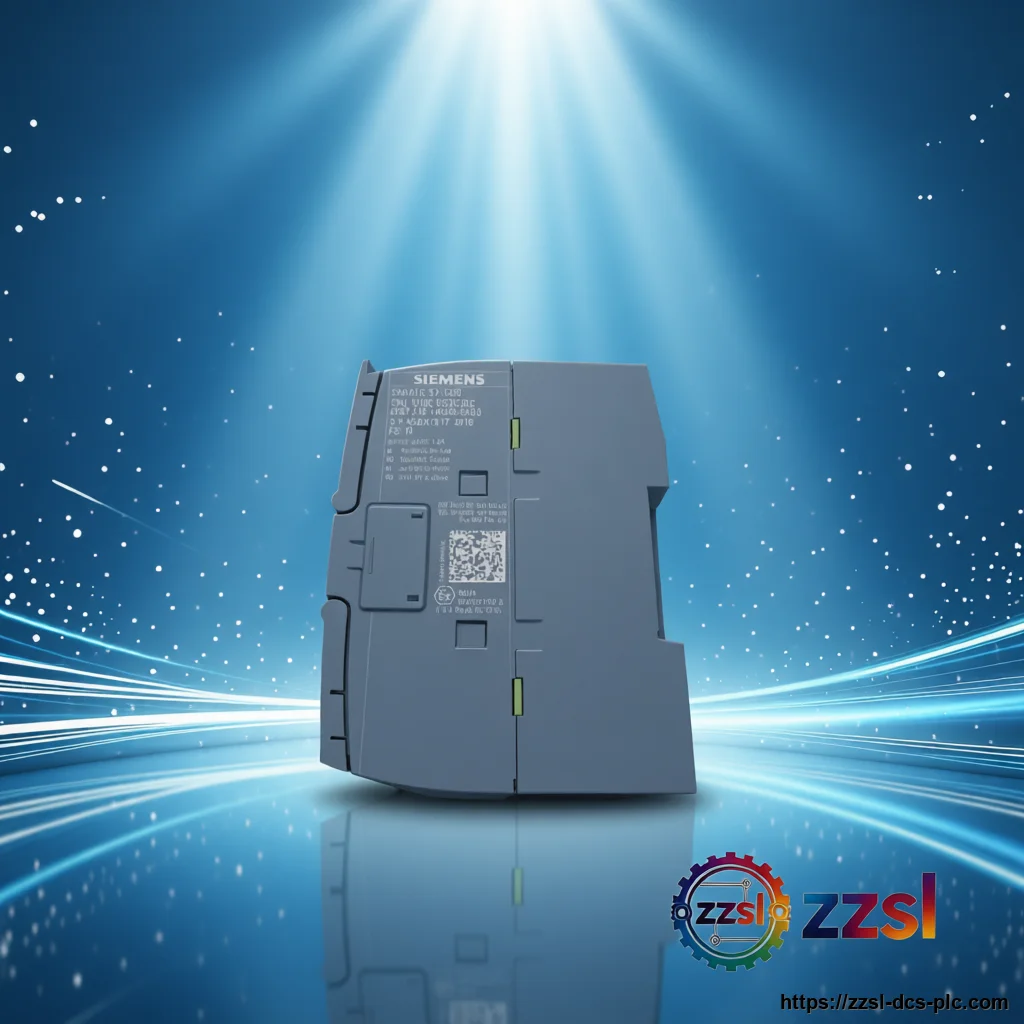

Siemens Compact PLC CPU 6ES7215-1AG40-0XB0
Siemens 6ES7215-1AG40-0XB0 Compact PLC CPU. For SIMATIC S7-1200 / TIA Portal. Supplied with full traceability and documentation. Worldwide shipping from stock. …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7215-1AG40-0XB0 |
| Official Product Name | SIMATIC S7-1200 CPU 1215C, DC/DC/DC |
| Applicable System | SIMATIC S7-1200 / TIA Portal |
| Product Type | Compact PLC CPU (DC/DC/DC) |
| Equivalent Standard | N/A |
| Product Status | In Stock |
| Product family | SIMATIC S7-1200 / CPU 1215C |
| Supply voltage | DC 20.4 to 28.8 V |
| Onboard digital inputs | 14 x 24 V DC |
| Onboard digital outputs | 10 x 24 V DC, 0.5 A (transistor) |
| Onboard analog inputs | 2 x 0-10 V DC |
| Onboard analog outputs | 2 x 0-20 mA |
| PROFINET ports | 2 (integrated switch) |
| Program / data memory | 200 KB |
| Integrated load memory | 4 MB |
| Expansion | Up to 8 signal modules, 1 signal board, 3 communication modules |
| Net weight | 0.405 kg |
| Packaging dimensions (L x W x H) | 11.1 x 14 x 8.5 cm |
| Degree of protection | IP20 |
| EAN | 4047623402756 |
| Country of origin | Germany |
| Article number | 6ES7215-1AG40-0XB0 |
Product Description
Siemens 6ES7215-1AG40-0XB0 Compact PLC CPU. For SIMATIC S7-1200 / TIA Portal. Supplied with full traceability and documentation. Worldwide shipping from stock.
It combines 14 digital inputs, 10 transistor digital outputs (0.5 A), 2 analog inputs and 2 analog outputs on a single compact module, so many small and medium machines need no extra I/O. Two integrated PROFINET ports with an on-board switch allow direct connection of HMIs, IO devices and other controllers. It offers 200 KB of program/data memory with a 4 MB integrated load memory and is programmed in TIA Portal. The CPU is widely used for compact machine control, OEM equipment and system-integration projects. The Siemens 6ES7215-1AG40-0XB0 is the SIMATIC S7-1200 CPU 1215C compact controller in the DC/DC/DC configuration.
Basic Product Information
- 2 analog inputs (0-10 V DC) and 2 analog outputs (0-20 mA) integrated on the CPU
- Two PROFINET ports with integrated switch for programming, HMI and IO-device connections
- 200 KB program/data memory with 4 MB integrated load memory; expandable via SIMATIC Memory Card
- High-speed counting and pulse outputs: up to 6 high-speed counters and 4 pulse outputs at 100 kHz
- Scalable expansion: up to 8 signal modules, 1 signal board and 3 communication modules
- Compact CPU 1215C in DC/DC/DC configuration with 14 DI 24 V DC and 10 transistor DO 24 V DC, 0.5 A
Technical Specifications
Version & Model Difference
The 6ES7215-1AG40-0XB0 is the DC/DC/DC version of the CPU 1215C: it uses transistor DC outputs and a DC supply. Sibling CPU 1215C variants such as 6ES7215-1BG40-0XB0 (AC/DC/relay) and 6ES7215-1HG40-0XB0 differ in output type and supply, and are not automatically interchangeable. The official memory figure for this CPU is 200 KB program/data memory with 4 MB integrated load memory. Siemens lists the S7-1200 G2 as the successor generation, and the CPU 1215C is in the phase-out period announced from 01 November 2026.
Application Scenarios
- Compact machine control for OEM equipment and production lines
- Control of HVAC, building and process automation sub-systems
- System integration, retrofit and maintenance projects using TIA Portal
- Positioning and simple motion tasks with high-speed counters and pulse outputs
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the Siemens 6ES7215-1AG40-0XB0?
It is the SIMATIC S7-1200 CPU 1215C compact CPU in the DC/DC/DC configuration, with 14 DI 24 V DC, 10 transistor DO 24 V DC (0.5 A), 2 AI, 2 AO, 2 PROFINET ports and 200 KB program/data memory.
Which engineering software does this CPU require?
It is engineered with Siemens STEP 7 (TIA Portal). The minimum usable version depends on the module firmware, so confirm the firmware version before configuring.
What is the difference between the -1AG40 and other CPU 1215C versions?
The -1AG40 version is DC/DC/DC with transistor outputs and a DC supply. AC/DC/relay and other variants differ in supply and output type and are not automatically interchangeable.
How many modules can be added to this CPU?
Up to 8 signal modules, 1 signal board and 3 communication modules can be added, in line with the S7-1200 system limits.
