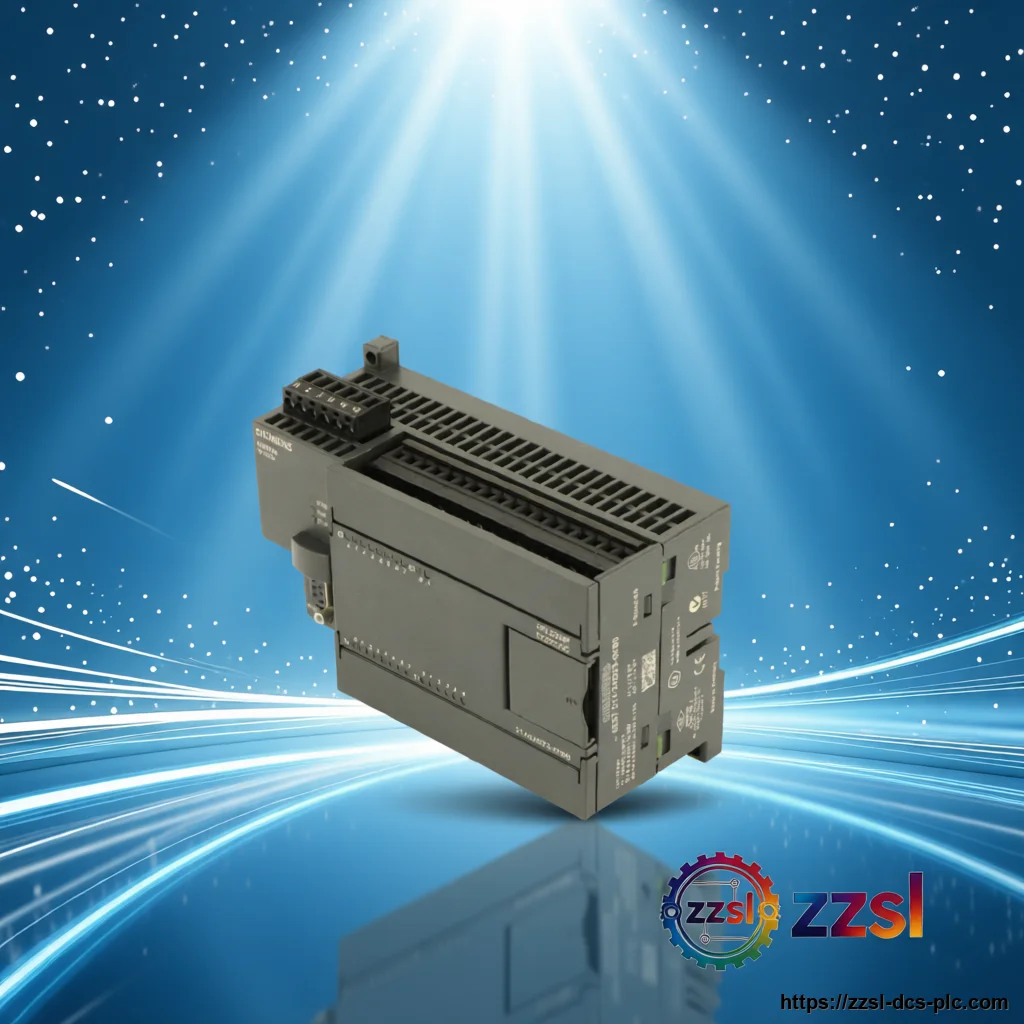

SIEMENS Compact PLC CPU 6ES7214-2AD23-0XB0
6ES7214-2AD23-0XB0
Siemens
SIEMENS Compact PLC CPU 6ES7214-2AD23-0XB0
Home > Products > Siemens > PLC CPU SIEMENS 6ES7214-2AD23-0XB0 Compact PLC CPU. For Machine and process automation. Supplied with full traceability an…
Contact us for current availability and best price of 6ES7214-2AD23-0XB0.
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7214-2AD23-0XB0 |
| Official Product Name | SIMATIC S7-200 CPU 224XP |
| Applicable System | Machine and process automation |
| Product Type | Compact PLC CPU |
| Equivalent Standard | N/A |
| Product Status | Mature / legacy (widely available) |
| Order number | 6ES7214-2AD23-0XB0 |
| Digital inputs | 14 (24 V DC sink/source) |
| Digital outputs | 10 (relay) |
| Analog I/O | 2 AI / 1 AO |
| Country of origin | Germany / global manufacture |
| Product family | SIMATIC S7-200 |
Product Description
It integrates digital and analog I/O and is widely used for small to mid-sized machine and process control tasks with STEP 7-Micro/WIN engineering. The Siemens SIMATIC S7-200 CPU 224XP (order number 6ES7214-2AD23-0XB0) is a compact programmable logic controller in the S7-200 family.
Basic Product Information
- 14 digital inputs and 10 digital outputs
- 2 analog inputs and 1 analog output on-board
- Programmed with STEP 7-Micro/WIN; expandable with S7-200 modules
- Compact CPU with integrated digital and analog I/O
Technical Specifications
Version & Model Difference
- The 0XB0 revision is the standard CPU 224XP; later S7-200 families were succeeded by S7-1200. Confirm engineering software and module compatibility for existing systems.
Application Scenarios
- Small machine control
- Conveyor and packaging systems
- Building and process automation
- Siemens 6SL3246-0BA22-1PA0 - SINAMICS G120 CU250S-2 DP Control Unit
- Siemens 6SL3210-1PE27-5UL0 - SINAMICS G120 PM240-2 Power Module
- Siemens 6SL3055-0AA00-5BA3 - SINAMICS S120 SMC20 Encoder Sensor Module
- Siemens 1FL6062-1AC61-2AA1 - SIMOTICS S-1FL6 Servo Motor
- Siemens 1FL6092-1AC61-2AA1 - SIMOTICS S-1FL6 Servo Motor
- Siemens 1FL6034-2AF21-1AA1 - SIMOTICS S-1FL6 Low-Inertia Servo Motor
- Siemens F-3A Cartridge Fuse
Frequently Asked Questions
What is the S7-200 CPU 224XP?
It is a compact Siemens PLC with 14 digital inputs, 10 digital outputs and onboard analog I/O, programmed via STEP 7-Micro/WIN.
Is this CPU still supported?
The S7-200 is a mature series; genuine units remain available from distributors. For new designs Siemens recommends the S7-1200 family.
Can I expand the I/O?
Yes, the S7-200 supports expansion modules for additional digital, analog and communication functions.
What software is required?
Configuration and programming use STEP 7-Micro/WIN. Confirm the exact version with your supplier for existing projects.
