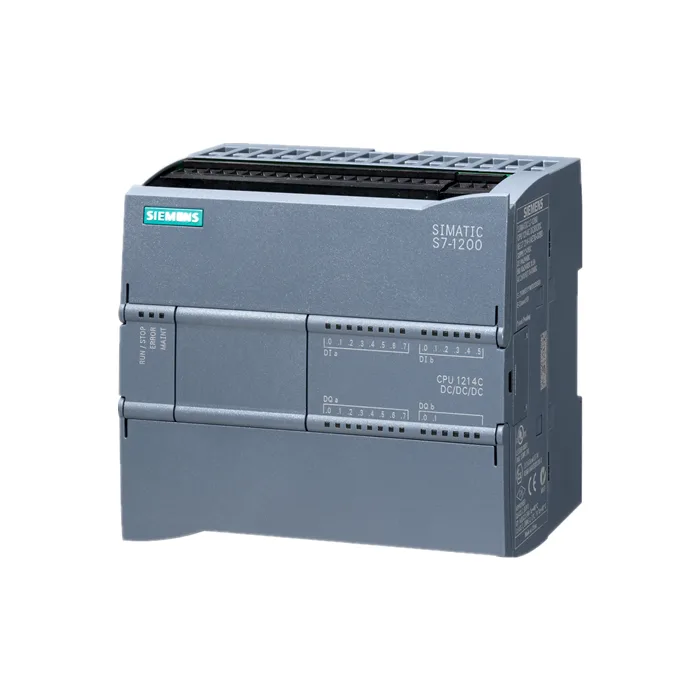

Siemens Compact PLC CPU with onboard I/O 6ES7214-1AG40-0XB0
6ES7214-1AG40-0XB0

Siemens
Siemens Compact PLC CPU with onboard I/O 6ES7214-1AG40-0XB0
Siemens 6ES7214-1AG40-0XB0 Compact PLC CPU with onboard I/O. For SIMATIC S7-1200. Supplied with full traceability and documentation. Request a quote today. Pri…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7214-1AG40-0XB0 |
| Official Product Name | SIMATIC S7-1200 CPU 1214C DC/DC/DC |
| Applicable System | SIMATIC S7-1200 (STEP 7 / TIA Portal) |
| Product Type | Compact PLC CPU with onboard I/O |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Product family | SIMATIC S7-1200 |
| Product type designation | CPU 1214C DC/DC/DC |
| Firmware version | V4.x (current V4.7; STEP 7 / TIA Portal required) |
| Work memory (integrated) | 150 KB |
| Load memory (integrated) | 4 MB |
| Retentive memory | 14 KB |
| Integrated digital inputs | 14 x 24 V DC |
| Integrated digital outputs | 10 x 24 V DC (transistor) |
| Integrated analog inputs | 2 x 0-10 V DC |
| High-speed counters | 6 (up to 100 kHz single phase) |
| Supply voltage | 24 V DC (20.4 - 28.8 V DC) |
| Current consumption (rated) | 500 mA (CPU only) |
| Power loss (typ.) | 12 W |
| Bit operation time (typ.) | 0.085 microseconds |
| Communication interface | PROFINET / Industrial Ethernet (RJ45) |
| Expansion | Up to 8 signal modules, 1 signal board, 3 communication modules |
| Real-time clock | Yes, with approx. 480 h backup |
| Dimensions (W x H x D) | Approx. 90 x 100 x 75 mm |
| Weight | Approx. 0.36 kg |
| Programming software | STEP 7 (TIA Portal) |
| Manufacturer | Siemens |
Product Description
It provides 14 digital inputs (24 V DC), 10 digital outputs (24 V DC) and 2 analog inputs (0-10 V DC), together with an integrated PROFINET / Industrial Ethernet interface. The CPU offers 150 KB of work memory, 4 MB of integrated load memory and six high-speed counters, and is powered from a 20.4-28.8 V DC supply. It is programmed with STEP 7 in the TIA Portal and expands with signal modules, communication modules and a signal board. The Siemens 6ES7214-1AG40-0XB0 is the SIMATIC S7-1200 CPU 1214C in the DC/DC/DC variant, a compact controller with onboard I/O.
Basic Product Information
- 150 KB work memory and 4 MB integrated load memory (expandable with a SIMATIC Memory Card)
- Six integrated high-speed counters for counting and encoder tasks
- Integrated PROFINET / Industrial Ethernet interface for programming, HMI and remote I/O
- DC/DC/DC version with a 24 V DC supply (20.4-28.8 V DC) and 24 V DC transistor outputs
- Compact CPU with onboard I/O: 14 DI 24 V DC, 10 DO 24 V DC and 2 AI 0-10 V DC
Technical Specifications
Version & Model Difference
The CPU 1214C is available in three supply/output variants that share the same memory and I/O count: DC/DC/DC (6ES7214-1AG40-0XB0, 24 V DC supply and transistor outputs), AC/DC/relay (6ES7214-1BG40-0XB0) and DC/DC/relay (6ES7214-1HG40-0XB0). The '1AG40' order code identifies the DC/DC/DC version with 14 DI / 10 DO / 2 AI. Under the S7-1200 G2 platform a successor for this CPU has been announced, so confirm the exact variant when cross-referencing.
Application Scenarios
- Compact machine control with local digital and analog I/O
- Standalone automation with integrated PROFINET for HMI and remote I/O
- Counting and basic motion tasks using the integrated high-speed counters
- Small process control and building / infrastructure automation panels
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What I/O does the CPU 1214C DC/DC/DC have onboard?
It has 14 digital inputs (24 V DC), 10 digital outputs (24 V DC transistor) and 2 analog inputs (0-10 V DC), plus 6 high-speed counters.
What does DC/DC/DC mean in the part number?
It indicates a 24 V DC power supply, 24 V DC inputs and 24 V DC transistor outputs. The alternative variants are AC/DC/relay (6ES7214-1BG40-0XB0) and DC/DC/relay (6ES7214-1HG40-0XB0).
How much memory does the CPU 1214C have?
150 KB of work memory with 4 MB of integrated load memory, expandable via a SIMATIC Memory Card.
Which software programs the S7-1200 CPU 1214C?
STEP 7 in the TIA Portal. It is not programmed with the classic STEP 7 V5.x used for S7-300.
