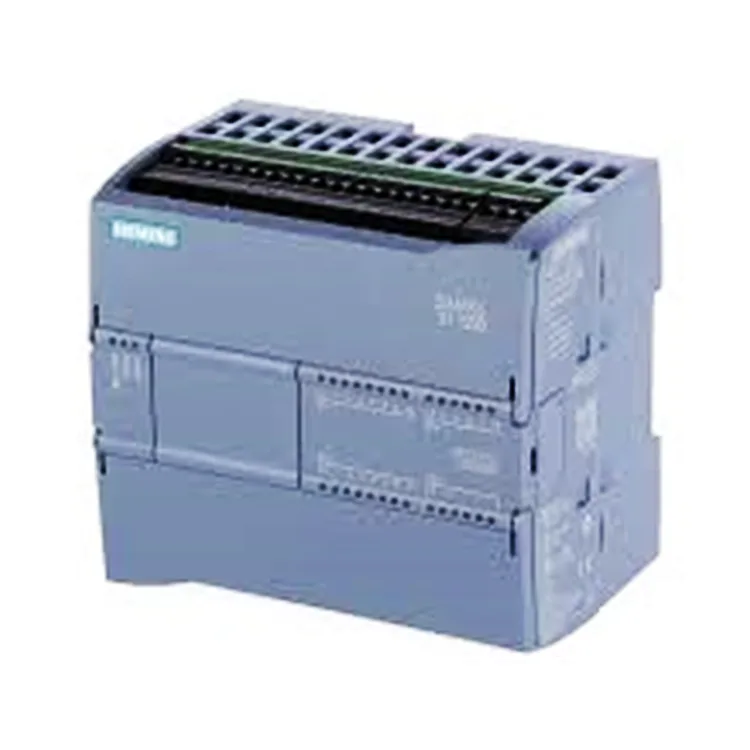

Siemens Compact PLC CPU 6ES7214-1AG31-0XB0
6ES7214-1AG31-0XB0

Siemens
Siemens Compact PLC CPU 6ES7214-1AG31-0XB0
Siemens 6ES7214-1AG31-0XB0 Compact PLC CPU. For SIMATIC S7-1200. Supplied with full traceability and documentation. Contact us for price, stock and delivery. P…
Quoted price from our sales team
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7214-1AG31-0XB0 |
| Official Product Name | SIMATIC S7-1200 CPU 1214C DC/DC/DC |
| Applicable System | SIMATIC S7-1200 |
| Product Type | Compact PLC CPU |
| Equivalent Standard | Successor: 6ES7214-1AG40-0XB0 (conditionally compatible) |
| Product Status | Discontinued (limited stock available) |
| Product family | SIMATIC S7-1200 |
| Digital inputs | 14 x 24 V DC |
| Digital outputs | 10 x 24 V DC, transistor |
| Analog inputs | 2 x 0-10 V DC |
| Supply voltage | 20.4 to 28.8 V DC (nominal 24 V DC) |
| Work memory | 75 KB |
| Load memory | 4 MB |
| Processing time (bit operation) | Approx. 0.085 microseconds |
| High-speed counters | Up to 6 inputs |
| Communication | 1 x PROFINET (RJ45) |
| Real-time clock backup | Approx. 480 h (battery-free) |
| Expansion | 1 signal board, up to 8 signal modules, up to 3 communication modules |
| Engineering software | STEP 7 V11 SP2 or higher (TIA Portal) |
| Protection rating | IP20 |
| Dimensions (W x H x D) | 110 x 100 x 75 mm |
| Weight | Approx. 415 g |
| Product type | Compact CPU, CPU 1214C DC/DC/DC |
Product Description
It combines 14 digital inputs (24 V DC), 10 transistor digital outputs (24 V DC) and 2 analog inputs (0-10 V DC) on board with an integrated PROFINET/Ethernet port. The CPU provides 75 KB of integrated work memory and 4 MB of load memory, executes bit operations in about 0.085 microseconds, and includes high-speed counters, pulse outputs, PID control and a battery-free real-time clock. Siemens discontinued this revision on 1 October 2024 and lists 6ES7214-1AG40-0XB0 as a conditionally compatible successor. The SIMATIC S7-1200 CPU 1214C DC/DC/DC (6ES7214-1AG31-0XB0) is a compact programmable logic controller for small and medium machine automation.
Basic Product Information
- 75 KB integrated work memory and 4 MB load memory for medium-sized programs
- Integrated PROFINET port for HMI, drive, remote I/O and SCADA communication
- Fast execution of about 0.085 microseconds per bit operation
- Built-in high-speed counters, pulse outputs, PID control and battery-free real-time clock
- 14 digital inputs, 10 transistor digital outputs and 2 analog inputs integrated on the CPU
Technical Specifications
Version & Model Difference
The 6ES7214-1AG31-0XB0 is the V3.0-generation CPU 1214C DC/DC/DC with 75 KB work memory and 4 MB load memory. Siemens discontinued it on 1 October 2024 (life-cycle status PM490) and lists 6ES7214-1AG40-0XB0 as a conditionally compatible successor, so the program, firmware, signal boards and expansion layout must be reviewed before replacement. It should not be treated as a drop-in substitute without engineering verification.
Application Scenarios
- Packaging and labelling machinery control
- Conveyor and material-handling systems
- HVAC and building automation
- Pump, fan and small process-line control
- OEM machine cells networked over PROFINET
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
Is the 6ES7214-1AG31-0XB0 still available from Siemens?
Siemens discontinued this revision on 1 October 2024; it is still offered through the surplus and spare-parts market while stock lasts.
What is the successor of this CPU?
Siemens lists 6ES7214-1AG40-0XB0 as a conditionally compatible successor, so program and hardware should be reviewed before replacement.
What onboard I/O does the CPU provide?
It provides 14 digital inputs (24 V DC), 10 transistor digital outputs (24 V DC) and 2 analog inputs (0-10 V DC).
Which software programs this controller?
It is engineered with STEP 7 V11 SP2 or higher in TIA Portal, using the S7-1200 instruction set.
