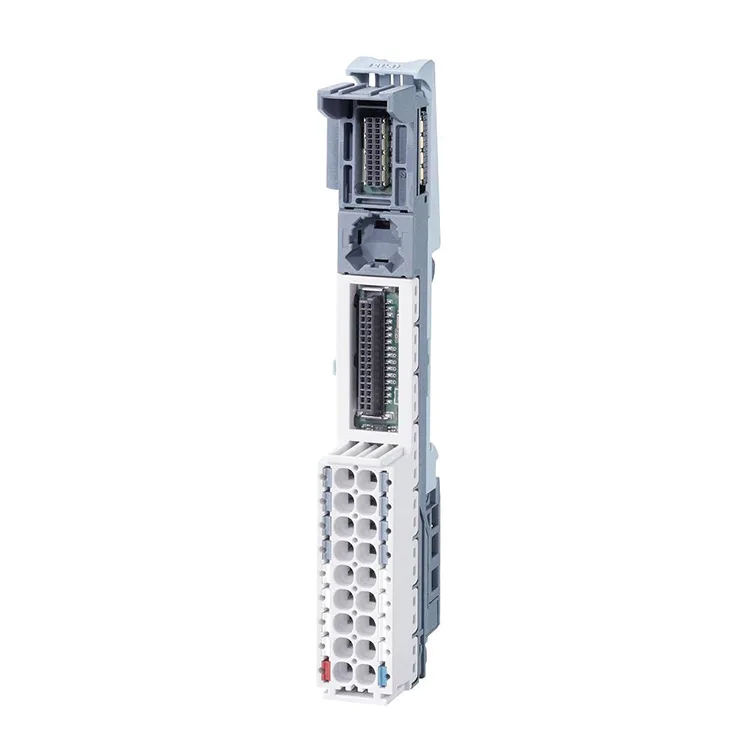

Siemens BaseUnit BU type A0 6ES7193-6BP00-0DA0
6ES7193-6BP00-0DA0

Siemens
Siemens BaseUnit BU type A0 6ES7193-6BP00-0DA0
Siemens 6ES7193-6BP00-0DA0 BaseUnit BU type A0. For SIMATIC ET 200SP. Supplied with full traceability and documentation. Worldwide shipping from stock. Price &…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7193-6BP00-0DA0 |
| Official Product Name | SIMATIC ET 200SP, BaseUnit BU15-P16+A0+2D |
| Applicable System | SIMATIC ET 200SP |
| Product Type | BaseUnit BU type A0 (new load group) |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Supply voltage | 24 V DC |
| Current capacity (P1/P2 bus) | max. 10 A |
| Current capacity (process terminals) | max. 2 A |
| External fuse protection | 24 V DC / 10 A miniature circuit breaker, type B or C |
| Potential group | New load group; not continued from left |
| Number of slots | 1 (Type A0) |
| Terminal type | Push-in, without AUX terminals |
| Conductor cross-section | 0.14–2.5 mm² (AWG 26–14) |
| Isolation test voltage | 707 V DC (type test) |
| Protection rating | IP20 |
| Operating temperature (horizontal) | -30 °C to +60 °C |
| Dimensions (W×H×D) | 15 × 117 × 35 mm |
| Weight, approx. | 40 g |
| Product type designation | BU15-P16+A0+2D, BU type A0 |
Product Description
Siemens 6ES7193-6BP00-0DA0 BaseUnit BU type A0. For SIMATIC ET 200SP. Supplied with full traceability and documentation. Worldwide shipping from stock.
It provides mechanical mounting and 16 push-in process terminals for one ET 200SP I/O module, with self-assembling P1/P2 voltage buses that are not continued from the left. Rated for 24 V DC at up to 10 A, it uses tool-free push-in wiring and offers electrical isolation between the backplane bus and supply. It is the standard base for type A0/A1 I/O modules in distributed control cabinets. The Siemens 6ES7193-6BP00-0DA0 is the SIMATIC ET 200SP BaseUnit BU15-P16+A0+2D of BU type A0, the left-most building block that starts a new potential (load) group in an ET 200SP station.
Basic Product Information
- Starts a new potential (load) group with self-assembling P1/P2 voltage buses; potential is not continued from the left
- Push-in terminal technology for tool-free, one-handed wiring with color-coded spring NC contacts
- Integrated line filter and electrical isolation (707 V DC type test) between backplane bus and supply voltage
- Supports module replacement during operation and operation with module gaps; automatic I/O module coding prevents wrong-slot insertion
- Single-slot BaseUnit (BU type A0) providing mechanical mounting and 16 push-in process terminals for one ET 200SP I/O module
Technical Specifications
Version & Model Difference
The 6ES7193-6BP00-0DA0 is the BU15-P16+A0+2D BaseUnit of BU type A0 that starts a new load group (potential not continued from the left). Its counterpart 6ES7193-6BP00-0BA0 (BU15-P16+A0+2B) bridges the potential group to the left instead. Type A0 BaseUnits fit all ET 200SP I/O modules of type A0/A1; AUX terminals are not present on either variant. Choose -0DA0 at the left end of a load group and -0BA0 to continue the group.
Application Scenarios
- First (left-most) BaseUnit of a new load/potential group in an ET 200SP station on the DIN rail
- Distributed I/O cabinets in factory and process automation requiring permanent, tool-free push-in wiring
- Stations where modules must be replaced during operation without disturbing field wiring
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the Siemens 6ES7193-6BP00-0DA0?
It is the SIMATIC ET 200SP BaseUnit BU15-P16+A0+2D of BU type A0. It provides mechanical mounting and 16 push-in process terminals for one ET 200SP I/O module and starts a new potential (load) group.
What is the difference between -0DA0 and -0BA0?
Both are type A0 BaseUnits without AUX terminals. The -0DA0 starts a new load group (potential not continued from the left), while the -0BA0 bridges the potential group from the left. Use -0DA0 at the start of a group and -0BA0 to continue it.
What supply and wiring details apply?
It runs on 24 V DC with a 10 A max current on the P1/P2 bus (2 A per process terminal) and needs a 24 V DC / 10 A type B or C miniature circuit breaker. Wiring uses push-in terminals for 0.14–2.5 mm² conductors.
Which I/O modules fit this BaseUnit?
All ET 200SP I/O modules of BaseUnit type A0/A1 fit this BaseUnit. Confirm the module's required BU type and whether AUX terminals are needed; contact us with your station layout for a verified selection.
