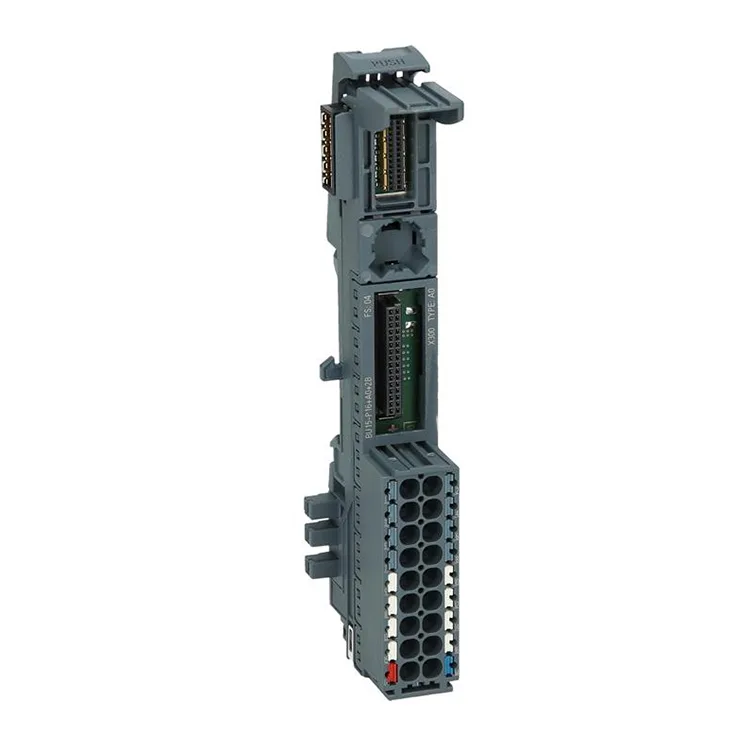

Siemens BaseUnit BU type A0 6ES7193-6BP00-0BA0
6ES7193-6BP00-0BA0

Siemens
Siemens BaseUnit BU type A0 6ES7193-6BP00-0BA0
Siemens 6ES7193-6BP00-0BA0 BaseUnit BU type A0. For SIMATIC ET 200SP. Supplied with full traceability and documentation. Worldwide shipping from stock. Price &…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7193-6BP00-0BA0 |
| Official Product Name | SIMATIC ET 200SP, BaseUnit BU15-P16+A0+2B |
| Applicable System | SIMATIC ET 200SP |
| Product Type | BaseUnit BU type A0 (bridged to left) |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Supply voltage | 24 V DC |
| Current capacity (P1/P2 bus) | max. 10 A |
| Current capacity (process terminals) | max. 2 A |
| External fuse protection | 24 V DC / 10 A miniature circuit breaker, type B or C |
| Potential group | Bridged to the left (continued from left) |
| Number of slots | 1 (Type A0) |
| Terminal type | Push-in, without AUX terminals |
| Conductor cross-section | 0.14–2.5 mm² (AWG 26–14) |
| Isolation test voltage | 707 V DC (type test) |
| Protection rating | IP20 |
| Operating temperature (horizontal) | -30 °C to +60 °C |
| Dimensions (W×H×D) | 15 × 117 × 35 mm |
| Weight, approx. | 40 g |
| Product type designation | BU15-P16+A0+2B, BU type A0 |
Product Description
Siemens 6ES7193-6BP00-0BA0 BaseUnit BU type A0. For SIMATIC ET 200SP. Supplied with full traceability and documentation. Worldwide shipping from stock.
It provides mechanical mounting and 16 push-in process terminals for one ET 200SP I/O module, with the self-assembling P1/P2 and AUX buses connected through from the left. Rated for 24 V DC at up to 10 A, it uses tool-free push-in wiring and isolates the backplane bus from the supply. It is used to extend type A0/A1 I/O modules within a distributed ET 200SP station. The Siemens 6ES7193-6BP00-0BA0 is the SIMATIC ET 200SP BaseUnit BU15-P16+A0+2B of BU type A0 that continues an existing potential (load) group from the left neighbouring BaseUnit.
Basic Product Information
- Bridges the potential (load) group from the left neighbouring BaseUnit — continues existing P1/P2 and AUX buses
- Push-in terminal technology for tool-free, one-handed wiring with color-coded spring NC contacts
- Electrical isolation (707 V DC type test) between backplane bus and supply voltage
- Supports hot module replacement and operation with module gaps; automatic I/O module coding prevents wrong-slot insertion
- Single-slot BaseUnit (BU type A0) with 16 push-in process terminals for one ET 200SP I/O module
Technical Specifications
Version & Model Difference
The 6ES7193-6BP00-0BA0 is the BU15-P16+A0+2B BaseUnit of BU type A0 that continues the potential group from the left. Its counterpart 6ES7193-6BP00-0DA0 (BU15-P16+A0+2D) instead starts a new load group. Both are type A0 without AUX terminals and fit all ET 200SP I/O modules of type A0/A1. Use -0BA0 in the middle or right of a load group and -0DA0 at its start.
Application Scenarios
- Continuation BaseUnit inside an existing load/potential group of an ET 200SP station
- Dense distributed I/O cabinets where the same 24 V DC group feeds multiple adjacent modules
- Stations requiring online module replacement without disturbing permanent push-in field wiring
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the Siemens 6ES7193-6BP00-0BA0?
It is the SIMATIC ET 200SP BaseUnit BU15-P16+A0+2B of BU type A0. It provides 16 push-in process terminals for one ET 200SP I/O module and continues the potential (load) group from the left neighbouring BaseUnit.
How does -0BA0 differ from -0DA0?
The -0BA0 bridges the potential group from the left (continues the existing P1/P2/AUX buses), whereas the -0DA0 starts a new load group. Use -0BA0 to continue a group and -0DA0 at the group's start.
What are the electrical ratings?
It is rated 24 V DC with a maximum 10 A on the P1/P2 bus (2 A per process terminal) and requires a 24 V DC / 10 A type B or C miniature circuit breaker. Terminals accept 0.14–2.5 mm² push-in conductors.
Which modules are compatible?
All ET 200SP I/O modules of BaseUnit type A0/A1 mount on this BaseUnit. Verify the module's BU type and whether AUX terminals are required; contact us with your station layout for a verified BaseUnit sequence.
