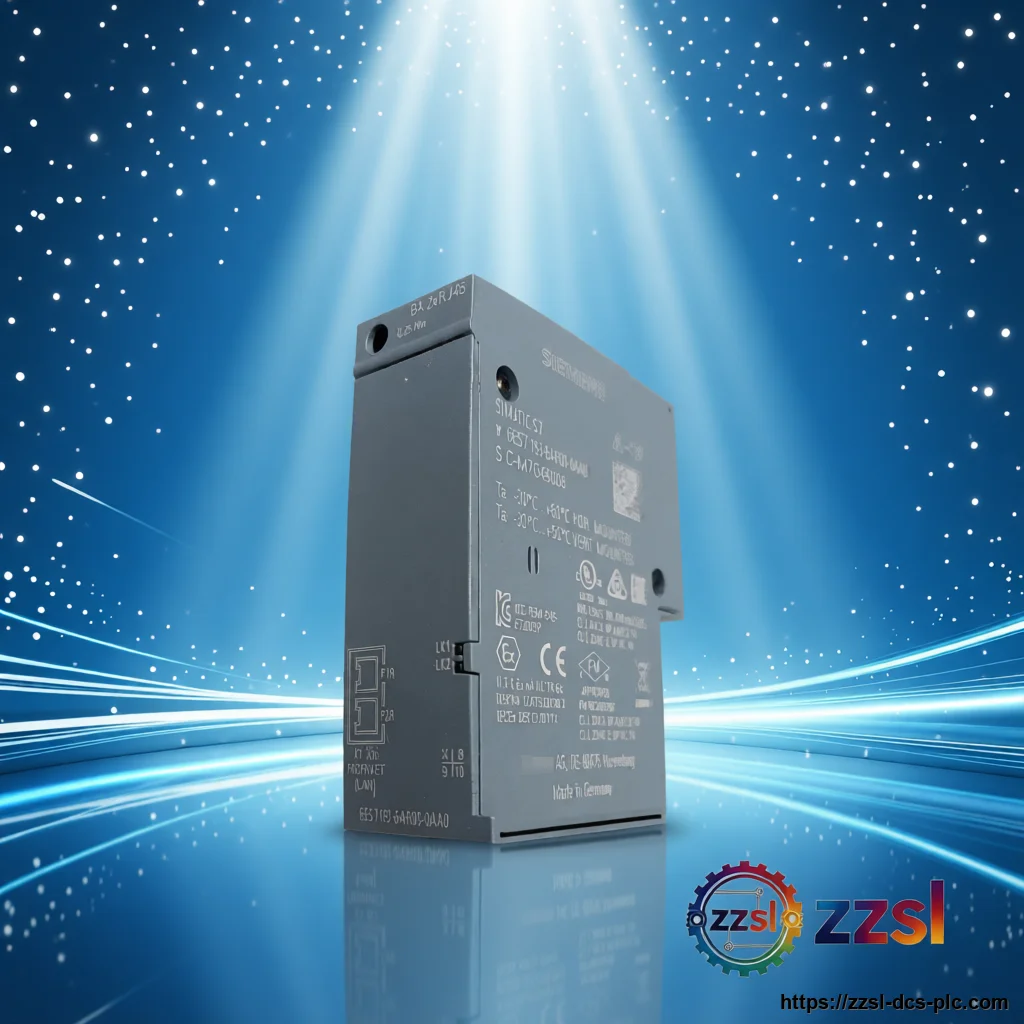

Siemens BusAdapter BA 2xRJ45 6ES7193-6AR00-0AA0
6ES7193-6AR00-0AA0

Siemens
Siemens BusAdapter BA 2xRJ45 6ES7193-6AR00-0AA0
Siemens 6ES7193-6AR00-0AA0 BusAdapter BA 2xRJ45. For SIMATIC ET 200SP. Supplied with full traceability and documentation. Worldwide shipping from stock. Price …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7193-6AR00-0AA0 |
| Official Product Name | SIMATIC ET 200SP, BusAdapter BA 2xRJ45 |
| Applicable System | SIMATIC ET 200SP (PROFINET) |
| Product Type | BusAdapter BA 2xRJ45 |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| PROFINET interfaces | 1 (2-port integrated switch) |
| RJ45 ports | 2 |
| Transmission rate | 10/100 Mbps, auto-negotiation |
| Max. copper cable length | 100 m per segment |
| Power loss | 2 W |
| Protection rating | IP20 |
| Operating temperature (horizontal) | -30 °C to +60 °C |
| Operating temperature (vertical) | -30 °C to +50 °C |
| Dimensions (W×H×D) | 20 × 69.5 × 59 mm |
| Weight, approx. | 46 g |
| Mounting | DIN rail; plugs into BusAdapter slot |
| Hot-swap | Yes |
| Product type designation | BA 2x RJ45 |
Product Description
Siemens 6ES7193-6AR00-0AA0 BusAdapter BA 2xRJ45. For SIMATIC ET 200SP. Supplied with full traceability and documentation. Worldwide shipping from stock.
It provides one PROFINET interface through two switched RJ45 copper ports with 10/100 Mbps auto-negotiation and up to 100 m cable length per segment. The adapter supports line, star and tree topologies without an extra switch and is hot-swap capable for online service. At 20 mm wide and 46 g it preserves the compact ET 200SP form factor in control-cabinet installations. The Siemens 6ES7193-6AR00-0AA0 is the SIMATIC ET 200SP BusAdapter BA 2xRJ45, the physical PROFINET connection adapter for compatible ET 200SP interface modules, CPUs and couplers.
Basic Product Information
- Integrated 2-port switch supports line, star and tree topologies without an extra switch
- 10/100 Mbps auto-negotiation with up to 100 m copper cable length per segment
- Hot-swap capable for online replacement without replacing the host module
- Compact 20 mm width and 46 g weight; IP20 for control-cabinet installation
- Provides the physical PROFINET connection for compatible ET 200SP interface modules, CPUs and couplers with two switched RJ45 copper ports
Technical Specifications
Version & Model Difference
The 6ES7193-6AR00-0AA0 is the BA 2xRJ45 copper BusAdapter. Alternative BusAdapters in the same form factor use different media: BA 2xFC (6ES7193-6AF00-0AA0, FastConnect RJ45), BA 2xM12 (6ES7193-6AP00-0AA0, M12 D-coded) and fiber variants (BA 2xLC, BA 2xSCRJ). All share the ET 200SP BusAdapter mechanical interface, so the physical medium is selected by the adapter, not by the host module. Choose BA 2xRJ45 for standard copper Industrial Ethernet.
Application Scenarios
- Physical PROFINET connection of ET 200SP distributed I/O stations over copper Industrial Ethernet
- Two-port line or tree topology between field stations in machine and factory automation
- Service replacement of a damaged RJ45 interface without changing the host interface module
- Space-constrained control cabinets needing compact, high-density DIN-rail mounting
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the Siemens 6ES7193-6AR00-0AA0?
It is the SIMATIC ET 200SP BusAdapter BA 2xRJ45, a PROFINET bus adapter that provides two switched RJ45 copper ports for compatible ET 200SP interface modules, CPUs and couplers.
Is the BusAdapter included with the interface module?
No. The BusAdapter is ordered separately and plugs into the host module's BusAdapter slot. The 6ES7193-6AR00-0AA0 supplies the physical copper port; without it the PROFINET interface has no connector.
What cable length and topology are supported?
It supports 10/100 Mbps auto-negotiation with up to 100 m copper cable per segment and line, star or tree topologies via the integrated 2-port switch.
Can I replace a different BusAdapter with this one?
Only if your system uses copper RJ45 media. Fiber (BA 2xLC / BA 2xSCRJ) and M12 (BA 2xM12) adapters are different products and must match the installed cabling. Match the host module, media and topology, and contact us for a verified selection.
