Siemens Drive Interface Module 6ES7174-0AA10-0AA0
6ES7174-0AA10-0AA0

Siemens

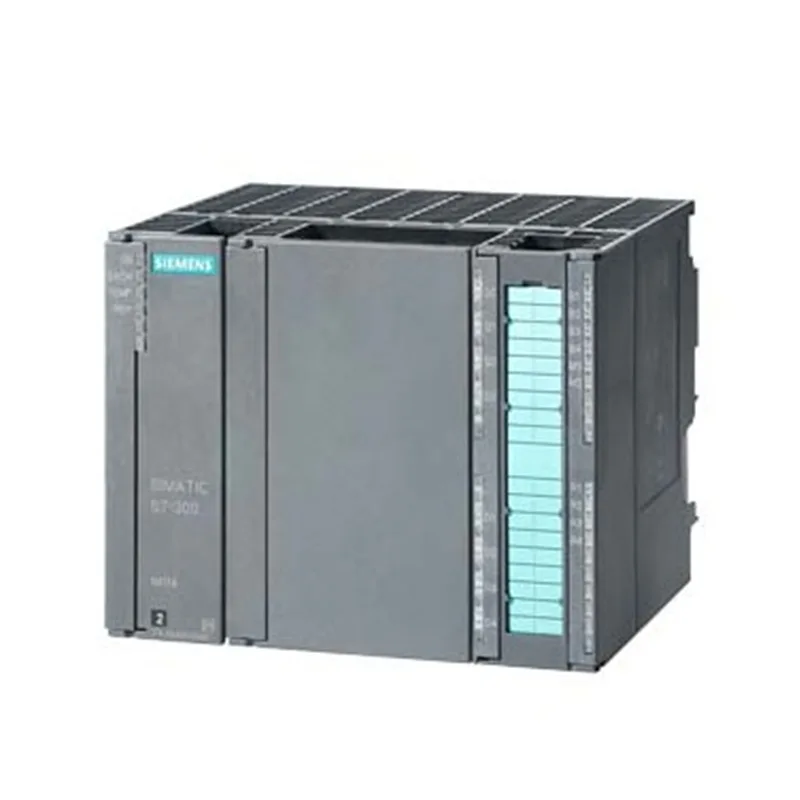

Siemens Drive Interface Module 6ES7174-0AA10-0AA0
Siemens 6ES7174-0AA10-0AA0 Drive Interface Module. For SIMATIC S7-300. Supplied with full traceability and documentation. Worldwide shipping from stock. Price …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7174-0AA10-0AA0 |
| Official Product Name | SIMATIC S7-300 IM 174 Drive Interface Module |
| Applicable System | SIMATIC S7-300 (Motion Control) |
| Product Type | Drive Interface Module |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Motion Channels | 4 |
| Analog Outputs | 4 x +/-10 V |
| Encoder Inputs | 4 (RS422 incremental or SSI absolute) |
| Digital Inputs | 10 (24 V DC) |
| Digital Outputs | 8 (24 V DC, 0.5 A) |
| Relay Outputs | 4 (drive enable / ready signals) |
| Supply Voltage | 24 V DC (20.4 - 28.8 V) |
| Current Consumption | max. 500 mA |
| Power Loss | typ. 12 W |
| Programming | STEP 7 V5.4 SP4 or later |
| Dimensions | 160 x 125 x 118 mm |
| Weight | approx. 1 kg |
| Bus Interface | Isochronous PROFIBUS DP, up to 12 Mbit/s |
Product Description
Siemens 6ES7174-0AA10-0AA0 Drive Interface Module. For SIMATIC S7-300. Supplied with full traceability and documentation. Worldwide shipping from stock.
It provides four independent channels, each with an encoder input and an analog output, enabling precise multi-axis closed-loop positioning. The module converts digital setpoints into +/-10 V analog signals while feeding encoder feedback back to the controller, reducing wiring and improving accuracy. 6ES7174-0AA10-0AA0 is the Siemens SIMATIC S7-300 IM 174 motion-control interface module that links analog servo and stepper drives to a Technology CPU over an isochronous PROFIBUS DP network.
Basic Product Information
- Four independent motion channels with encoder input and analog output
- Supports TTL/RS422 incremental and SSI absolute encoders
- Integrated digital I/O and relay outputs for drive enable and status
- Connects analog servo and stepper drives to isochronous PROFIBUS DP
Technical Specifications
Version & Model Difference
IM 174 (6ES7174-0AA10-0AA0) is the dedicated motion-control drive interface for SIMATIC S7-300 Technology CPUs. It is not a general I/O module; confirm Technology CPU compatibility (e.g. CPU 31xT-2 DP) before integration.
Application Scenarios
- Multi-axis synchronized motion control in packaging and converting machines
- Printing presses, textile machines and cut-to-length applications
- Material handling and robotic positioning requiring closed-loop control
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What does the Siemens IM 174 module do?
The 6ES7174-0AA10-0AA0 connects analog servo and stepper drives to a Siemens Technology CPU over isochronous PROFIBUS DP, providing four channels of encoder input and +/-10 V analog output for closed-loop motion control.
How many motion axes can it control?
The IM 174 provides four independent channels, each combining an encoder input (incremental or SSI absolute) and an analog output, so it handles up to four axes per module.
Which drives and encoders are supported?
It supports analog servo and stepper drives with a +/-10 V or pulse-direction interface, and reads RS422 incremental or SSI absolute encoders, with 10 digital inputs and 8 digital outputs plus 4 relay outputs.
Which controllers work with the IM 174?
It integrates with SIMATIC S7-300 Technology CPUs such as CPU 31xT-2 DP and CPU 41x-2 DP, SIMOTION C/D, and WinAC RTX, configured in STEP 7 V5.4 SP4 or later.
Other Siemens Models We Stock
- 1FL6034-2AF21-1AA1
- 1FL6062-1AC61-2AA1
- 1FL6066-1AC61-2LH1
- 1FL6092-1AC61-2AA1
- 1LE1002-1CB23-4AA4
- 1XP8001-11024
- 1fk7060-5af71-1ua3
- 321-1BL00
- 3AY17112E
- 3GD1132-4D
- 3KD3432-0NE10--0
- 3LD2264-1GP51
Can not find your model? Send the nameplate photo and we will match it.
Need 6ES7174-0AA10-0AA0?
Get a Quote in Minutes.
12-month warranty · No MOQ · Worldwide shipping with tracking
Request a Quote
Get the latest price, stock status and bulk order discount for 6ES7174-0AA10-0AA0. Our team replies within 30 minutes (working hours).
