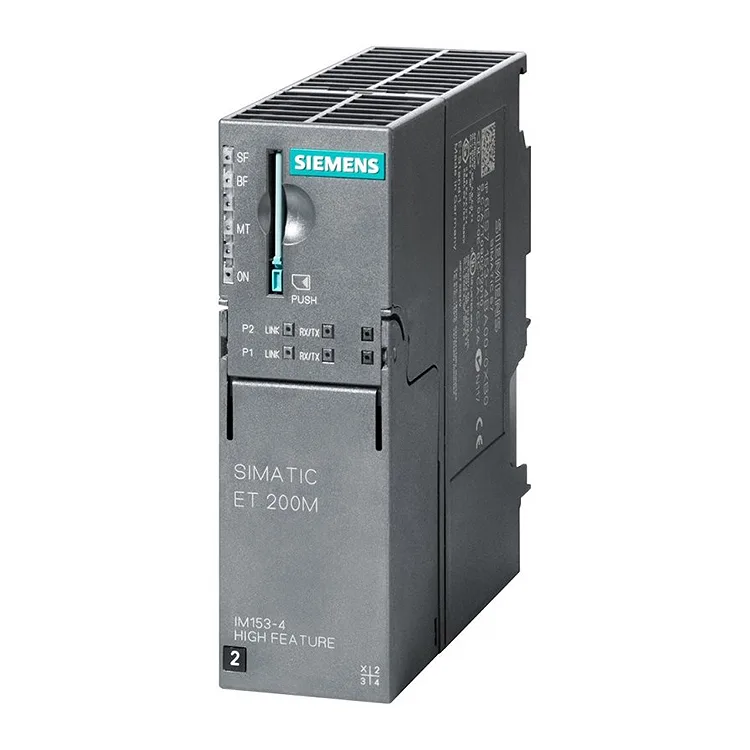

Siemens PROFINET IO Interface Module 6ES7153-4AA01-0XB0
6ES7153-4AA01-0XB0

Siemens
Siemens PROFINET IO Interface Module 6ES7153-4AA01-0XB0
Siemens 6ES7153-4AA01-0XB0 PROFINET IO Interface Module. For SIMATIC ET 200M. Supplied with full traceability and documentation. Worldwide shipping from stock. …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7153-4AA01-0XB0 |
| Official Product Name | SIMATIC ET 200M IM 153-4 PN IO Interface Module |
| Applicable System | SIMATIC ET 200M |
| Product Type | PROFINET IO Interface Module |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Max S7-300 Modules | 12 |
| Real-Time Classes | IRT class 1 and 2 |
| Address Area | 192 byte inputs / 192 byte outputs |
| Supply Voltage | 24 V DC (20.4 - 28.8 V) |
| Current Consumption | max. 600 mA |
| Power Loss | typ. 6 W |
| Protection | IP20 |
| Dimensions | 40 x 125 x 118 mm |
| Weight | approx. 215 g |
| MMC | Not required for operation |
| Network | PROFINET IO |
Product Description
Siemens 6ES7153-4AA01-0XB0 PROFINET IO Interface Module. For SIMATIC ET 200M. Supplied with full traceability and documentation. Worldwide shipping from stock.
It supports up to 12 S7-300 modules per station and provides isochronous real-time communication classes 1 and 2 for deterministic data exchange. Module replacement without a programming device and operation without an MMC simplify maintenance. With dual RJ45 ports and a compact 40 mm wide design, it fits standard DIN-rail cabinet installations. 6ES7153-4AA01-0XB0 is the Siemens SIMATIC ET 200M IM 153-4 PN IO interface module that links an ET 200M distributed I/O station to a PROFINET IO network.
Basic Product Information
- Supports up to 12 S7-300 modules per station
- Isochronous real-time communication classes 1 and 2 (IRT)
- Module replacement without PG and operation without MMC
- Connects ET 200M distributed I/O stations to PROFINET IO
Technical Specifications
Version & Model Difference
IM 153-4 PN IO (6ES7153-4AA01-0XB0) is the Standard (ST) version. The High Feature (HF) variant 6ES7153-4BA00-0XB0 adds support for F-modules, HART, MRP and S2 system redundancy. Choose the version matching your station's feature requirements.
Application Scenarios
- Distributed I/O for PROFINET-based machine and process automation
- Retrofit of ET 200M stations to PROFINET networks
- High-speed isochronous motion and drive applications
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
How many S7-300 modules can the IM 153-4 PN IO support?
Siemens specifies a maximum of 12 S7-300 modules per ET 200M station when using the 6ES7153-4AA01-0XB0 interface module.
Does this interface module require an MMC?
No, the IM 153-4 PN IO operates without a Micro Memory Card. An MMC is only needed if the network lacks LLDP device support.
Which real-time classes are supported?
The module supports isochronous real-time communication classes 1 and 2, enabling deterministic data exchange for time-critical tasks.
What is the difference between the ST and HF versions?
The ST version 6ES7153-4AA01-0XB0 does not support F-modules, HART, MRP or S2 redundancy. The HF version 6ES7153-4BA00-0XB0 adds those features.
