Siemens PROFIBUS DP/PA Interface Module 6ES7153-2BA70-0XB0
6ES7153-2BA70-0XB0

Siemens

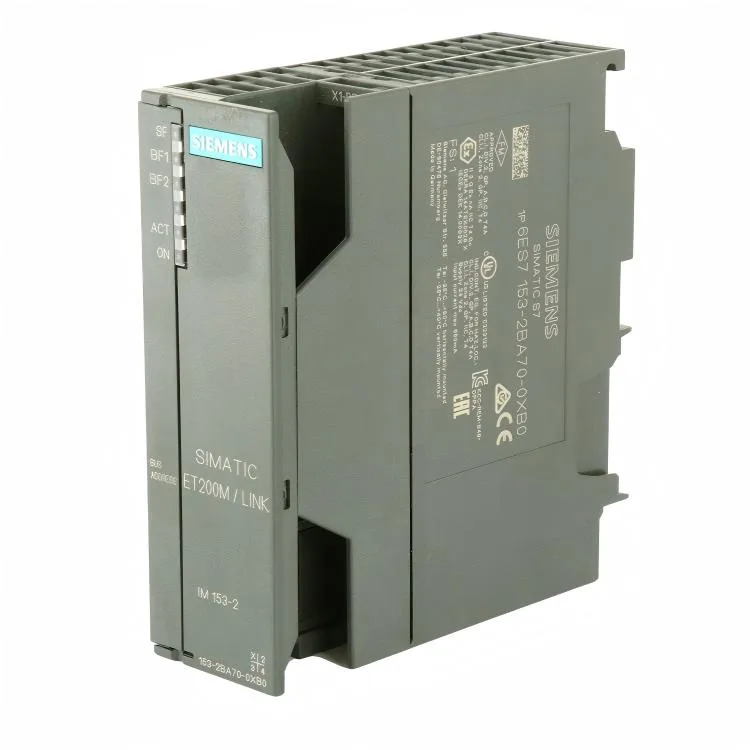

Siemens PROFIBUS DP/PA Interface Module 6ES7153-2BA70-0XB0
Siemens 6ES7153-2BA70-0XB0 PROFIBUS DP/PA Interface Module. For SIMATIC ET 200M Distributed I/O. Supplied with full traceability and documentation. Get a quote.…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7153-2BA70-0XB0 |
| Official Product Name | SIMATIC IM 153-2 HF Interface Module (DP/PA-Link) |
| Applicable System | SIMATIC ET 200M Distributed I/O |
| Product Type | PROFIBUS DP/PA Interface Module |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Current Consumption | max 650 mA; backplane bus 5 V DC max 1.5 A |
| Power Loss | typ. 5.5 W |
| Max S7-300 Modules | 12 |
| Address Capacity | 244 bytes input / 244 bytes output |
| Message Buffers | 15 (20 messages each) |
| Stampable Digital Inputs | max 128 (32 signals per slot) |
| PROFIBUS DP Transmission Rate | up to 12 Mbit/s |
| Node Addresses | 1 to 125 |
| Firmware Version | V6.1 |
| Time Resolution | 0.466 ns (RFC 1119) |
| Dimensions (W x H x D) | approx. 40 x 117 x 125 mm |
| Weight | 0.29 kg |
| Country of Origin | Germany |
| Supply Voltage | 24 V DC (20.4-28.8 V allowed) |
Product Description
It supports up to 12 S7-300 modules per station and is engineered for extended temperature ranges with redundancy, time stamping and isochronous-mode capability. It is the standard head station for rugged, high-density remote I/O in process and factory automation. The Siemens 6ES7153-2BA70-0XB0 is the IM 153-2 High Feature (HF) interface module that connects a SIMATIC ET 200M distributed I/O station to PROFIBUS DP and PROFIBUS PA via DP/PA-Link.
Basic Product Information
- Supports up to 12 S7-300 modules per station with isochronous-mode capability
- Redundancy support for maximum system availability
- Integrated time stamping (1 ms precision) and 15 message buffers (20 messages each)
- Slave initiative for Drive ES and Switch ES; expanded HART secondary variables; 64-channel module support
- DP/PA-Link bridge connecting PROFIBUS DP and PROFIBUS PA networks for ET 200M stations
Technical Specifications
Version & Model Difference
The 6ES7153-2BA70-0XB0 is the current IM 153-2 HF with firmware V6.1, succeeding older IM 153-2 versions (e.g. -2BA00/-2BA02). It adds DP/PA-Link bridging, 64-channel module support, extended HART variables and Drive ES/Switch ES slave initiative versus the standard IM 153-1. Verify compatibility with your ET 200M rack via the Siemens manual.
Application Scenarios
- Process automation distributed I/O in chemical, petrochemical and pharmaceutical plants
- Oil & gas pipeline and tank farm monitoring via PROFIBUS PA field devices
- Harsh-environment remote I/O stations requiring redundancy and extended temperature
- Factory automation lines integrated with SIMATIC controllers
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What networks does the 6ES7153-2BA70-0XB0 connect?
It bridges PROFIBUS DP (up to 12 Mbit/s) and PROFIBUS PA, letting an ET 200M station talk to both networks via DP/PA-Link.
How many modules can it handle?
Up to 12 S7-300 modules per ET 200M station, with 244 bytes each of input and output address space.
Does it support redundant configurations?
Yes, the IM 153-2 HF provides redundancy capability and supports isochronous mode with 1 ms time stamping.
Which firmware version does it ship with?
The module ships with firmware V6.1; updates are applied through SIMATIC Manager or TIA Portal.
