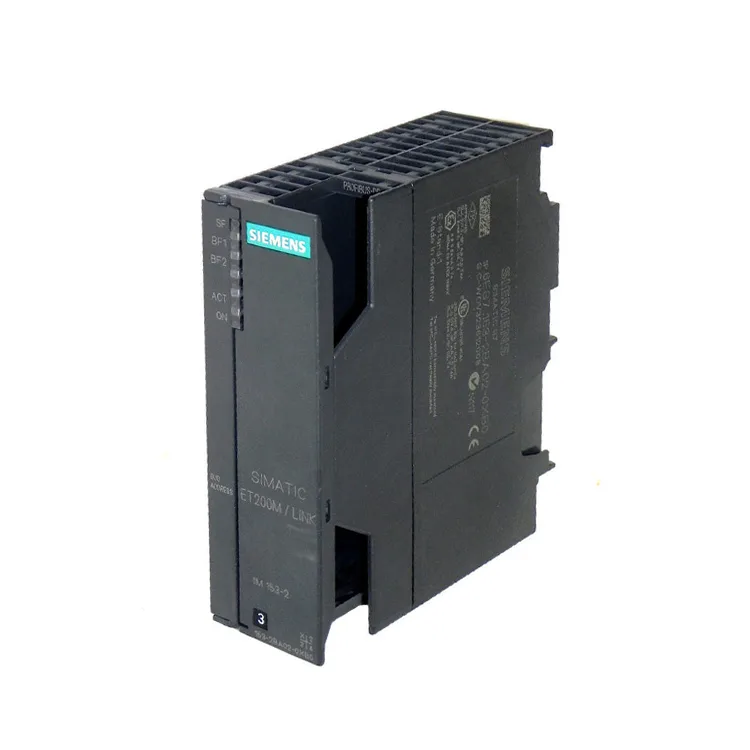

Siemens Interface Module 6ES7153-2BA02-0XB0
6ES7153-2BA02-0XB0

Siemens
Siemens Interface Module 6ES7153-2BA02-0XB0
Siemens 6ES7153-2BA02-0XB0 Interface Module. For SIMATIC ET 200M distributed I/O. Supplied with full traceability and documentation. Request a quote today. Pri…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7153-2BA02-0XB0 |
| Official Product Name | SIMATIC DP, IM 153-2 DP HF for ET 200M |
| Applicable System | SIMATIC ET 200M distributed I/O (PROFIBUS DP) |
| Product Type | Interface Module (IM 153-2 DP High Feature) |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Current consumption, max | 0.6 A |
| Inrush current | 3.0 A typical |
| Power loss, typical | 5.5 W |
| PROFIBUS transmission rate, max | 12 Mbit/s (RS 485) |
| PROFIBUS node addresses | 1 to 125 |
| Modules per DP slave interface, max | 12 |
| Address area inputs / outputs | 244 byte / 244 byte |
| Backplane bus output current, max | 1.5 A at 5 V DC |
| Time stamping accuracy | 1 ms (up to 8 modules), 10 ms (up to 12 modules) |
| Degree of protection | IP20 |
| Ambient operating temperature | 0 to +60 °C |
| Dimensions (W x H x D) | 40 x 125 x 117 mm |
| Weight | approx. 360 g |
| Isolation voltage | 500 V |
| Configuration software | STEP 7 |
| Supply voltage | 24 V DC (20.4 to 28.8 V DC) |
Product Description
It supports up to 12 S7-300 modules per DP slave, redundant (Hot Standby) operation and isochronous mode for motion control. Time stamping with 1 ms accuracy and HART secondary-variable handling make it suited to high-availability process and factory automation. The Siemens 6ES7153-2BA02-0XB0 is the IM 153-2 DP High Feature interface module that connects SIMATIC ET 200M distributed I/O stations to a PROFIBUS DP master.
Basic Product Information
- Redundant operation with bumpless switchover for SIMATIC S7-400H high-availability systems
- Time stamping (SOE) with 1 ms accuracy up to 8 modules / 10 ms up to 12 modules across 128 stampable digital inputs
- Isochronous mode, SYNC/FREEZE, HART secondary-variable handling and 64-channel module support
- Backplane 5 V DC output up to 1.5 A for up to 12 S7-300 modules; hot-swappable with active bus module
- PROFIBUS DP interface up to 12 Mbit/s over RS 485, 9-pin Sub-D, with auto baud-rate detection from 9.6 kbit/s to 12 Mbit/s
Technical Specifications
Version & Model Difference
The 6ES7153-2BA02-0XB0 (firmware V6.0.0) is the High Feature (HF) revision of the IM 153-2 for ET 200M, adding redundancy, time stamping and HART support over the standard IM 153-1. It was announced for discontinuation and superseded by 6ES7153-2BA10-0XB0; both share the same ET 200M rack footprint and active bus-module requirement. Within the 2BAxx family it differs from 2BA01 by a higher backplane current (1.5 A vs 1 A) to support 12 modules.
Application Scenarios
- Distributed I/O for process and factory automation on PROFIBUS DP
- High-availability S7-400H systems requiring redundant ET 200M stations
- Motion control and isochronous synchronous drive applications
- Motor and process monitoring with HART-enabled smart field instruments
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
How many S7-300 modules can the 6ES7153-2BA02-0XB0 support?
It supports up to 12 S7-300 modules (SM/FM/CP/F) per DP slave interface, each slot able to host high-density 64-channel modules, supplied by the 5 V DC backplane bus up to 1.5 A.
Does this interface module support redundancy?
Yes. The IM 153-2 DP HF supports redundant (Hot Standby) operation with bumpless switchover for SIMATIC S7-400H systems; two modules run in parallel and the standby takes over without process interruption.
What is the time-stamping accuracy and where is it used?
Time stamping (SOE) is 1 ms for configurations up to 8 modules and 10 ms up to 12 modules, covering up to 128 digital inputs. It is used for sequence-of-events recording in process automation.
Is the 6ES7153-2BA02-0XB0 still available and what replaces it?
It is a discontinued spare-part article; the active successor is 6ES7153-2BA10-0XB0. Both are mechanically and electrically compatible within the ET 200M system when paired with active bus modules.
