Siemens PROFIBUS DP Interface Module 6ES7151-1AA05-0AB0
6ES7151-1AA05-0AB0

Siemens

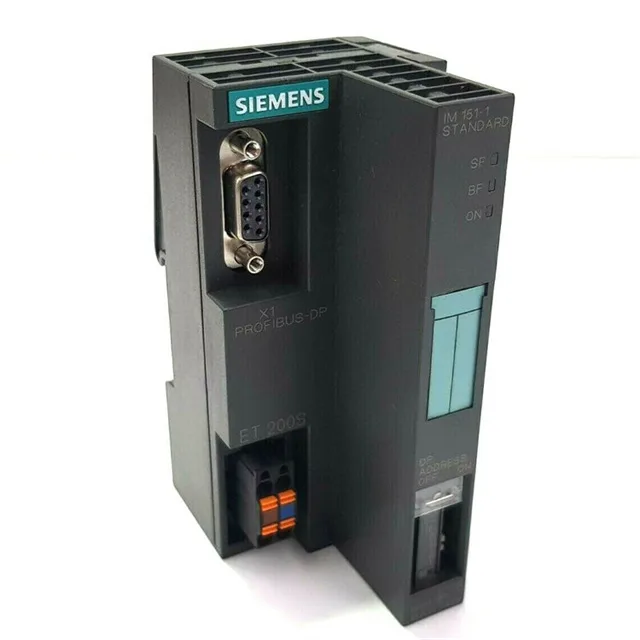

Siemens PROFIBUS DP Interface Module 6ES7151-1AA05-0AB0
Siemens 6ES7151-1AA05-0AB0 PROFIBUS DP Interface Module. For SIMATIC ET 200S. Supplied with full traceability and documentation. Worldwide shipping from stock. …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7151-1AA05-0AB0 |
| Official Product Name | SIMATIC ET 200S IM 151-1 Standard Interface Module |
| Applicable System | SIMATIC ET 200S |
| Product Type | PROFIBUS DP Interface Module |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Transmission Procedure | RS 485 |
| Max Transmission Rate | 12 Mbit/s |
| Max Peripheral Modules | 63 |
| Max Station Width | 2 m |
| Data Volume | 244 byte inputs / 244 byte outputs |
| Bus Connector | 9-pin D-sub (including terminating module) |
| Max Cable Length | 1200 m |
| Supply Voltage | 24 V DC (reverse-polarity protected) |
| Power Loss | typ. 3.3 W |
| Protection | IP20 |
| Dimensions | 45 x 119.5 x 75 mm |
| Weight | approx. 150 g |
| Bus Protocol | PROFIBUS DP V0 / V1 |
Product Description
Siemens 6ES7151-1AA05-0AB0 PROFIBUS DP Interface Module. For SIMATIC ET 200S. Supplied with full traceability and documentation. Worldwide shipping from stock.
It connects up to 63 peripheral modules within a 2 m station width to a PROFIBUS DP network at rates up to 12 Mbit/s using a 9-pin D-sub connector. The module provides 244 bytes of input and output address space, galvanic isolation and diagnostic LEDs for bus fault, system fault and 24 V supply. 6ES7151-1AA05-0AB0 is the Siemens SIMATIC ET 200S IM 151-1 Standard PROFIBUS DP interface module that acts as the slave head of an ET 200S distributed I/O station.
Basic Product Information
- Supports up to 63 peripheral modules within a 2 m station width
- 244 bytes each of input and output address space
- Galvanic isolation and diagnostic LEDs (SF, BF, 24 V)
- PROFIBUS DP V0 and V1 slave interface up to 12 Mbit/s
Technical Specifications
Version & Model Difference
IM 151-1 Standard (6ES7151-1AA05-0AB0) is discontinued; the official successor is 6ES7151-1AA06-0AB0 with identical functions. For a PROFINET version use IM 151-3 PN (6ES7151-3AA23-0AB0). Match the bus type and module count when replacing.
Application Scenarios
- Distributed I/O expansion for PROFIBUS DP controlled machines
- Packaging, logistics and process automation retrofits
- Modular remote I/O close to field devices
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the successor to 6ES7151-1AA05-0AB0?
The function-compatible successor is 6ES7151-1AA06-0AB0. The original 6ES7151-1AA05-0AB0 is discontinued and supplied as a spare part only.
How many modules and what data volume does it support?
It connects up to 63 ET 200S peripheral modules within a 2 m station and provides 244 bytes of input and 244 bytes of output address space.
What transmission rates are supported on PROFIBUS DP?
The module supports PROFIBUS DP V0 and V1 at rates from 9.6 kbit/s up to 12 Mbit/s, with a maximum cable length of 1200 m.
Which connector and bus type does it use?
It uses a 9-pin D-sub RS 485 PROFIBUS DP connection and is supplied with an integrated terminating module, so no external termination resistor is needed.
Other Siemens Models We Stock
- 1FL6034-2AF21-1AA1
- 1FL6062-1AC61-2AA1
- 1FL6066-1AC61-2LH1
- 1FL6092-1AC61-2AA1
- 1LE1002-1CB23-4AA4
- 1XP8001-11024
- 1fk7060-5af71-1ua3
- 321-1BL00
- 3AY17112E
- 3GD1132-4D
- 3KD3432-0NE10--0
- 3LD2264-1GP51
Can not find your model? Send the nameplate photo and we will match it.
Need 6ES7151-1AA05-0AB0?
Get a Quote in Minutes.
12-month warranty · No MOQ · Worldwide shipping with tracking
Request a Quote
Get the latest price, stock status and bulk order discount for 6ES7151-1AA05-0AB0. Our team replies within 30 minutes (working hours).
