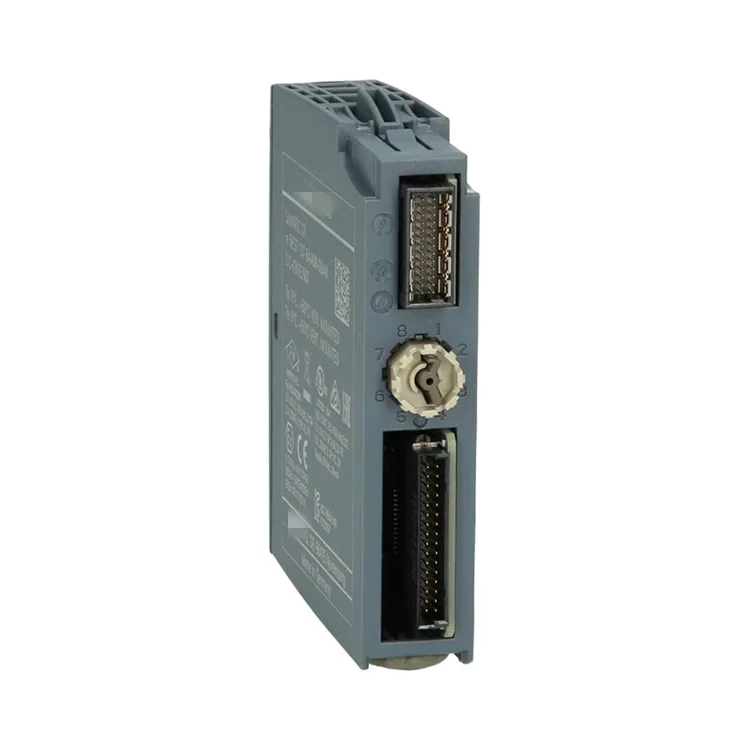

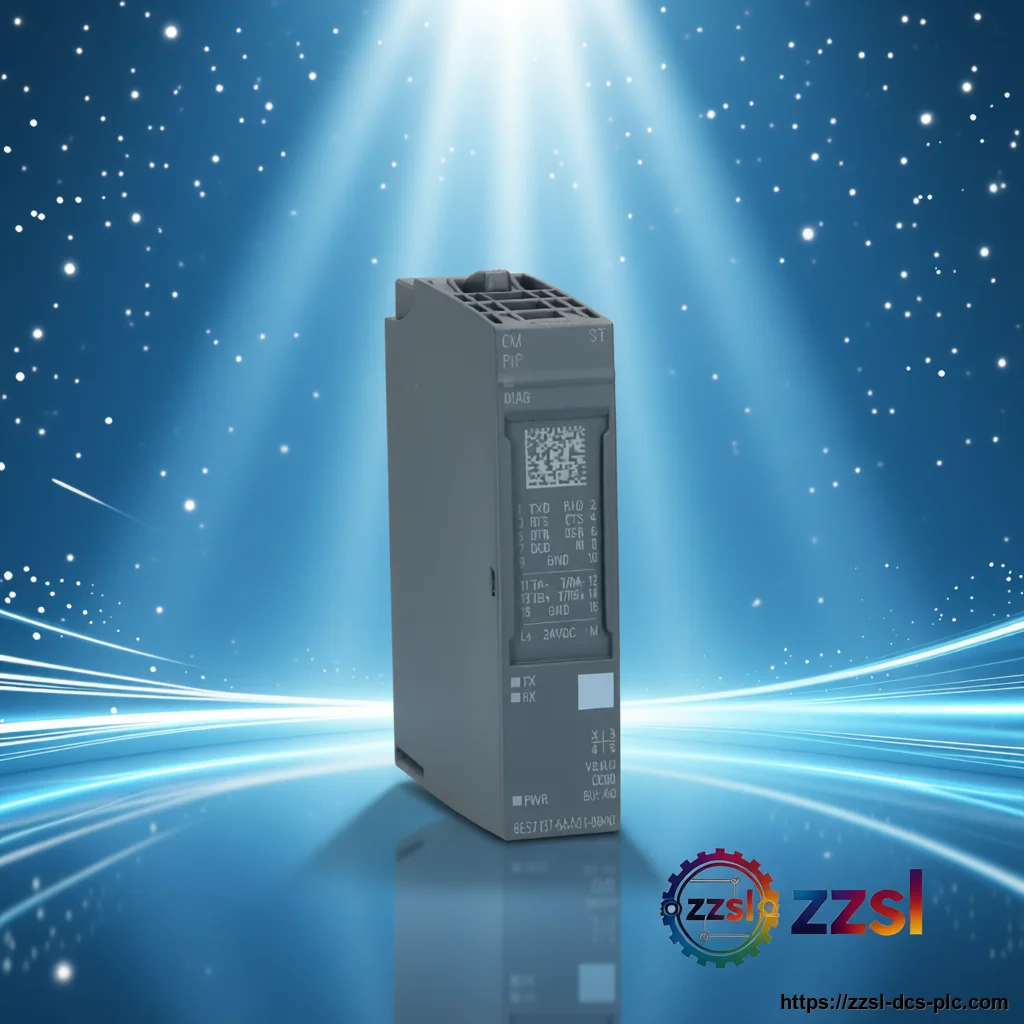

SIEMENS Serial point-to-point 6ES7137-6AA01-0BA0
6ES7137-6AA01-0BA0
Siemens
SIEMENS Serial point-to-point 6ES7137-6AA01-0BA0
Home > Products > Siemens > Communication Module SIEMENS 6ES7137-6AA01-0BA0 Serial point-to-point communication module. For ET 200SP distributed I/O. …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7137-6AA01-0BA0 |
| Official Product Name | ET 200SP CM PtP Communication Module |
| Applicable System | ET 200SP distributed I/O |
| Product Type | Serial point-to-point communication module |
| Equivalent Standard | N/A |
| Product Status | Active production |
| Order number | 6ES7137-6AA01-0BA0 |
| Function | Serial PtP communication module |
| Interface | RS232/422/485 (per variant) |
| Country of origin | Germany |
| Product family | SIMATIC ET 200SP |
Product Description
SIEMENS 6ES7137-6AA01-0BA0 Serial point-to-point communication module. For ET 200SP distributed I/O. Supplied with full traceability and documentation.
It adds RS232/RS422/RS485 interfaces for connecting serial devices in compact I/O stations. The Siemens ET 200SP CM PtP (order number 6ES7137-6AA01-0BA0) is a point-to-point serial communication module for the ET 200SP distributed I/O system.
Basic Product Information
- Supports RS232 / RS422 / RS485 (per configuration)
- Compact single-module width in the ET 200SP system
- Configured in TIA Portal / STEP 7
- Serial point-to-point communication for ET 200SP
Technical Specifications
Version & Model Difference
- The 6AA01-0BA0 is the current CM PtP variant; confirm sub-interface (RS232/422/485) and protocol (Freeport, 3964R, etc.) with the supplier.
Application Scenarios
- Distributed I/O serial links
- Connection of meters, scanners, drives
- Retrofit of legacy serial equipment
- Siemens 6SL3246-0BA22-1PA0 - SINAMICS G120 CU250S-2 DP Control Unit
- Siemens 6SL3210-1PE27-5UL0 - SINAMICS G120 PM240-2 Power Module
- Siemens 6SL3055-0AA00-5BA3 - SINAMICS S120 SMC20 Encoder Sensor Module
- Siemens 1FL6062-1AC61-2AA1 - SIMOTICS S-1FL6 Servo Motor
- Siemens 1FL6092-1AC61-2AA1 - SIMOTICS S-1FL6 Servo Motor
- Siemens 1FL6034-2AF21-1AA1 - SIMOTICS S-1FL6 Low-Inertia Servo Motor
- Siemens F-3A Cartridge Fuse
Frequently Asked Questions
What is the ET 200SP CM PtP?
It is a Siemens serial communication module for the ET 200SP I/O system, providing RS232/422/485 point-to-point links.
Which PLC does it work with?
It is used within ET 200SP stations connected to SIMATIC controllers such as S7-1200 and S7-1500.
Which serial standard does it support?
It supports RS232, RS422 and RS485 depending on the configured variant and front connector.
How is it configured?
Configuration is done in TIA Portal / STEP 7 with the appropriate communication protocol selected.
