Siemens Analog Output Module 6ES7135-6HD00-0BA1
6ES7135-6HD00-0BA1

Siemens

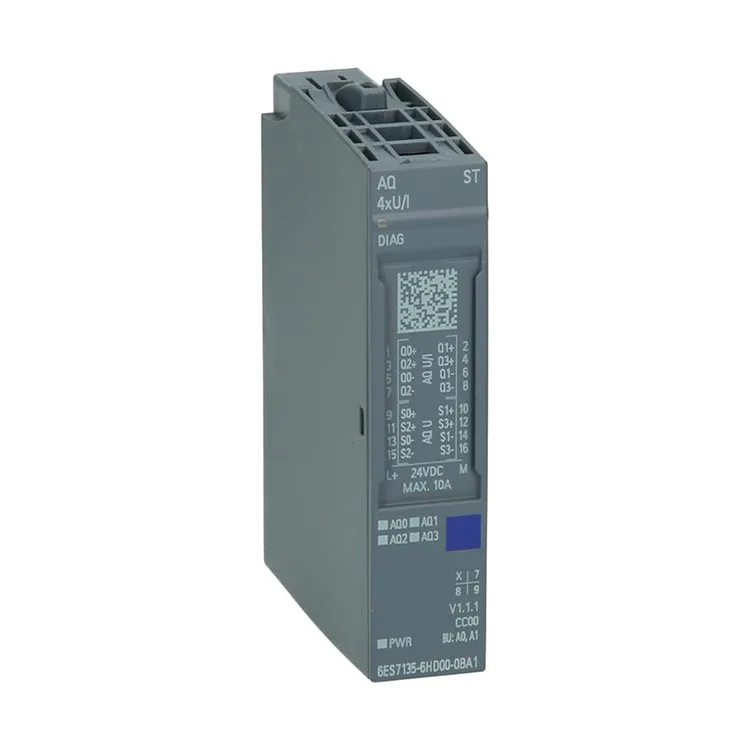

Siemens Analog Output Module 6ES7135-6HD00-0BA1
Siemens 6ES7135-6HD00-0BA1 Analog Output Module. For SIMATIC ET200SP. Supplied with full traceability and documentation. Worldwide shipping from stock. Price &…
Quoted price from our sales team
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7135-6HD00-0BA1 |
| Official Product Name | ET200SP Analog Output Module AQ 4xU/I ST |
| Applicable System | SIMATIC ET200SP |
| Product Type | Analog Output Module |
| Equivalent Standard | cross-reference available on request |
| Product Status | Active |
| Lifecycle note | Active / Available |
| Resolution | 16 bit |
| Accuracy | plus/minus 0.3 % |
| BaseUnit type | A0 or A1 |
| Color code | CC00 |
| Supply voltage | 24 V DC (19.2-28.8 V) |
| Power loss | 1.5 W |
| Weight | 0.031 kg / 0.039 kg |
| Country of origin (typical) | Germany |
| Number of outputs | 4 analog outputs (voltage/current) |
Product Description
Siemens 6ES7135-6HD00-0BA1 Analog Output Module. For SIMATIC ET200SP. Supplied with full traceability and documentation. Worldwide shipping from stock.
Basic Product Information
- 16-bit resolution with plus/minus 0.3% accuracy
- Suitable for BaseUnit type A0 or A1, color code CC00
- Compact single-module width with push-in connection
- Powered from the ET200SP backplane bus
- 4 analog outputs, voltage and current
Technical Specifications
Version & Model Difference
- ET200SP AQ family: 2xU/I (6ES7135-6FB00-0BA1), 4xU/I ST (6ES7135-6HD00-0BA1), 4xU/I HF (6ES7135-6HD01-0BA1). This is the 4-channel standard version.
Application Scenarios
- Analog setpoint generation for actuators
- Process control loops in distributed I/O
- Compact cabinet analog output expansion
- It is powered from the ET200SP backplane bus at 24 V DC with about 1.5 W power loss.
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
How many outputs and what signal types?
It provides 4 analog outputs configurable for voltage and current signals with 16-bit resolution.
What BaseUnit does it need?
It fits BaseUnit type A0 or A1 with color code CC00.
What is the accuracy?
Accuracy is plus/minus 0.3% of the output value.
How is it powered?
It is powered from the ET200SP backplane bus at 24 V DC with about 1.5 W power loss.
