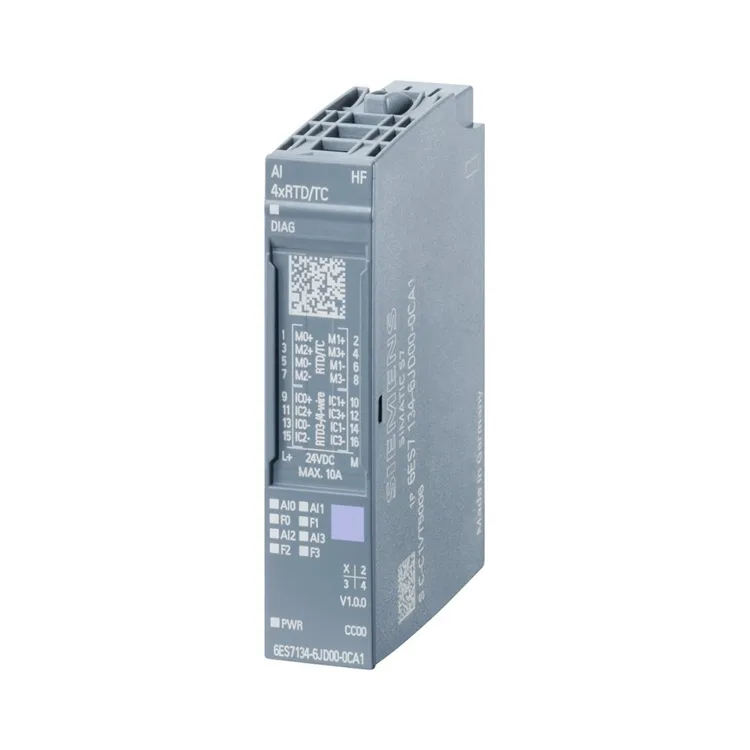

Siemens Analog Input Module 6ES7134-6JD00-0CA1
6ES7134-6JD00-0CA1

Siemens
Siemens Analog Input Module 6ES7134-6JD00-0CA1
Siemens 6ES7134-6JD00-0CA1 Analog Input Module. For ET 200SP Distributed I/O. Supplied with full traceability and documentation. Worldwide shipping from stock. …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7134-6JD00-0CA1 |
| Official Product Name | SIMATIC ET 200SP AI 4xRTD/TC HF |
| Applicable System | ET 200SP Distributed I/O |
| Product Type | Analog Input Module |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | Available |
| Model | 6ES7134-6JD00-0CA1 |
| Family | SIMATIC ET 200SP |
| Module Type | AI 4xRTD/TC HF |
| Input Channels | 4 (RTD / thermocouple) |
| Supply Voltage | 24 V DC (via base) |
| Weight | 30 g |
| Dimensions (HxWxD) | 15 x 73 x 58 mm |
| Country of Origin | Germany |
| Material | Contact us for exact specifications |
Product Description
Siemens 6ES7134-6JD00-0CA1 Analog Input Module. For ET 200SP Distributed I/O. Supplied with full traceability and documentation. Worldwide shipping from stock.
It is used to acquire temperature signals in distributed I/O stations. The module is powered from the ET 200SP base, weighs about 30 g and has a compact footprint of roughly 15 x 73 x 58 mm. Its HF grade offers enhanced diagnostics and measurement accuracy for demanding process applications. Manufactured in Germany, this is a genuine Siemens I/O module supplied from verified stock. Confirm the sensor type and base/server module for your station. The Siemens 6ES7134-6JD00-0CA1 is a SIMATIC ET 200SP analog input module (AI) providing 4 channels for resistance thermometers (RTD) and thermocouples (TC) in a high-feature (HF) grade.
Basic Product Information
- 4 channels for RTD and thermocouple inputs.
- High-feature (HF) grade with enhanced diagnostics.
- Compact, lightweight design (approx. 30 g, 15 x 73 x 58 mm).
- Powered via the ET 200SP base unit.
- Manufactured in Germany; supplied from verified stock.
- Genuine Siemens ET 200SP analog input module.
Technical Specifications
Version & Model Difference
- The 6ES7134-6JD00-0CA1 is the high-feature (HF) 4-channel RTD/TC analog input. Standard (ST) and other channel-count variants exist with different order numbers; confirm the required grade.
Application Scenarios
- Temperature acquisition in distributed I/O stations.
- Process and machine monitoring with RTD/thermocouples.
- Compact analog input expansion for ET 200SP.
- It draws 24 V DC through the ET 200SP base unit.
- The module is manufactured in Germany and supplied as a genuine Siemens part.
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the 6ES7134-6JD00-0CA1?
It is a Siemens ET 200SP analog input module with 4 channels for RTD and thermocouple signals in a high-feature grade.
What are its dimensions and weight?
It weighs about 30 g and measures approximately 15 x 73 x 58 mm.
How is it powered?
It draws 24 V DC through the ET 200SP base unit.
Where is it made?
The module is manufactured in Germany and supplied as a genuine Siemens part.
