Siemens · PLC Module

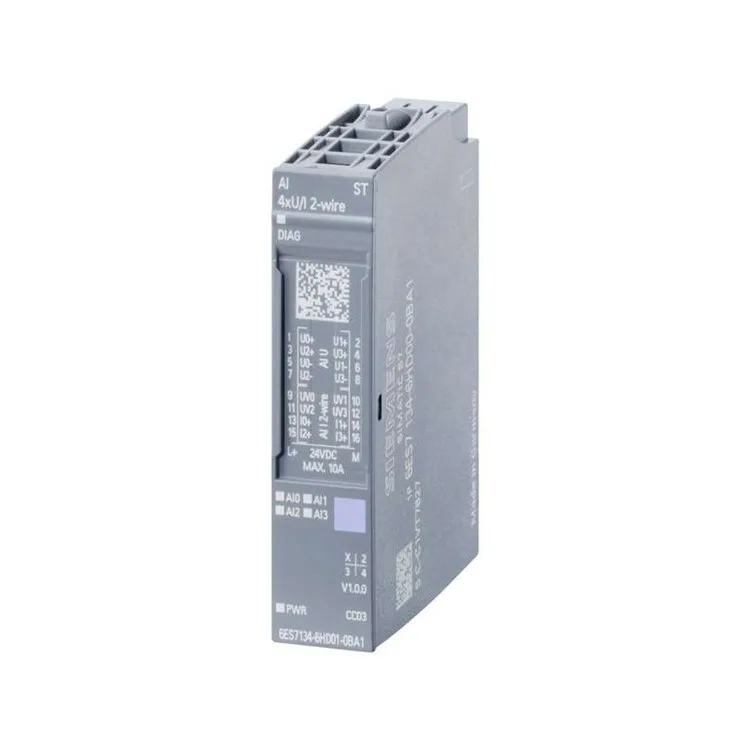

Siemens Analog Input Module 6ES7134-6HD01-0BA1
6ES7134-6HD01-0BA1

Siemens
Siemens Analog Input Module 6ES7134-6HD01-0BA1
Siemens 6ES7134-6HD01-0BA1 Analog Input Module. For SIMATIC ET 200SP distributed I/O. Supplied with full traceability and documentation. Request a quote today. …
$24.73
Current ModelAvailability on request
Quoted price from our sales team
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7134-6HD01-0BA1 |
| Official Product Name | SIMATIC ET 200SP AI 4xU/I 2-Wire Standard Module |
| Applicable System | SIMATIC ET 200SP distributed I/O |
| Product Type | Analog Input Module |
| Equivalent Standard | cross-reference available on request |
| Product Status | Active |
| Resolution | 16 bit |
| Accuracy | plus/minus 0.3% |
| Supply voltage | 24 V DC (19.2 - 28.8 V) |
| Base unit compatibility | BU type A0, A1 |
| Color code | CC03 |
| Power dissipation | typ. 0.85 W (without sensor supply) |
| Weight | approx 0.04 kg |
| Number of inputs | 4 analog inputs (U/I, 2-wire) |
Product Description
Basic Product Information
- 16-bit resolution with plus/minus 0.3% accuracy
- Module diagnostics and color-code CC03 identification
- Fits BU type A0 / A1 base units
- 4 analog input channels (voltage or current, 2-wire)
Technical Specifications
Version & Model Difference
- The 6ES7134-6HD01-0BA1 is the Standard (ST) 4-channel 2-wire AI module. Higher-performance (HS) and other channel-count variants exist within the ET 200SP AI family. available upon request.
Application Scenarios
- Process variable acquisition in ET 200SP systems
- Voltage and current signal measurement
- Distributed I/O for machine and plant automation
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
How many channels does this module have?
It provides 4 analog input channels for voltage or current signals in 2-wire connection.
What resolution and accuracy does it offer?
16-bit resolution with plus/minus 0.3% accuracy.
Which base units are required?
It fits ET 200SP BU type A0 and A1 base units with color code CC03.
What supply voltage is needed?
24 V DC, with an allowable range of 19.2 to 28.8 V.
