Siemens Analog Input Module 6ES7134-6GF00-0AA1
6ES7134-6GF00-0AA1

Siemens

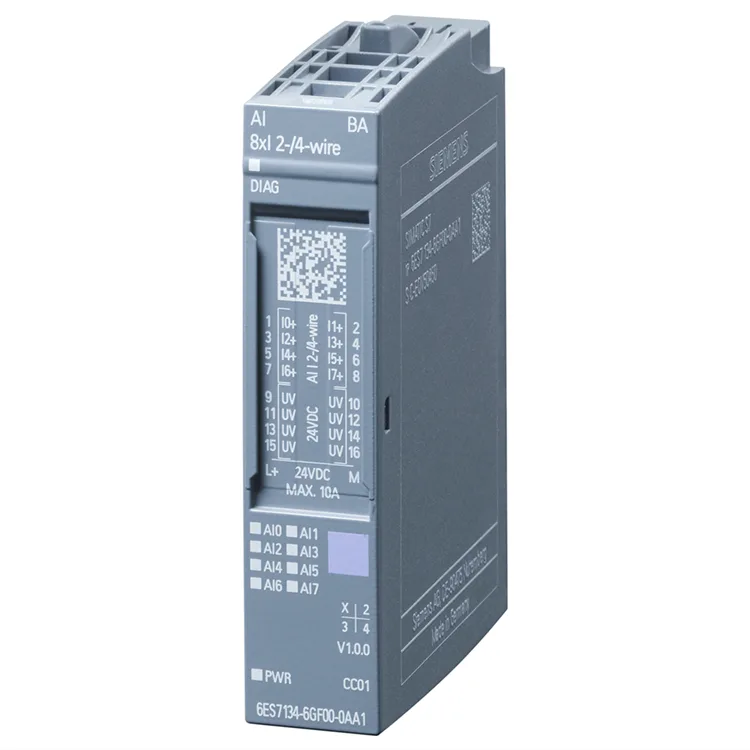

Siemens Analog Input Module 6ES7134-6GF00-0AA1
Siemens 6ES7134-6GF00-0AA1 Analog Input Module. For SIMATIC ET 200SP distributed I/O system. Supplied with full traceability and documentation. Get a quote. Pr…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7134-6GF00-0AA1 |
| Official Product Name | SIMATIC ET 200SP, Analog input module, AI 2xU/I 2-wire |
| Applicable System | SIMATIC ET 200SP distributed I/O system |
| Product Type | Analog Input Module |
| Equivalent Standard | IEC 61131-2, EN 50178 |
| Product Status | In Stock |
| Resolution | 16 bits |
| Measuring ranges (voltage) | ±10 V, 0-10 V, 1-5 V |
| Measuring ranges (current) | 0-20 mA, 4-20 mA, ±20 mA |
| Supply voltage | 24 V DC (20.4 to 28.8 V) |
| Cycle time (all channels) | 9 ms |
| Input filter time | 0.1 ms to 100 ms (parameterizable) |
| Dimensions (W x H x D) | 15 mm x 73 mm x 58 mm |
| Weight | Approx. 40 g |
| Power loss | 1.5 W (typical) |
| Operating temperature | -30 °C to +60 °C |
| Degree of protection | IP20 |
| Number of analog inputs | 2 |
Product Description
This module provides two analog input channels that can be configured for voltage (U) or current (I) measurement, supporting 2-wire transducers. With a resolution of 16 bits, it ensures high-precision data acquisition for industrial process monitoring and control applications. This module operates with a supply voltage of 24 V DC and features a cycle time of 9 ms for all channels, enabling fast and reliable signal processing. It supports various measuring ranges, including ±10 V, 0-10 V, 1-5 V, 0-20 mA, 4-20 mA, and ±20 mA, offering flexibility for different sensor types. The module is designed for use in hazardous areas (Zone 2) and is equipped with diagnostics and alarm functions to enhance system reliability. Mechanically, the 6ES7134-6GF00-0AA1 is compact, with dimensions of 15 mm width, 73 mm height, and 58 mm depth, and weighs approximately 40 grams. It requires a light-colored base unit (e.g., 6ES7193-6BP00-0DA0 or 6ES7193-6BP00-0BA0) for mounting on the ET 200SP rail. The module supports up to 63 modules per station and is compatible with firmware versions V1.0 and above. Its robust design and compliance with international standards make it a reliable choice for various industrial automation applications. The Siemens 6ES7134-6GF00-0AA1 is an analog input module belonging to the SIMATIC ET 200SP series, specifically designed for distributed I/O systems.
Basic Product Information
- 16-bit resolution for high-precision signal conversion
- Supports 2-wire transducers and various measuring ranges
- Diagnostics and alarm functions for enhanced reliability
- Compact design for space-saving installation in ET 200SP systems
- Suitable for use in hazardous areas (Zone 2)
- 2 analog input channels for voltage or current measurement
Technical Specifications
Version & Model Difference
The 6ES7134-6GF00-0AA1 is the current standard version of the ET 200SP analog input module. Earlier versions (e.g., 6ES7134-6GF00-0AB1) may have had different firmware or hardware revisions. The -0AA1 version supports firmware V1.0 and above, and is fully compatible with ET 200SP base units and BusAdapter. No significant functional differences are noted for this module compared to its predecessors, but it is recommended to use the latest version for optimal performance and compatibility with newer TIA Portal versions.
Application Scenarios
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the resolution of the Siemens 6ES7134-6GF00-0AA1 analog input module?
The module has a resolution of 16 bits, which provides high-precision conversion of analog signals to digital values. This ensures accurate measurement for industrial process control.
Can the 6ES7134-6GF00-0AA1 be used in hazardous areas?
Yes, the module is approved for use in hazardous areas (Zone 2) according to ATEX and IECEx certifications. It is designed to operate safely in potentially explosive atmospheres when installed correctly.
What measuring ranges are supported by this module?
The module supports voltage ranges of ±10 V, 0-10 V, and 1-5 V, as well as current ranges of 0-20 mA, 4-20 mA, and ±20 mA. These ranges can be configured via the hardware configuration in TIA Portal.
What base unit is required for the 6ES7134-6GF00-0AA1?
The module requires a light-colored base unit from the ET 200SP series, such as the 6ES7193-6BP00-0DA0 (2-terminal) or 6ES7193-6BP00-0BA0 (4-terminal). The base unit provides the electrical connection and mechanical mounting for the module.
