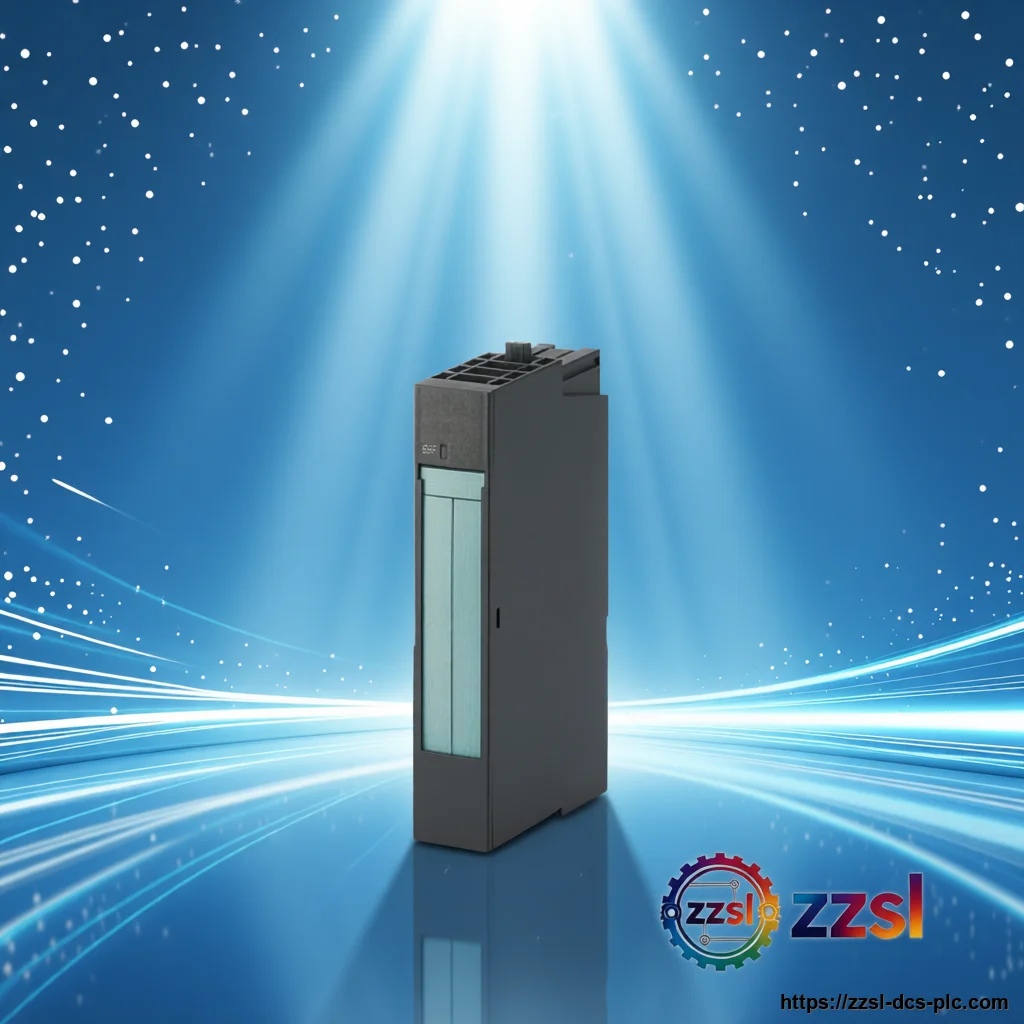

Siemens Analog Input Module 6ES7134-4FB52-0AB0
6ES7134-4FB52-0AB0

Siemens
Siemens Analog Input Module 6ES7134-4FB52-0AB0
Siemens 6ES7134-4FB52-0AB0 Analog Input Module. For SIMATIC ET 200S distributed I/O. Supplied with full traceability and documentation. Request a quote today. …
Quoted price from our sales team
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7134-4FB52-0AB0 |
| Official Product Name | ET 200S 2AI U High Speed Analog Electronic Module |
| Applicable System | SIMATIC ET 200S distributed I/O |
| Product Type | Analog Input Module (Electronic Module) |
| Equivalent Standard | cross-reference available on request |
| Product Status | Mature |
| Lifecycle note | Active / Mature |
| Resolution | 15 bit + sign |
| Input ranges | +/-10 V, +/-5 V, +/-2.5 V, 1 to 5 V |
| Module cycle time | 0.1 ms (when configured as 6ES7134-4FB52-0AB0) |
| Supply voltage | 24 V DC (from power module) |
| Power dissipation | typ. 2 W |
| Width | 15 mm |
| Weight | approx 0.1 kg |
| Number of inputs | 2 analog voltage inputs |
Product Description
Basic Product Information
- 15-bit plus sign resolution
- 0.1 ms cycle time for very fast acquisition
- Galvanic isolation between channels and backplane bus
- 2 high-speed voltage analog inputs
Technical Specifications
Version & Model Difference
- The 6ES7134-4FB52-0AB0 upgrades the 6ES7134-4FB51-0AB0 with 15-bit resolution and 0.1 ms cycle time. It is backward-compatible when configured as the earlier variant. available upon request.
Application Scenarios
- Very fast voltage signal acquisition
- High-speed test and measurement stands
- Distributed I/O in ET 200S systems
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What resolution does this module provide?
It provides 15-bit plus sign resolution for the voltage input ranges.
How fast is the cycle time?
The module cycle time is 0.1 ms when configured as the 6ES7134-4FB52-0AB0 variant.
Does it require a terminal module?
Yes. ET 200S electronic modules plug into a compatible TM-E terminal module for field wiring.
Is it compatible with the earlier 4FB51 module?
Yes. It can be configured as the 6ES7134-4FB51-0AB0 / 4FB50-0AB0 for backward compatibility.
