Siemens Digital Output Module 6ES7132-6BH01-0BA0
6ES7132-6BH01-0BA0

Siemens
Siemens Digital Output Module 6ES7132-6BH01-0BA0

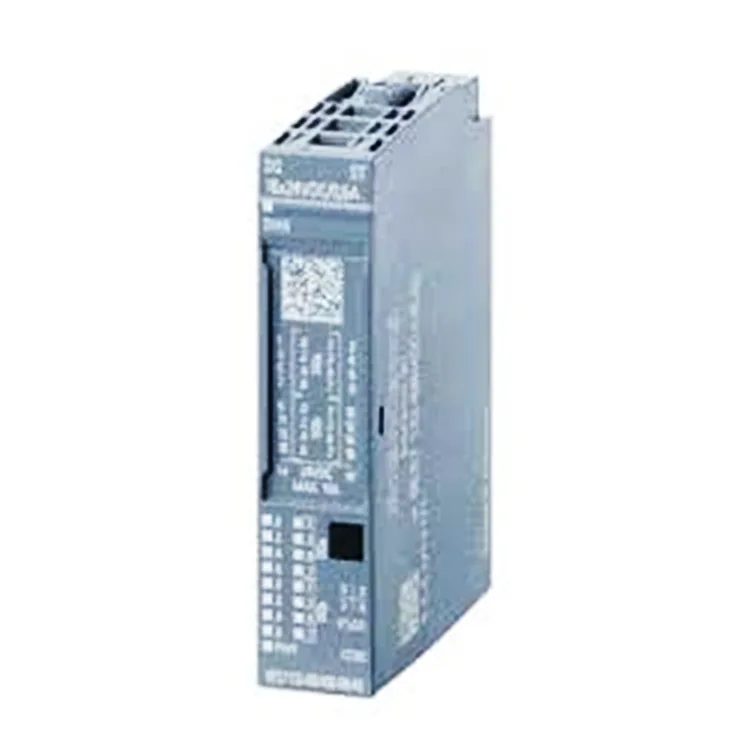

Siemens 6ES7132-6BH01-0BA0 Digital Output Module. For SIMATIC ET 200SP. Supplied with full traceability and documentation. Worldwide shipping from stock. Price…
Market reference price (web) | https://priceofparts.com/part/6es7132-6bh01-0ba0/
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7132-6BH01-0BA0 |
| Official Product Name | SIMATIC ET 200SP, Digital output module, DQ 8x24VDC/0.5A |
| Applicable System | SIMATIC ET 200SP |
| Product Type | Digital Output Module |
| Equivalent Standard | IEC 61131-2, UL, CSA, ATEX (depending on version) |
| Product Status | In Stock |
| Output voltage | 24V DC (20.4 to 28.8V) |
| Output current per channel | 0.5A |
| Total output current | 4A (max) |
| Switching frequency | Resistive load: max 100 Hz, Inductive load: max 0.5 Hz, Lamp load: max 10 Hz |
| Load type | Resistive, inductive, lamp |
| Diagnostics | Wire break, short-circuit, supply voltage monitoring |
| Supply voltage | 24V DC via base unit |
| Power loss | Typical 1.5W |
| Dimensions (W x H x D) | 15 x 73 x 58 mm (without base unit) |
| Weight | Approx. 30g |
| Operating temperature | -30°C to +60°C |
| Number of digital outputs | 8 |
Product Description
Siemens 6ES7132-6BH01-0BA0 Digital Output Module. For SIMATIC ET 200SP. Supplied with full traceability and documentation. Worldwide shipping from stock.
It provides 8 digital outputs with a nominal voltage of 24V DC and a rated current of 0.5A per channel. The module is designed for high-density applications and supports various load types including resistive, inductive, and lamp loads. It features short-circuit protection and diagnostic capabilities, ensuring reliable operation in industrial environments. This module is part of the ET 200SP series, known for its compact design and modular flexibility. It can be used with various base units (e.g., 6ES7193-6BP00-0DA0 or 6ES7193-6BP00-0BA0) and supports up to 64 modules per station. The 6ES7132-6BH01-0BA0 is equipped with a push-in terminal block for easy wiring and is compatible with the ET 200SP system's extensive range of accessories. With its high switching frequency and robust design, the module is ideal for applications requiring precise control of actuators, valves, and indicators. It is certified for use in industrial environments and meets international standards, making it a reliable choice for automation projects worldwide. The Siemens 6ES7132-6BH01-0BA0 is a digital output module belonging to the SIMATIC ET 200SP distributed I/O system.
Basic Product Information
- Short-circuit and overload protection
- Diagnostic functions for wire break and supply voltage
- Compact design for ET 200SP system
- Supports resistive, inductive, and lamp loads
- Push-in terminal block for quick wiring
- 8 digital outputs, 24V DC, 0.5A per channel
Technical Specifications
Version & Model Difference
The 6ES7132-6BH01-0BA0 is the latest version of the ET 200SP digital output module. Previous versions (e.g., 6ES7132-6BH00-0BA0) may have had different firmware or minor hardware revisions. The -0BA0 suffix indicates the current version with enhanced diagnostics and compatibility with the latest ET 200SP base units. It is recommended to use the latest version for new installations to ensure full functionality and support.
Application Scenarios
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the output current rating of the 6ES7132-6BH01-0BA0?
Each of the 8 digital outputs can handle a maximum current of 0.5A at 24V DC. The total current for all outputs is limited to 4A, and the module has short-circuit protection.
Can I use this module with an S7-1200 PLC?
Yes, the 6ES7132-6BH01-0BA0 is part of the ET 200SP distributed I/O system, which can be connected to S7-1200 via PROFINET or PROFIBUS using an appropriate interface module.
What type of loads can be connected to the outputs?
The module supports resistive, inductive, and lamp loads. For inductive loads, it is recommended to use an external freewheeling diode to protect the output stage.
Does the module provide diagnostic functions?
Yes, the module offers diagnostics for wire break, short-circuit, and supply voltage monitoring. These diagnostics can be read via the ET 200SP system and help in troubleshooting.
