Siemens Digital Output Module 6ES7132-6BH00-0BA0
6ES7132-6BH00-0BA0

Siemens
Siemens Digital Output Module 6ES7132-6BH00-0BA0

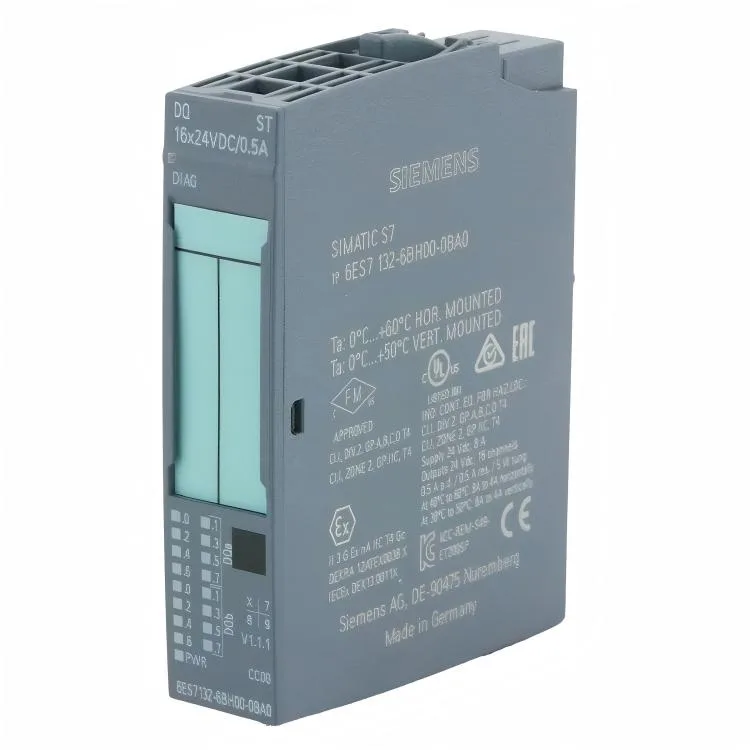

Siemens 6ES7132-6BH00-0BA0 Digital Output Module. For SIMATIC ET 200SP distributed I/O system. Supplied with full traceability and documentation. Get a quote. …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7132-6BH00-0BA0 |
| Official Product Name | SIMATIC ET 200SP, DQ 16x 24V DC/0.5A ST |
| Applicable System | SIMATIC ET 200SP distributed I/O system |
| Product Type | Digital Output Module |
| Equivalent Standard | Replacement: 6ES7132-6BH01-0BA0 |
| Product Status | In Stock |
| Output type | Source output (PNP, P-switching) |
| Rated output voltage | 24 V DC (range 19.2–28.8 V DC) |
| Output current per channel | 0.5 A |
| Total current per module | 8 A (≤40°C, horizontal) |
| Typical power loss | 1 W |
| Short-circuit protection | Yes, response threshold 0.7–1.3 A |
| Output delay (resistive load) | 50 µs (0→1) / 100 µs (1→0) |
| Switching frequency | 100 Hz resistive / 2 Hz inductive / 10 Hz lamp |
| Compatible BaseUnit | BU type A0 |
| Colour code | CC00 |
| Dimensions (W × H × D) | 15 × 73 × 58 mm |
| Weight | approx. 28 g |
| Number of digital outputs | 16 |
Product Description
Each channel sources up to 0.5 A (PNP / P-switching) with electronic short-circuit protection and reverse-polarity protection. Integrated module-level diagnostics report supply-voltage, wire-break and short-circuit faults straight to the controller, and a green/red DIAG LED gives at-a-glance health status. Mounted on a BU type A0 BaseUnit with CC00 colour code, it packs 16 outputs into a 15 mm slice for space-saving distributed control. The Siemens 6ES7132-6BH00-0BA0 is a SIMATIC ET 200SP digital output module that drives 16 discrete 24 V DC actuators such as solenoid valves, contactors, indicator lamps and small relays.
Basic Product Information
- Electronic short-circuit protection (0.7–1.3 A response) with automatic auto-reset recovery
- Module diagnostics for supply voltage, wire break and short circuit, plus green/red DIAG LED
- Inductive shutdown voltage limiting to L+ (-50 V) protecting outputs when switching relays and solenoids
- 16 source (PNP) digital outputs at 24 V DC, 0.5 A per channel, 8 A total module current
Technical Specifications
Version & Model Difference
The 6ES7132-6BH00-0BA0 is the original standard (ST) 16-channel 0.5 A source-output module with firmware V1.0; it has been discontinued by Siemens and is replaced by 6ES7132-6BH01-0BA0, which is functionally equivalent and the current spare-part successor. Both fit BU type A0 and share colour code CC00. They are distinct from the high-feature (HF) output modules that add additional diagnostics and parameterization.
Application Scenarios
- Switching solenoid valves, contactors and indicator lamps in machine automation
- Distributed digital output control in assembly lines and process skids
- Space-constrained control cabinets requiring high channel density per module
- Retrofit of existing SIMATIC ET 200SP PROFINET I/O stations
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the output current rating per channel of the 6ES7132-6BH00-0BA0?
Each of the 16 channels delivers up to 0.5 A at 24 V DC (PNP source output), with a maximum of 8 A total module current at temperatures up to 40°C.
Is the module short-circuit protected?
Yes. Each output has electronic short-circuit protection triggering at 0.7–1.3 A, and the output automatically resets once the fault is cleared.
Which BaseUnit is required?
It mounts on a BU type A0 BaseUnit with colour code CC00; it is not compatible with BU type A1 or B0 BaseUnits.
What replaces the discontinued 6ES7132-6BH00-0BA0?
Siemens replaced it with 6ES7132-6BH01-0BA0, a functionally equivalent successor that fits the same BU type A0 and is recommended for new spare-part orders.
Other Siemens Models We Stock
- 1FL6034-2AF21-1AA1
- 1FL6062-1AC61-2AA1
- 1FL6066-1AC61-2LH1
- 1FL6092-1AC61-2AA1
- 1LE1002-1CB23-4AA4
- 1XP8001-11024
- 1fk7060-5af71-1ua3
- 321-1BL00
- 3AY17112E
- 3GD1132-4D
- 3KD3432-0NE10--0
- 3LD2264-1GP51
Can not find your model? Send the nameplate photo and we will match it.
Need 6ES7132-6BH00-0BA0?
Get a Quote in Minutes.
12-month warranty · No MOQ · Worldwide shipping with tracking
Request a Quote
Get the latest price, stock status and bulk order discount for 6ES7132-6BH00-0BA0. Our team replies within 30 minutes (working hours).
