Siemens Digital Input Module 6ES7131-6BH01-0BA0
6ES7131-6BH01-0BA0

Siemens

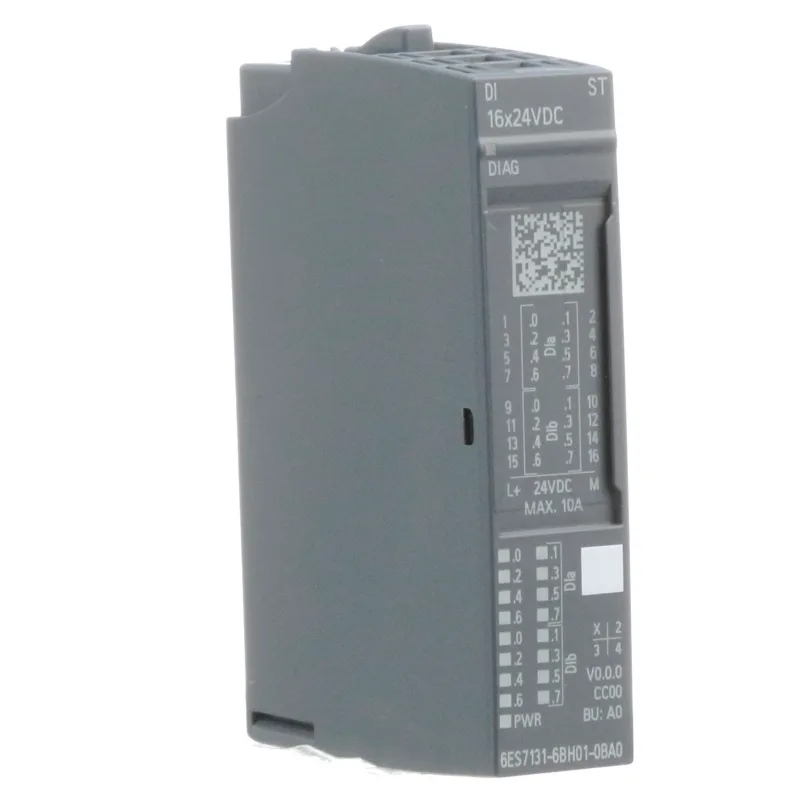

Siemens Digital Input Module 6ES7131-6BH01-0BA0
Siemens 6ES7131-6BH01-0BA0 Digital Input Module. For SIMATIC ET 200SP distributed I/O system. Supplied with full traceability and documentation. Get a quote. P…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7131-6BH01-0BA0 |
| Official Product Name | SIMATIC ET 200SP, DI 16x 24V DC ST |
| Applicable System | SIMATIC ET 200SP distributed I/O system |
| Product Type | Digital Input Module |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Input type | Sink input (PNP), IEC 61131 Type 3, P-reading |
| Rated supply voltage | 24 V DC (permissible range 19.2–28.8 V DC) |
| Input delay | 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms, parameterizable |
| Typical power loss | 1.7 W |
| Compatible BaseUnit | BU type A0 |
| Colour code | CC00 |
| Diagnostics | Wire break, supply voltage monitoring, group error |
| Max cable length | 1000 m shielded / 600 m unshielded |
| Operating temperature | -30°C to 60°C (horizontal mounting) |
| Dimensions (W × H × D) | 15 × 73 × 58 mm |
| Weight | approx. 35 g |
| Number of digital inputs | 16 |
Product Description
It uses Type 3 (IEC 61131) sink input technology with P-reading for standard PNP wiring. A parameterizable input delay from 0.05 to 20 ms lets engineers filter noisy signals, while integrated wire-break and supply-voltage diagnostics simplify fault finding. The module snaps onto a BU type A0 BaseUnit and is a staple building block for compact machine and process control panels. The Siemens 6ES7131-6BH01-0BA0 is a SIMATIC ET 200SP digital input module that acquires 16 discrete 24 V DC field signals from sensors, switches and proximity devices in distributed I/O stations.
Basic Product Information
- Parameterizable input delay from 0.05 to 20 ms for adaptive signal filtering
- Integrated wire-break and supply-voltage diagnostics with diagnostic alarm to the controller
- Compact 15 mm wide design on BU type A0 BaseUnit with CC00 colour code for high-density installation
- 16 discrete digital inputs at 24 V DC with IEC 61131 Type 3 sink input (PNP, P-reading) characteristics
Technical Specifications
Version & Model Difference
This is the standard (ST) 16-channel 24 V DC sink-input module for ET 200SP; it fits BU type A0 BaseUnits and carries colour code CC00. Earlier ET 200SP DI modules such as the 6ES7131-6BH00-0AA0 used a different colour code and packaging; this -0BA0 variant supersedes those in current catalogs. It is not directly pin-compatible with the source/sink (HF) variants (6ES7131-6BF00-0BA0) which add higher density and additional features.
Application Scenarios
- Acquisition of sensor and switch signals in ET 200SP distributed I/O stations
- High-density digital input monitoring in compact machine control cabinets
- Process status and safety-relevant signal monitoring requiring wire-break diagnostics
- Retrofit and expansion of existing SIMATIC ET 200SP PROFINET installations
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the Siemens 6ES7131-6BH01-0BA0 used for?
It is a SIMATIC ET 200SP digital input module that reads 16 discrete 24 V DC signals from field devices such as sensors and limit switches, and reports them to a PROFINET-connected controller.
Which BaseUnit does this module require?
It mounts on a BU type A0 BaseUnit (colour code CC00) and is not compatible with BU type A1 or B0 variants, which are used for different ET 200SP module families.
Does the module support wire-break diagnostics?
Yes. It monitors supply voltage and detects wire breaks per channel group, sending a diagnostic alarm to the CPU for fast troubleshooting.
What input delay settings are available?
The input delay is parameterizable in eight steps from 0.05 ms up to 20 ms, allowing filtering to be tuned to the connected sensors and switching noise.
