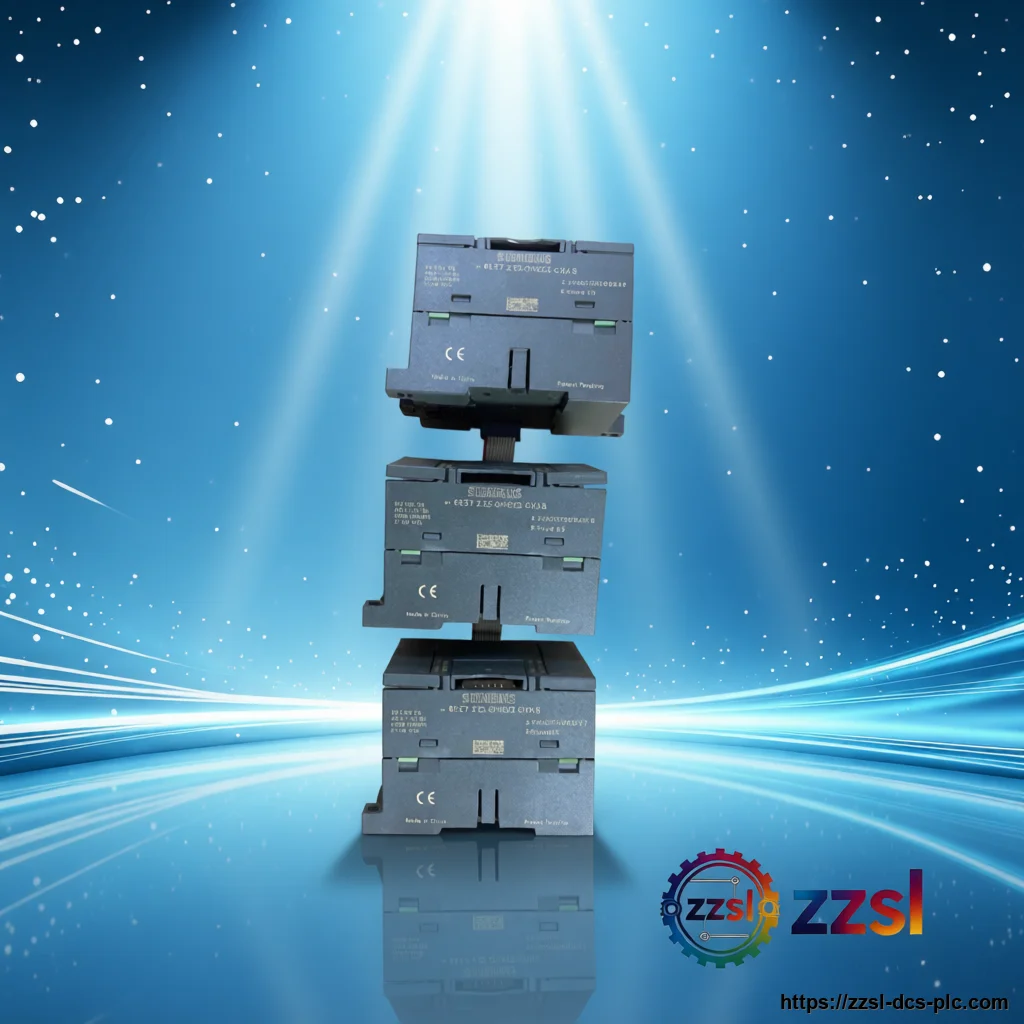

Siemens PLC analog output module 6ES7 232-0HB22-0XA8
Siemens
Siemens PLC analog output module 6ES7 232-0HB22-0XA8
Home / PLC / Siemens S7-200 / 6ES7232-0HB22-0XA8 Need Siemens 6ES7 232-0HB22-0XA8? PLC analog output module for Signal output expansion for S7-200 PLC. Supplie…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ES7232-0HB22-0XA8 |
| Official Product Name | SIMATIC S7-200 EM 232 Analog Output |
| Applicable System | Signal output expansion for S7-200 PLC |
| Product Type | PLC analog output module |
| Equivalent Standard | Contact supplier for exact specifications |
| Product Status | Active |
| Lifecycle note | Commercialized |
| Channels | 2 |
| Output range | +/-10 V or 0-20 mA |
| Resolution | 12-bit (voltage) / 11-bit (current) |
| Supply | From S7-200 bus (24 V DC) |
| Dimensions (W x H x D) | 46 mm x 80 mm x 62 mm |
| Weight | 148 g |
| Module | EM 232 analog output |
Product Description
Basic Product Information
- Selectable +/-10 V or 0-20 mA per channel
- 12-bit resolution for voltage, 11-bit for current
- Snaps onto the S7-200 expansion bus
- Two analog output channels in one module
Technical Specifications
Version & Model Difference
- ['EM 232 is the dedicated 2-channel AO module', 'EM 235 combines analog input and output', 'Confirm channel range wiring with the manual']
Application Scenarios
- Variable-speed drive setpoint
- Control valve positioning
- Recorder and indicator driving
- It is powered from the S7-200 expansion bus at 24 V DC.
