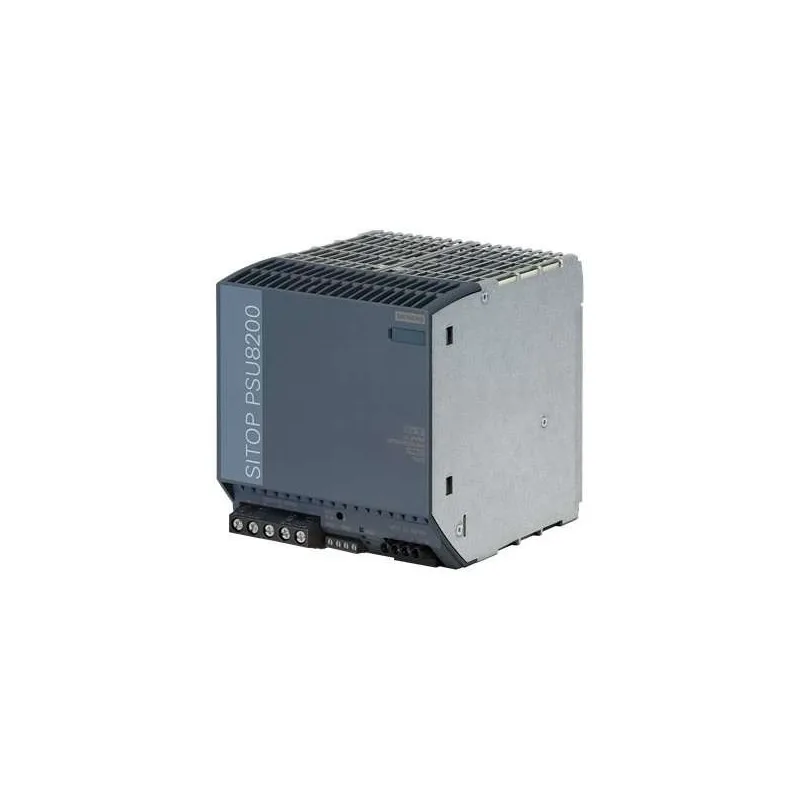

Siemens Industrial switch-mode power 6EP3437-8SB00-0AY0
6EP3437-8SB00-0AY0

Siemens
Siemens Industrial switch-mode power 6EP3437-8SB00-0AY0
Siemens 6EP3437-8SB00-0AY0 Industrial switch-mode power supply. For SITOP 24 V DC power distribution, SIMATIC automation systems. Worldwide shipping from stock.…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6EP3437-8SB00-0AY0 |
| Official Product Name | SITOP PSU8200 24 V/40 A stabilized power supply |
| Applicable System | SITOP 24 V DC power distribution, SIMATIC automation systems |
| Product Type | Industrial switch-mode power supply (DIN-rail, 3-phase) |
| Equivalent Standard | N/A (UL/cULus, cCSAus, ABS, DNV GL approved) |
| Product Status | In Stock |
| Rated Input Voltage | 400-500 V AC |
| Wide-range Input | 320-575 V AC |
| Line Frequency | 50/60 Hz (45-65 Hz) |
| Output Voltage | 24 V DC (adjustable 24-28 V via potentiometer) |
| Output Current | 40 A |
| Efficiency | up to 94% |
| Power Loss (typical, rated) | approx. 66 W |
| Mains Buffering Time | min. 10 ms at Vin = 400 V |
| Input Current at 400 V | 2.1 A |
| Overvoltage Protection | < 31.8 V |
| Overload Capability | 150% rated current for 5 s/min |
| Short-circuit Protection | Yes (constant current approx. 44 A or latching shutdown) |
| Degree of Protection | IP20 |
| Certifications | CE, UL/cULus, cCSAus, ABS, DNV GL |
| Country of Origin | Germany |
| Input Type | 3-phase AC |
Product Description
Siemens 6EP3437-8SB00-0AY0 Industrial switch-mode power supply. For SITOP 24 V DC power distribution, SIMATIC automation systems. Worldwide shipping from stock.
Its wide-range input accepts 320-575 V AC, so it tolerates large mains fluctuations and suits almost any three-phase supply network worldwide. Efficiency reaches up to 94% and the unit is certified to cULus, cCSAus, ABS and DNV GL. It is a technology power supply for demanding automation loads and can be combined with SITOP buffer, DC UPS, redundancy and selectivity modules to raise 24 V availability. The 6EP3437-8SB00-0AY0 is a 3-phase SITOP PSU8200 stabilized DIN-rail power supply delivering 24 V DC at 40 A.
Basic Product Information
- Wide-range 3 AC input 320-575 V AC tolerates large mains fluctuations worldwide
- High efficiency up to 94% with low power loss
- cULus, cCSAus, ABS and DNV GL certified for industrial and marine use
- Can be combined with SITOP buffer, DC UPS, redundancy and selectivity modules
- 3-phase, 24 V DC / 40 A stabilized output for high-current automation loads
Technical Specifications
Version & Model Difference
The 6EP3437-8SB00-0AY0 is the 24 V/40 A member of the 3-phase SITOP PSU8200 family; the 6EP3436-8SB00-0AY0 is the 24 V/20 A version. Both share the 320-575 V AC wide-range input and 24 V DC output and differ mainly in rated output current (40 A versus 20 A).
Application Scenarios
- 24 V DC supply for SIMATIC S7 control cabinets and I/O
- Machinery and plant automation on a three-phase supply
- Process and marine installations requiring DNV GL or ABS certification
- Redundant 24 V supply architectures in power distribution and infrastructure
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the output rating?
24 V DC at 40 A rated, adjustable from 24 to 28 V DC by a front potentiometer.
What input does it need?
A 3-phase AC supply rated 400-500 V AC, with wide-range tolerance of 320-575 V AC at 45-65 Hz.
Does it have built-in fusing?
There is no built-in incoming fuse; Siemens requires a 3-pole connected miniature circuit breaker (10-16 A, characteristic C) or an equivalent circuit breaker in the feeder.
Can it be used in a redundant supply?
Yes. Combine it with SITOP redundancy modules to build a 1+1 redundant 24 V DC supply.
