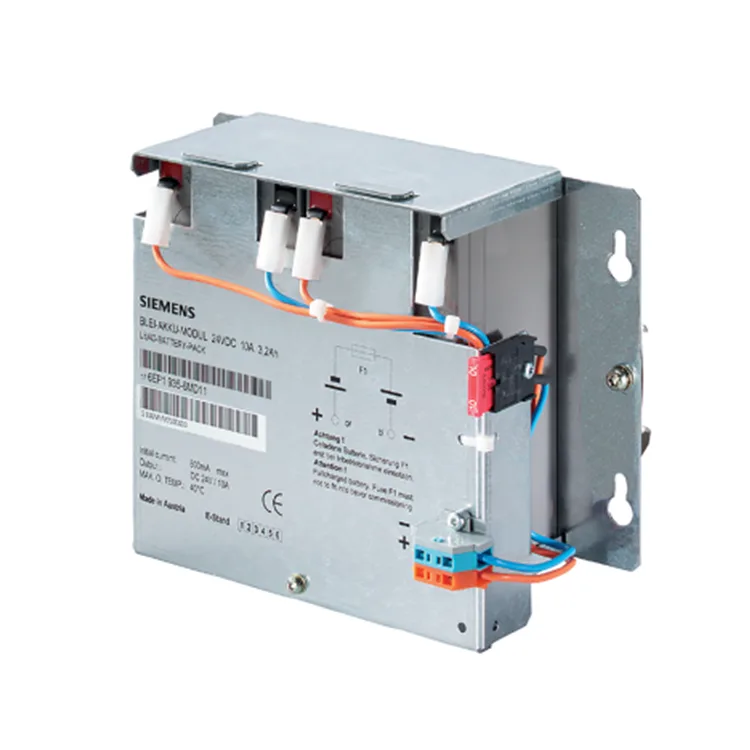

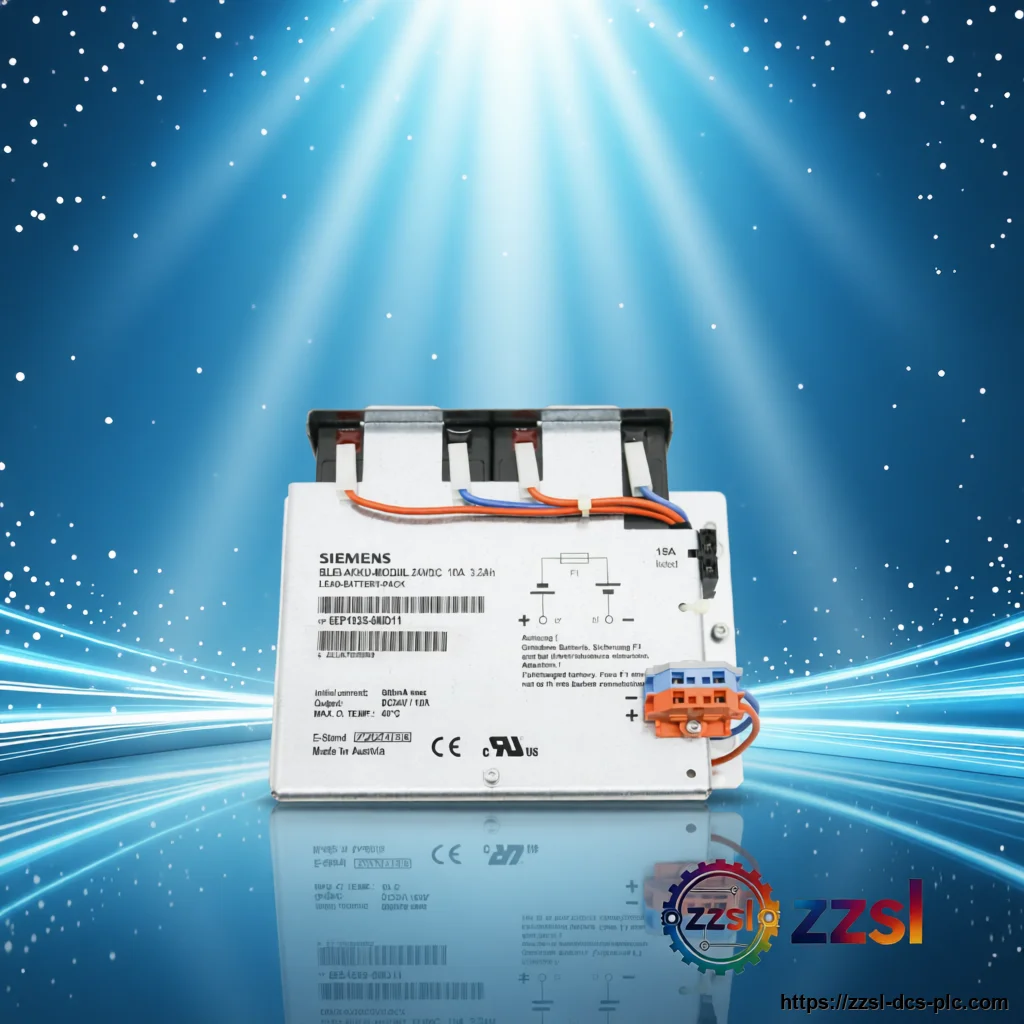

Siemens DC UPS Battery Module 6EP1935-6MD11
6EP1935-6MD11

Siemens
Siemens DC UPS Battery Module 6EP1935-6MD11
Siemens 6EP1935-6MD11 DC UPS Battery Module. For SITOP DC UPS 6 A and 15 A uninterruptible power supply. Supplied with full traceability and documentation. Pri…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6EP1935-6MD11 |
| Official Product Name | SITOP Battery Module 24 V / 3.2 Ah |
| Applicable System | SITOP DC UPS 6 A and 15 A uninterruptible power supply |
| Product Type | DC UPS Battery Module (Backup Battery) |
| Equivalent Standard | Cross-references to SITOP DC UPS battery modules on request |
| Product Status | In Stock |
| Battery Technology | Maintenance-free sealed lead-acid (VRLA) |
| Rated Output Voltage | 24 V DC |
| Battery Capacity | 3.2 Ah |
| Number of Cells | 12 |
| Buffering Output Current (max.) | 9.6 A continuous |
| Peak Current | 15 A short-term |
| Maximum Charging Current | 0.8 A |
| End-of-Charge Voltage | 26.3 V to 29 V DC (temperature-dependent) |
| Short-Circuit Protection | Battery fuse 15 A / 32 V |
| Compatible UPS Modules | SITOP DC UPS 6 A and 15 A |
| Protection Class | Class III, IP00 |
| Dimensions (W x H x D) | 190 x 151 x 82 mm |
| Net Weight | 3.2 kg |
| Ambient Operating Temperature | -15 to +50 deg C |
| Mounting Method | DIN rail EN 60715 35 x 7.5 / 15 or wall mounting |
| Approvals | CE, cURus (UL 1778, CSA C22.2 No. 107.1), EAC, marine (ABS, DNV) |
| Product Type | SITOP DC UPS battery module |
Product Description
Siemens 6EP1935-6MD11 DC UPS Battery Module. For SITOP DC UPS 6 A and 15 A uninterruptible power supply. Supplied with full traceability and documentation.
It uses twelve maintenance-free sealed lead-acid (VRLA) cells, provides up to 9.6 A continuous buffering current with short-term peaks to 15 A, and charges at a maximum of 0.8 A with temperature-compensated end-of-charge voltage. A built-in 15 A / 32 V battery fuse protects against short circuit, and the enclosure snaps onto a 35 mm DIN rail or mounts on a wall for compact control-cabinet installation. The module is a genuine Siemens spare for existing DC UPS installations rather than a mains power supply itself. The 6EP1935-6MD11 is a 24 V / 3.2 Ah battery module from the Siemens SITOP DC UPS family, used with the SITOP DC UPS 6 A and 15 A modules to bridge mains failures without interrupting the 24 V DC supply.
Basic Product Information
- Designed specifically for the SITOP DC UPS 6 A and 15 A modules
- Up to 9.6 A continuous buffering current and 15 A short-term peak current
- 0.8 A maximum charging current with temperature-compensated end-of-charge voltage
- Integrated 15 A / 32 V battery fuse for short-circuit protection
- Snaps onto 35 mm DIN rail (EN 60715) or wall mounting for flexible cabinet layout
- CE, cURus (UL 1778) and EAC approvals with marine classification (ABS, DNV)
- Maintenance-free sealed lead-acid (VRLA) battery, 24 V DC with 3.2 Ah capacity
Technical Specifications
Version & Model Difference
Within the SITOP DC UPS battery range, the 6EP1935-6MD11 is the 3.2 Ah / 24 V unit intended for the SITOP DC UPS 6 A and 15 A modules; other order numbers in the series provide 1.2 Ah, 7 Ah, 12 Ah and high-temperature 2.5 Ah capacities and must be matched to the UPS rating and required buffer time. It is a battery module that pairs with a SITOP power supply and DC UPS module, not a standalone power supply. Siemens has announced a phase-out of this article, so the unit is supplied as an in-stock spare and the correct capacity must be confirmed when replacing an existing battery.
Application Scenarios
- Buffering 24 V DC supply for PLC CPUs, I/O and communication modules during mains failures
- Ride-through and safe shutdown of control systems in machine tool and textile plants
- Backup supply for 24 V industrial PCs and process control installations
- Marine and industrial automation systems requiring certified DC UPS backup
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What SITOP modules is the 6EP1935-6MD11 compatible with?
It is designed for the Siemens SITOP DC UPS 6 A and 15 A modules, where it supplies the backup energy for buffering the 24 V DC output during mains failure.
Is this a power supply or a battery module?
It is a battery module. It provides the energy storage for a SITOP DC UPS system and must be combined with a SITOP power supply and the DC UPS module to form a complete uninterruptible supply.
How much backup current can it deliver?
The module supplies up to 9.6 A of continuous buffering current with short-term peaks up to 15 A, and is charged at a maximum of 0.8 A with temperature-compensated voltage.
How is the module mounted and connected?
It snaps onto a standard 35 mm DIN rail (EN 60715) or can be wall mounted, and connects to the DC UPS module through spring-loaded terminals for the +BAT and -BAT conductors.
