6EP1334-3BA10

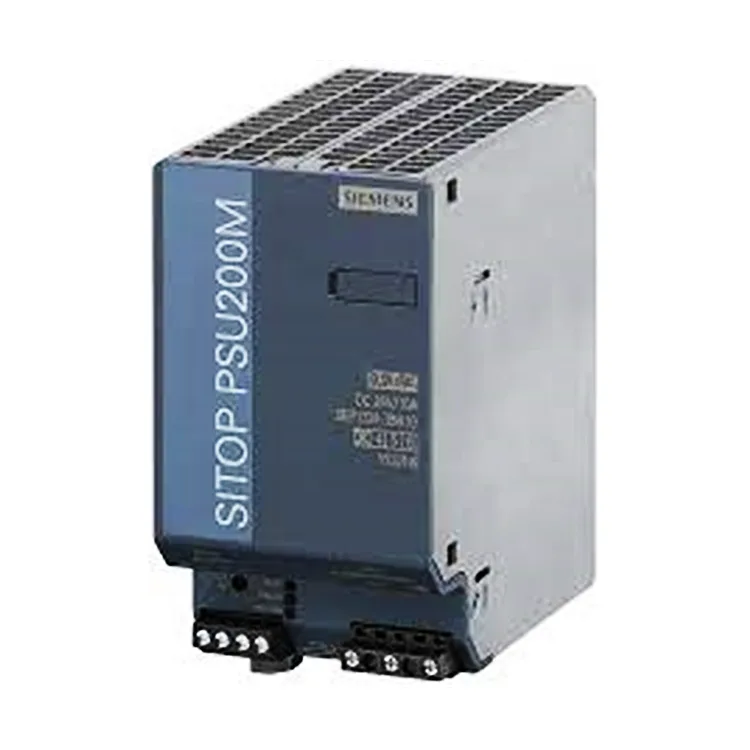

Siemens Stabilised Switch-Mode Power Supply 6EP1334-3BA10
Siemens
Siemens Stabilised Switch-Mode Power Supply 6EP1334-3BA10
['Home', 'Siemens', 'SITOP Power Supplies', '6EP1334-3BA10'] Need Siemens 6EP1334-3BA10? Stabilised Switch-Mode Power S…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6EP1334-3BA10 |
| Official Product Name | SITOP PSU200M 24 V / 10 A Stabilised Power Supply |
| Applicable System | 24 V DC control and automation power distribution |
| Product Type | Stabilised Switch-Mode Power Supply |
| Equivalent Standard | EN 60950-1, IEC 60950 |
| Product Status | Active |
| Output current | 10 A |
| Output power | 240 W |
| Input voltage | 120/230 to 500 V AC (1- or 2-phase) |
| Input frequency | 47 to 63 Hz |
| Efficiency | 91 % |
| Dimensions (W x H x D) | 70 x 125 x 121 mm |
| Weight | 0.800 kg |
| Protection degree | IP20 |
| Approvals | CE, UL (cULus), EAC, CB, RCM, ABS, DNV |
| Output voltage | 24 V DC (adjustable 24 to 28.8 V) |
Product Description
It accepts a wide 1- or 2-phase AC input from 120 to 500 V and provides adjustable 24 to 28.8 V output with 91% efficiency, LED status indication, relay fault signalling and full industrial/marine approvals. It is the dependable backbone of 24 V control systems in global facilities. The Siemens 6EP1334-3BA10 is a SITOP PSU200M stabilised power supply delivering 24 V DC at 10 A (240 W).
Basic Product Information
- Wide 1- or 2-phase AC input 120 to 500 V with active input selection
- High 91% efficiency with automatic current limiting and latching short-circuit shutdown
- LED status and relay fault signalling; certified for industrial and marine use (ABS, DNV)
- 24 V DC output at 10 A (240 W) with adjustable 24 to 28.8 V via potentiometer
Technical Specifications
Version & Model Difference
['The 6EP1334-3BA10 is the PSU200M 10 A variant; the SITOP PSU200M family also offers other current ratings, and the related PSU100M/PSU300M lines cover different power classes. Note the current version is supplied without the former Ex approval.']
Application Scenarios
- 24 V DC control systems in industrial automation and machine building
- Global facilities needing wide-range 120 to 500 V AC input compatibility
- Marine and offshore installations (ABS, DNV approved)
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What output does the 6EP1334-3BA10 provide?
It supplies a stabilized 24 V DC output at 10 A (240 W), adjustable from 24 to 28.8 V via a front potentiometer.
What input voltage range is supported?
It accepts 1- or 2-phase AC input from 120 to 500 V (85 to 264 V or 176 to 550 V depending on selection), 47 to 63 Hz.
Is it certified for marine use?
Yes. It carries marine approvals including ABS and DNV in addition to CE, UL and others.
How do I order the 6EP1334-3BA10?
Contact our industrial parts team for pricing, stock and worldwide delivery.
