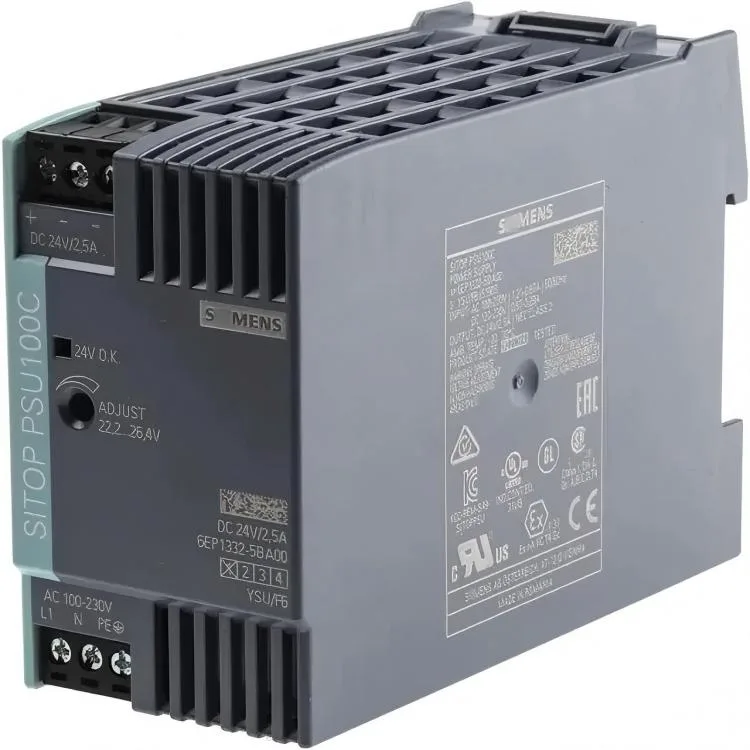

Siemens DIN-rail primary-switched power supply 6EP1332-5BA00
6EP1332-5BA00

Siemens
Siemens DIN-rail primary-switched power supply 6EP1332-5BA00
Siemens 6EP1332-5BA00 DIN-rail primary-switched power supply. For Single-phase AC or DC supply networks feeding 24 V DC automation loads. Request a quote today.…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6EP1332-5BA00 |
| Official Product Name | Siemens SITOP PSU100C 24 V/2.5 A Stabilized Power Supply |
| Applicable System | Single-phase AC or DC supply networks feeding 24 V DC automation loads (PLC, sensors, HMI) |
| Product Type | DIN-rail primary-switched power supply |
| Equivalent Standard | EN 60950-1 / IEC 60950-1; approved to CE, cULus, CB, ATEX and GL |
| Product Status | In Stock |
| Output current | 2.5 A |
| Output power | 60 W |
| Output voltage adjustment range | approx. 22.2-26.4 V |
| Input voltage | 85-264 V AC / 110-300 V DC |
| Input frequency | 47-63 Hz |
| Efficiency | approx. 87% |
| Ripple and noise | 200 mV peak-to-peak |
| Mounting | DIN rail (EN 60715) |
| Degree of protection | IP20 |
| Dimensions (W x H x D) | 45 x 80 x 100 mm |
| Weight | approx. 0.22 kg |
| Operating temperature | -20 to +70 C (derating above +55 C) |
| Approvals | CE, cULus, CB, ATEX, GL |
| Output voltage | 24 V DC (stabilized) |
Product Description
Its wide-range input accepts 85-264 V AC or 110-300 V DC, so it can be connected to almost any single-phase network without voltage selection. The primary-switched design keeps losses low even at no load and standby, which suits distributed control boxes that spend time idling. It is short-circuit proof and provides overload and over-temperature protection with automatic recovery, and its output can be adjusted between roughly 22.2 V and 26.4 V. A green LED indicates that the output voltage is OK. The Siemens SITOP PSU100C 6EP1332-5BA00 is a slim, single-phase DIN-rail switching power supply that delivers a stabilized 24 V DC output at 2.5 A (60 W).
Basic Product Information
- Wide-range single-phase input of 85-264 V AC or 110-300 V DC with no voltage selection
- Adjustable output voltage range of approximately 22.2-26.4 V for line-drop compensation
- Short-circuit, overload and over-temperature protection with automatic recovery
- Slim DIN-rail housing with plug-in screw terminals for fast, tool-friendly wiring
- Low no-load and standby losses with roughly 87% efficiency across the load range
- Stabilized 24 V DC / 2.5 A output (60 W) for relays, sensors, PLC I/O and HMI loads
Technical Specifications
Version & Model Difference
The 6EP1332-5BA00 is the SITOP PSU100C 24 V/2.5 A member of the SITOP compact family. Sibling PSU100C units cover 12 V and higher 24 V currents in the same slim format, while the higher-power SITOP PSU100S range such as 6EP1333-2BA20 offers 24 V/5 A and above in a larger housing. When replacing a unit, confirm the required output current and the terminal layout, because PSU100C and PSU100S versions differ in footprint and wiring.
Application Scenarios
- Compact control boxes and small control cabinets in machine building
- Distributed 24 V DC supply for sensors, relays and signal lamps
- Power supply for PLC I/O modules, HMI panels and measurement transmitters
- Building automation and general industrial electronics mounted on DIN rail
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the output rating of the Siemens 6EP1332-5BA00?
It provides a stabilized 24 V DC output at 2.5 A, giving 60 W of output power.
What input voltage does this SITOP PSU100C accept?
It has a wide-range input of 85-264 V AC or 110-300 V DC at 47-63 Hz, so no input voltage selection is needed.
Is the output voltage adjustable?
Yes, the output can be adjusted between approximately 22.2 V and 26.4 V to compensate for cable voltage drop.
What protection features are included?
The unit is short-circuit proof and provides overload and over-temperature protection with automatic recovery.
