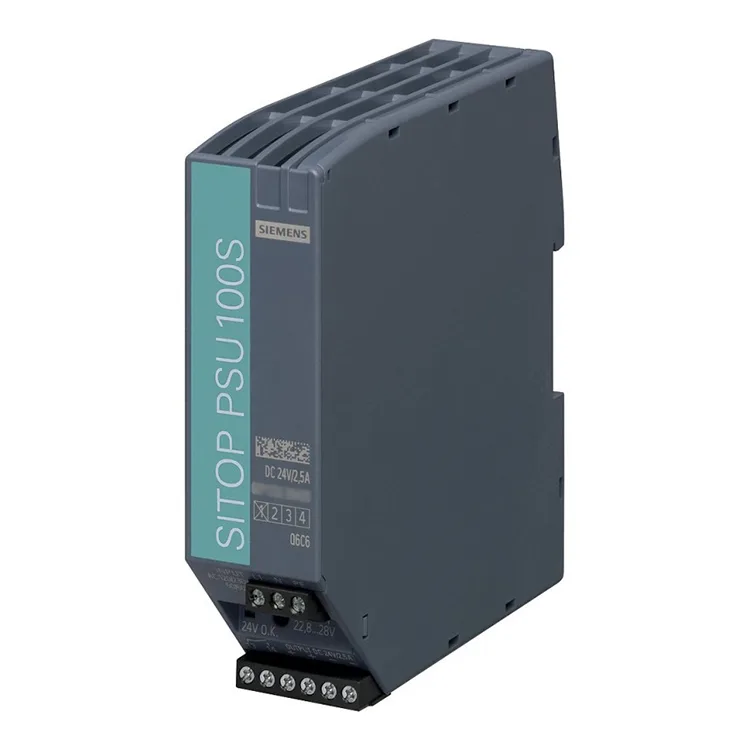

Siemens Primary-switched DIN rail power supply 6EP1332-2BA20
6EP1332-2BA20

Siemens
Siemens Primary-switched DIN rail power supply 6EP1332-2BA20
Siemens 6EP1332-2BA20 Primary-switched DIN rail power supply. For Industrial automation, PLC/HMI and control-panel 24 V DC supplies. Request a quote today. Pri…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6EP1332-2BA20 |
| Official Product Name | SITOP PSU100S 24 V DC 2.5 A Stabilized Power Supply |
| Applicable System | Industrial automation, PLC/HMI and control-panel 24 V DC supplies |
| Product Type | Primary-switched DIN rail power supply |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Output Voltage | 24 V DC (adjustable 22.8–28 V DC) |
| Output Current | 2.5 A |
| Rated Power | 60 W |
| Efficiency | ≈85 % at full load |
| Power Boost | up to 3× Irated |
| Mains Buffering | >20 ms |
| Degree of Protection | IP20 |
| Operating Temperature | –25 to 70 °C |
| Dimensions (W×H×D) | 32.5 × 125 × 120 mm |
| Weight | ≈0.32 kg |
| Approvals | CE, UL, cUL, EAC (RoHS) |
| Input Voltage | 85–132 V AC / 170–264 V AC (120/230 V nominal) |
Product Description
It accepts a wide-range single-phase input of 85–132 V / 170–264 V AC (120/230 V nominal) and reaches about 85 % efficiency at full load. A POWER BOOST function briefly supplies up to three times the rated current to start heavy inrush loads, and a green 24 V OK LED with a relay signaling contact supports remote fault monitoring. At just 32.5 mm wide, it is one of the most compact modules in its power class for high-density control cabinets. The Siemens 6EP1332-2BA20 is a SITOP PSU100S primary-switched DIN rail power supply that delivers a stabilized 24 V DC output at 2.5 A (60 W).
Basic Product Information
- Wide-range single-phase input 85–132 / 170–264 V AC with automatic range switching
- POWER BOOST: up to 3× rated current briefly for inrush loads
- Green 24 V OK LED plus floating relay contact for remote signaling
- Compact 32.5 mm width, IP20, short-circuit/overload/overvoltage protection, DIN rail NS 35
- Primary-switched 24 V DC, 2.5 A (60 W) stabilized output
Technical Specifications
Version & Model Difference
The 6EP1332-2BA20 (PSU100S, 60 W) sits below the 6EP1333-2BAxx (120 W) and above LOGO!Power in the SITOP range; higher-current single-phase units such as 6EP1334-2BA00 (10 A) share the same narrow DIN-rail form factor. It is not a direct drop-in for the wider PSU200M/modular 6EP1334-3BA00 which uses a different housing.
Application Scenarios
- 24 V DC supply for SIMATIC S7 PLCs, HMIs and distributed I/O
- Machine-building and packaging equipment control power
- Automated warehouses and process-panel auxiliary supply
- Building automation and signaling-device power
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What input voltage does the 6EP1332-2BA20 accept?
It accepts single-phase 120/230 V AC with automatic ranges of 85–132 V and 170–264 V AC, covering global mains without a selector.
What output does it provide?
A stabilized 24 V DC output at 2.5 A (60 W), adjustable from 22.8 to 28 V DC via the front potentiometer.
Does it support parallel or redundant operation?
Up to two units may be connected in parallel for increased output; for N+1 redundancy use a SITOP redundancy module.
How is normal operation indicated?
A green LED shows 24 V OK, and a normally-open relay contact is available for remote status signaling to a PLC.
