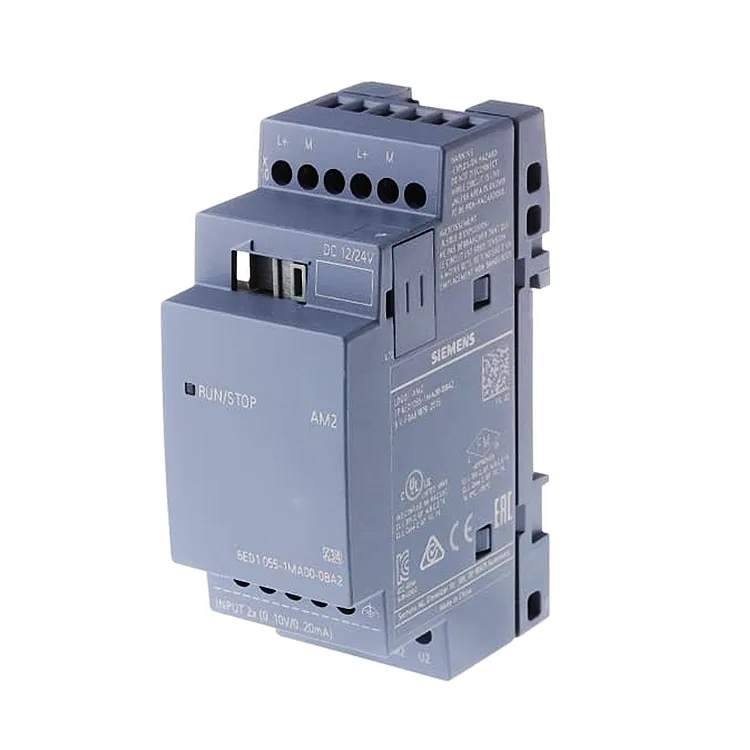

Siemens Analog Expansion Module 6ED1055-1MA00-0BA2
Siemens
Siemens Analog Expansion Module 6ED1055-1MA00-0BA2
['Home', 'Siemens', '6ED1055-1MA00-0BA2'] Need Siemens 6ED1055-1MA00-0BA2? Analog Expansion Module for LOGO! 8 Expansion Systems.…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ED1055-1MA00-0BA2 |
| Official Product Name | 6ED1055-1MA00-0BA2 |
| Applicable System | LOGO! 8 Expansion Systems |
| Product Type | Analog Expansion Module |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Supply Voltage | DC 12/24 V (10.8-28.8 V) |
| Analog Inputs | 2 (0-10 V or 0/4-20 mA) |
| Resolution | 10 bit |
| Current Consumption | typ. 30 mA |
| Mounting Width | 2 MW (approx 35.5 mm) |
| Dimensions (W x H x D) | 35.5 x 90 x 58 mm |
| Protection | IP20 |
| Operating Temperature | 0 to 55 deg C |
| Net Weight | 0.132 kg |
| Country of Origin | China |
| Product Type | LOGO! AM2 analog expansion module |
Product Description
AM2 analog expansion module for LOGO! 8. It provides 2 analog inputs accepting 0-10 V or 0/4-20 mA signals with 10-bit resolution, powered by 12/24 V DC, enabling analog measurement and control in compact automation systems. The 6ED1055-1MA00-0BA2 is a Siemens LOGO!
Basic Product Information
- 12/24 V DC supply, typical current consumption 30 mA
- DIN-rail mounting, width 2 modules (35.5 mm)
- IP20 protection, 0 to 55 deg C operating range
- 2 analog inputs, 0-10 V or 0/4-20 mA, 10-bit resolution
Technical Specifications
Version & Model Difference
Application Scenarios
- Analog signal acquisition (pressure, level, temperature transmitters)
- Building and process automation with analog control
- Small-scale measurement and monitoring
- It mounts on a 35 mm DIN rail, 2 modules wide (35.5 mm), with dimensions 35.5 x 90 x 58 mm and IP20 protection.
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What signal types does it accept?
It accepts 0-10 V voltage or 0/4-20 mA current signals on its two analog inputs, with 10-bit resolution.
What supply voltage is needed?
It is powered by 12/24 V DC (10.8-28.8 V) with a typical current consumption of 30 mA.
How many analog inputs are provided?
It provides 2 analog inputs for LOGO! 8 systems.
How is it mounted?
It mounts on a 35 mm DIN rail, 2 modules wide (35.5 mm), with dimensions 35.5 x 90 x 58 mm and IP20 protection.
