6ED1055-1FB00-0BA2

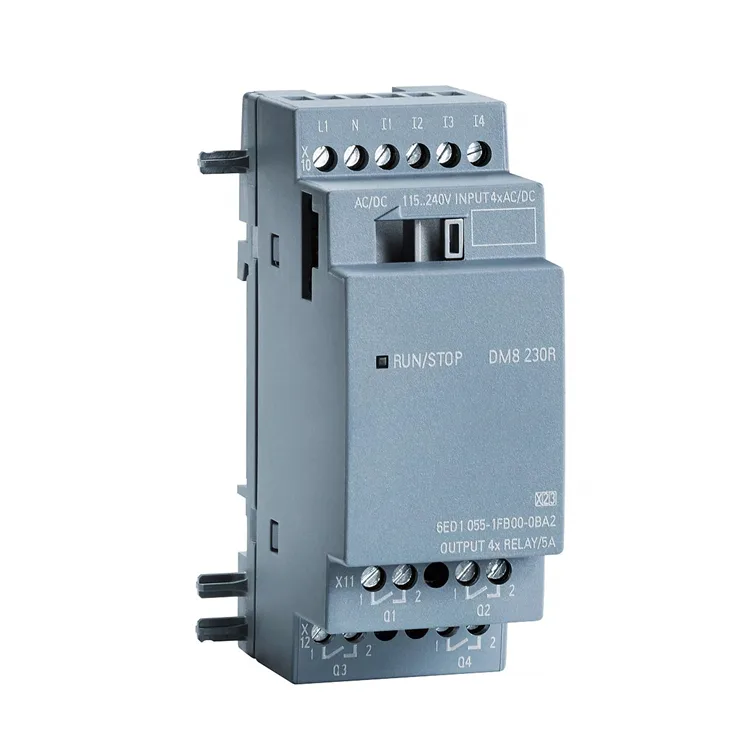

Siemens Digital Expansion Module 6ED1055-1FB00-0BA2
Siemens
Siemens Digital Expansion Module 6ED1055-1FB00-0BA2
['Home', 'Siemens', '6ED1055-1FB00-0BA2'] Need Siemens 6ED1055-1FB00-0BA2? Digital Expansion Module for LOGO! 8 Expansion Systems…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6ED1055-1FB00-0BA2 |
| Official Product Name | 6ED1055-1FB00-0BA2 |
| Applicable System | LOGO! 8 Expansion Systems |
| Product Type | Digital Expansion Module |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Supply Voltage | 115 to 240 V AC/DC |
| Digital Inputs | 4 |
| Digital Outputs | 4 (relay) |
| Relay Current | 5.0 A resistive / 3.0 A inductive |
| Mounting | DIN rail, screw terminals |
| Dimensions (W x H x D) | 35.5 x 90 x 58 mm |
| Operating Temperature | 0 to 55 deg C |
| Country of Origin | China |
| Product Type | LOGO! 8 digital expansion module (DM8 230R) |
Product Description
8 digital expansion module (DM8 230R). It adds 4 digital inputs and 4 relay outputs with a 115-240 V AC/DC supply, screw terminals and DIN-rail mounting, extending the I/O capacity of LOGO! 8 basic units for small automation tasks. The 6ED1055-1FB00-0BA2 is a Siemens LOGO!
Basic Product Information
- 115-240 V AC/DC supply voltage
- Relay outputs rated 5 A resistive / 3 A inductive
- DIN-rail mounting, screw terminals, compact 35.5 x 90 x 58 mm
- 4 digital inputs and 4 relay outputs expansion for LOGO! 8
Technical Specifications
Version & Model Difference
Application Scenarios
- Extending I/O in small machine automation
- Building and HVAC control panels
- Pump and lighting control systems
- It mounts on a 35 mm DIN rail using screw terminals, with dimensions 35.5 x 90 x 58 mm.
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What does this module add?
It adds 4 digital inputs and 4 relay outputs to a LOGO! 8 basic unit.
What supply voltage is required?
It operates on 115 to 240 V AC/DC.
How are outputs rated?
Relay outputs are rated 5.0 A for resistive loads and 3.0 A for inductive loads; external fusing is required.
How is it mounted?
It mounts on a 35 mm DIN rail using screw terminals, with dimensions 35.5 x 90 x 58 mm.
