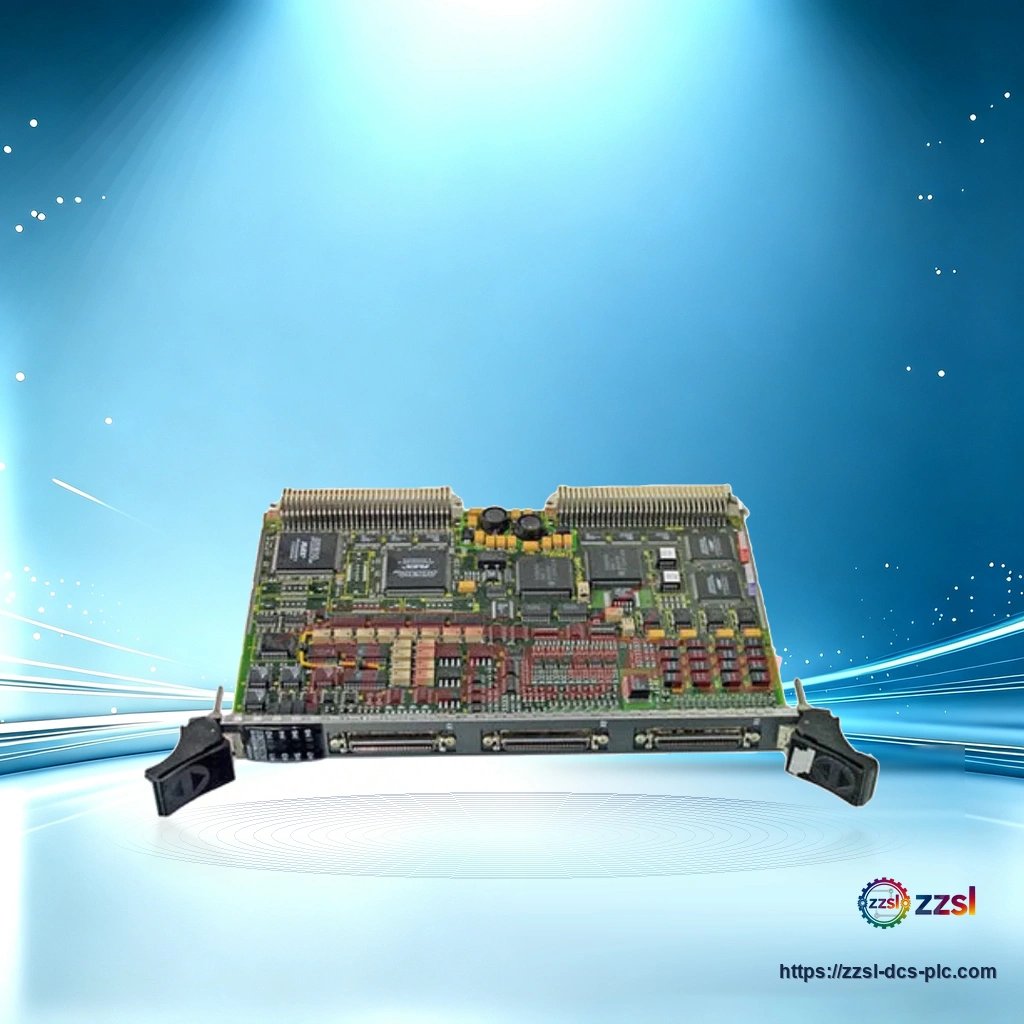

Siemens Signal processing I 6DD1640-0AH0
6DD1640-0AH0
Siemens
Siemens Signal processing I 6DD1640-0AH0
Home / Spare Parts / I/O Modules / Siemens / 6DD1640-0AH0 Need Siemens 6DD1640-0AH0? Signal processing I for SIMATIC TDC automation system. Supplied with full …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6DD1640-0AH0 |
| Official Product Name | SIMATIC TDC SM500 signal processing module |
| Applicable System | SIMATIC TDC automation system |
| Product Type | Signal processing I/O module |
| Equivalent Standard | cross-reference available on request |
| Product Status | Mature |
| Lifecycle note | Available (legacy Siemens TDC spare part) |
| Analog inputs | 8 AI |
| Analog outputs | 8 AO |
| Digital inputs | 16 DI |
| Digital outputs | 16 DO |
| Encoder interfaces | 4 incremental + 4 absolute encoders |
| Weight | approx. 0.7 kg |
| Dimensions | available upon request |
| System | SIMATIC TDC |
Product Description
Basic Product Information
- 16 digital inputs and 16 digital outputs.
- Encoder interfaces for 4 incremental and 4 absolute encoders.
- Genuine Siemens TDC SM500 signal module, about 0.7 kg.
- 8 analog inputs and 8 analog outputs.
Technical Specifications
Version & Model Difference
- Confirm the SM500 (6DD1640-0AH0) matches your TDC rack and I/O count; other SM variants offer different channel mixes.
Application Scenarios
- Signal conditioning and I/O in TDC drive systems.
- Process automation with encoder feedback in legacy plants.
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What I/O does the SM500 provide?
8 AI, 8 AO, 16 DI and 16 DO, plus encoder interfaces.
How many encoders can it handle?
4 incremental and 4 absolute encoders.
What system uses it?
The SIMATIC TDC automation system.
What does it weigh?
About 0.7 kg.
