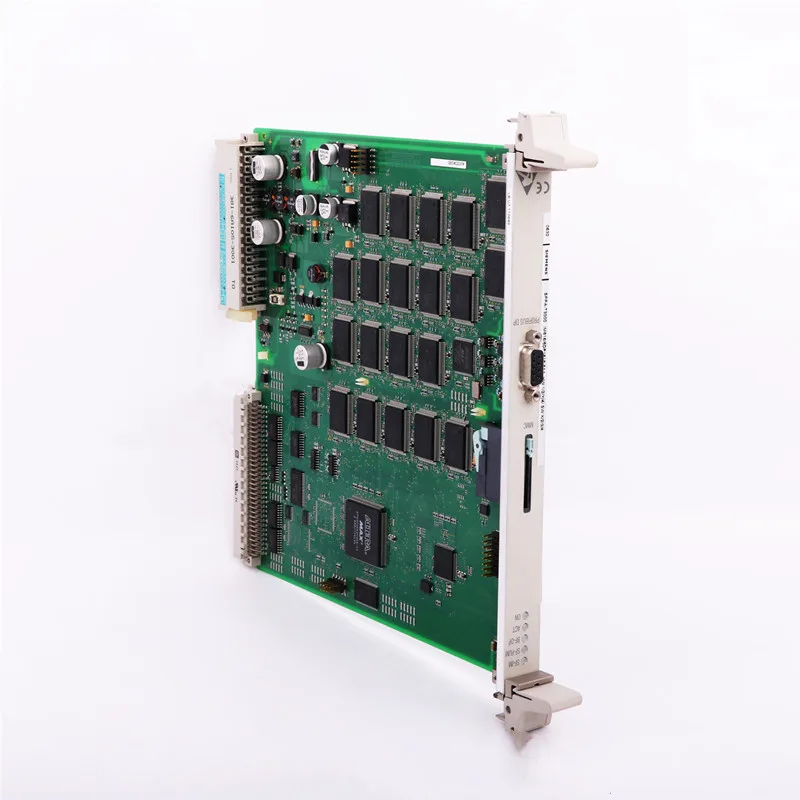

Siemens Processor 6DD1600-0BA3
Siemens 6DD1600-0BA3 Processor. For SIMATIC TDC / SIMADYN D. Supplied with full traceability and documentation. Request a quote and current availability today. …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6DD1600-0BA3 |
| Official Product Name | SIMATIC TDC CPU551 64-bit processor module with digital inputs |
| Applicable System | SIMATIC TDC / SIMADYN D (UR5213 rack) |
| Product Type | Processor / CPU module |
| Equivalent Standard | D7-SYS engineering (CFC/SFC); STEP 7 hardware configuration |
| Product Status | In Stock |
| Processor | 64-bit RISC CPU with floating-point unit |
| Clock frequency | 266 MHz |
| SDRAM | 32 Mbyte |
| Synchronous cache | 2 Mbyte |
| Battery-buffered SRAM | 256 Kbyte |
| Minimum sampling time | 100 us |
| Digital inputs | 8 (4 interrupt-capable) |
| Display | 5x7 LED display element |
| Service interface | Serial RS-232 (V.24) |
| Memory module slot | MC5xx program memory module |
| Power loss (typical) | 13 W |
| Dimensions (W x H x D) | 20 x 233 x 160 mm |
| Product lifecycle | Phase-out / product cancellation since 2020 |
| Country of origin | Germany |
| Product type designation | CPU 551 |
Product Description
Built around a 64-bit RISC CPU with a floating-point unit clocked at 266 MHz, it is designed for hard-real-time closed-loop control and motion tasks, with sampling times starting from 100 us. The module carries 32 MB of SDRAM, a 2 MB synchronous cache and 256 KB of battery-buffered SRAM, and includes 8 digital inputs (4 interrupt-capable), a serial RS-232 service interface and a slot for an MC5xx program memory module. Several CPU551 modules can be synchronised inside a TDC rack over the GDM fibre-optic memory network, making the platform suitable for rolling-mill drives, HVDC and other large synchronous processes. It is programmed graphically with CFC/SFC in the D7-SYS engineering tool. The Siemens 6DD1600-0BA3 is a CPU551 64-bit processor module for the SIMATIC TDC (formerly SIMADYN D) high-performance control platform.
Basic Product Information
- 32 MB SDRAM, 2 MB synchronous cache and 256 KB battery-buffered SRAM
- Sampling times from 100 us for hard-real-time closed-loop control
- 8 digital inputs, 4 of which are interrupt-capable
- Serial RS-232 (V.24) service interface and slot for an MC5xx program memory module
- Synchronises with other CPUs over the GDM fibre-optic memory network and offers roughly three times the arithmetic performance of the PM6 module
- 64-bit RISC CPU with floating-point unit, 266 MHz clock
Technical Specifications
Version & Model Difference
The 6DD1600-0BA3 is the CPU551 processor module; other 6DD1600 order numbers cover different CPU551 releases and memory/interface variants. TDC system performance is scaled by installing additional CPU551 modules in the same UR5213 rack rather than by changing a single CPU. Confirm the exact revision and the MC5xx memory module that matches your existing program before ordering.
Application Scenarios
- Rolling-mill tension and thickness control in steel plants
- HVDC transmission and power-electronics control
- High-speed paper-machine and printing-line synchronous drives
- Port cranes and multi-axis high-dynamic motion control
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What kind of controller is the 6DD1600-0BA3?
It is a CPU551 processor module for the Siemens SIMATIC TDC (formerly SIMADYN D) high-performance platform, not a standard SIMATIC S7 PLC.
What is the minimum task cycle time of the CPU551?
The module supports sampling times from 100 us, which makes it suitable for hard-real-time closed-loop and motion-control tasks.
How is the CPU551 program stored and downloaded?
It uses an MC5xx program memory module and is engineered with the D7-SYS tool using CFC/SFC graphical configuration, with hardware set up in STEP 7.
Can several CPU551 modules run together?
Yes. Multiple CPU551 modules can be installed in one TDC rack and synchronised over the GDM fibre-optic memory network to scale performance.
