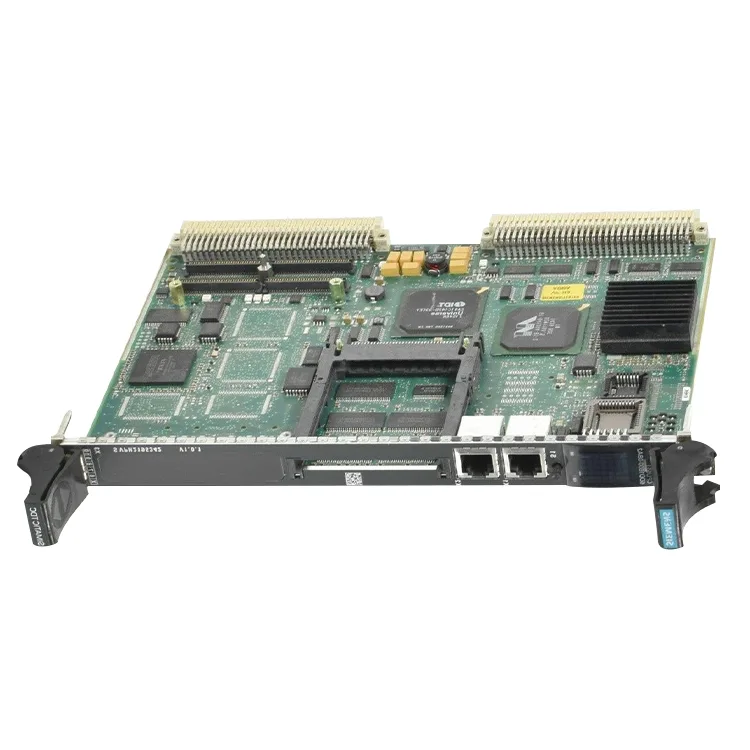

Siemens Processor 6DD1600-0BA2
Siemens 6DD1600-0BA2 Processor. For SIMATIC TDC. Supplied with full traceability and documentation. Request a quote and current availability today. Get a quote.…
Quoted price from our sales team
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6DD1600-0BA2 |
| Official Product Name | SIMATIC TDC CPU551 Processor Module (64-bit, with digital inputs) |
| Applicable System | SIMATIC TDC (platform succeeding SIMADYN D) |
| Product Type | Processor / CPU Module |
| Equivalent Standard | N/A (spare part; successor 6DD1600-0BA3 available) |
| Product Status | In Stock (Siemens spare part; article discontinued) |
| Processor | 64-bit |
| On-board I/O | Digital inputs |
| System Bus | SIMATIC TDC backplane / L bus |
| Engineering Software | Siemens D7-SYS (CFC / SFC) |
| Compatibility | SIMATIC TDC rack; SIMADYN D / TDC 6DD16xx family |
| Successor | 6DD1600-0BA3 |
| Packaging Dimensions (L x W x H) | 29.8 x 23.1 x 4.3 cm |
| Country of Origin | Germany |
| Module Type | SIMATIC TDC CPU551 processor module |
Product Description
SIMATIC TDC is the technology and drives control system that succeeded the earlier SIMADYN D generation, and 6DD16xx modules are used where fast, deterministic processing of closed-loop and drive tasks is required. The CPU551 executes cyclic and interrupt-driven programs and is engineered with the Siemens D7-SYS toolset. Siemens supplies this article as a spare part and lists it as discontinued, naming the 6DD1600-0BA3 as the successor, so stock availability should be confirmed before ordering. The Siemens 6DD1600-0BA2 is the SIMATIC TDC CPU551, a 64-bit processor module with integrated digital inputs for the SIMATIC TDC high-performance automation platform.
Basic Product Information
- Integrated digital inputs for fast on-board signal capture
- Designed for deterministic closed-loop, drive and technology control tasks in TDC racks
- Engineered and configured with the Siemens D7-SYS engineering software (CFC/SFC)
- Belongs to the SIMATIC TDC / SIMADYN D 6DD16xx module and submodule family
- Supplied as a Siemens spare part; the 6DD1600-0BA3 is the named successor
- 64-bit processor module CPU551 for the SIMATIC TDC automation platform
Technical Specifications
Version & Model Difference
The 6DD1600-0BA2 is the SIMATIC TDC CPU551 processor module; Siemens has discontinued the article and names the 6DD1600-0BA3 as the successor. It belongs to the 6DD16xx module family used in SIMATIC TDC, the platform that followed SIMADYN D, so when replacing an existing module the exact order number and rack compatibility should be checked. Detailed memory and cycle-time data for the specific firmware version are available on request.
Application Scenarios
- Metal and rolling mill drive control
- High-speed process and closed-loop control
- Power generation and turbine auxiliary control
- Retrofit of existing SIMATIC TDC / SIMADYN D installations
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What is the 6DD1600-0BA2?
It is the SIMATIC TDC CPU551, a 64-bit processor module with digital inputs used in the SIMATIC TDC automation platform.
Is the 6DD1600-0BA2 a SIMADYN D module?
It belongs to the 6DD16xx module family used in SIMATIC TDC, the platform that succeeded SIMADYN D; the exact module should be verified against your existing rack before ordering.
Is there a successor?
Yes, Siemens lists the 6DD1600-0BA3 as the successor. Compatibility should be checked against the existing configuration and firmware.
Is the module still available?
Siemens has discontinued this article and supplies it as a spare part. Availability depends on stock, so the order number should be confirmed with us before purchase.
